USED 2007 NAKAMURA-TOME WT-300
Overview

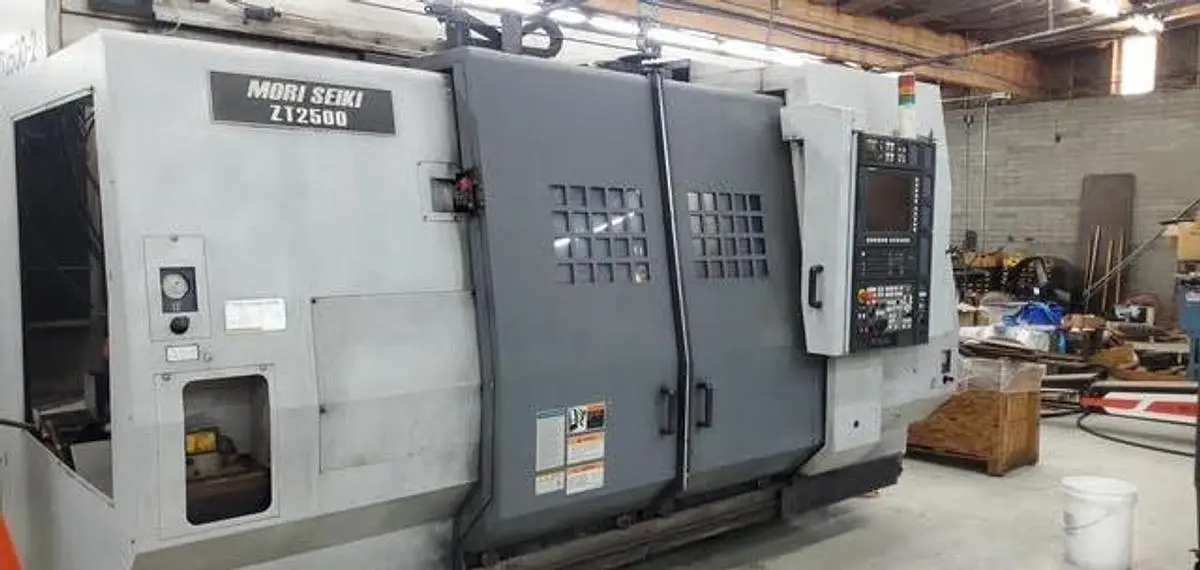

Mori Seiki ZT2500Y CNC Turning Center, 2007 – Y Axis, Live Tooling, Twin Turret, Twin Spindle 2007
Max. Swing Over Bed: 27.7″
Max. Swing Over Cross Slide: 16.5″
Max. Distance Between Centers: 51.2″
Max. Turning Diameter: 15.3″ (Main) / 14.1″ (Secondary)
Standard Turning Diameter: 10.2″
Max. Turning Length: 13.7″
Spindle Speeds: 40 – 4000 RPM
Spindle Motor (30 Min. / Continuous): 30 / 25 HP
Spindle Through Hole: 3.5″
Spindle Bearing Inner Diameter: 5.1″
Subspindle Travel: 38″
C-Axis Indexing: .001°
Rotary Tool Spindle Speed: 4,000 RPM
X-Axis Travel (Turret 1 / Turret 2): 11″ / 7.9″
Y-Axis Travel (Upper Turret Only): +/- 2.8″
Z-Axis Travel (Turret 1 & Turret 2): 37.8″
Specs
Max. Swing Over Bed: 27.7″
Max. Distance Between Centers: 51.2″
Max. Turning Length: 13.7″
Spindle Through Hole: 3.5″
C-Axis Indexing: .001°
Spindle Speeds: 40 – 4000 RPM
