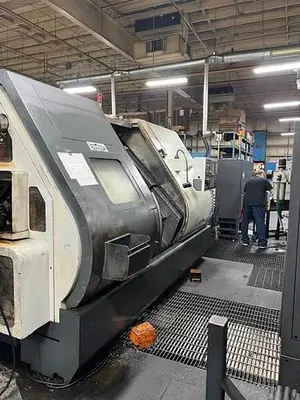

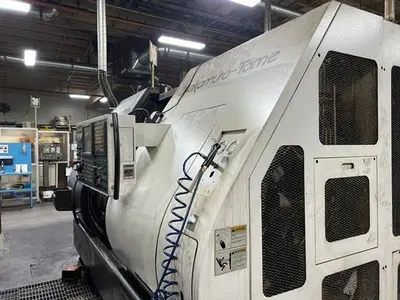

USED 2005 NAKAMURA-TOME WT-300

Nakamura-tome WT-300 - Horizontal Lathe 2005
Year  2005

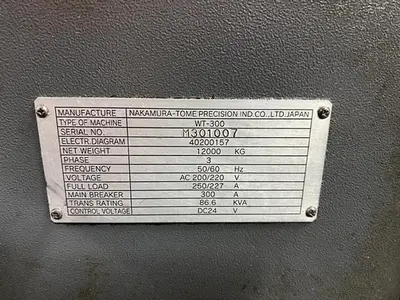

S/N M301007
Control Type  Fanuc 18i-TB
# Axis  8
Swing  12.2"
Turning Diameter  10.6"
Center Distance  43.3"
Chuck Size  10"
Bar Capacity  2.56"
X Axis Travel  7.4"
X2 Travel  7.7"
Z Axis Travel  30.7"
Z2 Travel  30.7"
Y Axis Travel  +/-2.4"
B Axis Travel (Sub Spindle)  33.5"
C1/C2 Axis Index  0.001°
Spindle Nose  A2-8
Spindle Speed (RPM)  3,500
Main Motor  25 HP
Sub Spindle  yes
Sub Spindle Chuck  8"
Sub Spindle Bar Capacity  2.5
Sub Spindle Nose  A2-6
Sub Spindle Speed 4,500 rpm
Sub Spindle Motor (HP)  25 hp
Y Axis  yes
Live Tooling  yes
Live Tooling Speed  6,000 rpm
Live Tooling Motor  7.5 hp

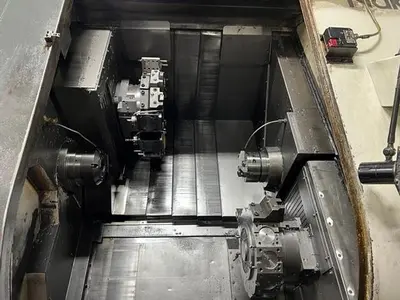

Turret Capacity  24 Upper / 24 Lower
Dimensions  166" x 100" x 89 "
Weight  31,000 pounds


EQUIPPED WITH:

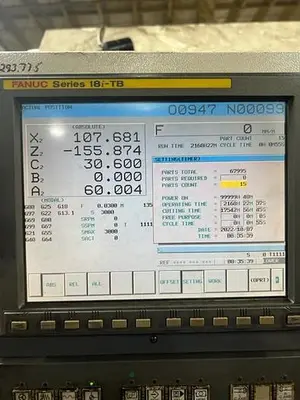

- Fanuc 18i-TB CNC Control
- Collet Chuck on Main Spindle
- Coolant Tank

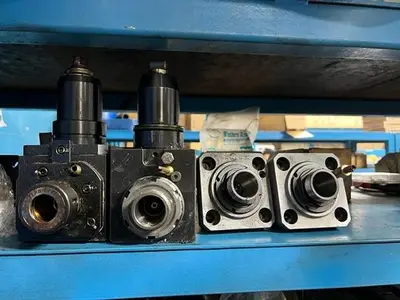

- Live Tooling
- Full C axis on Main & Sub Spindle
- Y Axis on Upper Turret
- Parts Catcher
- Manual Guide i

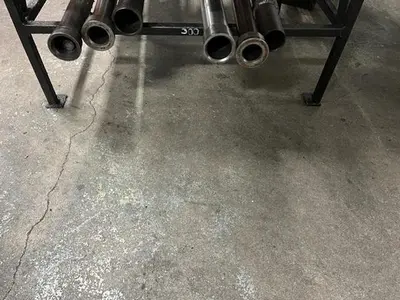

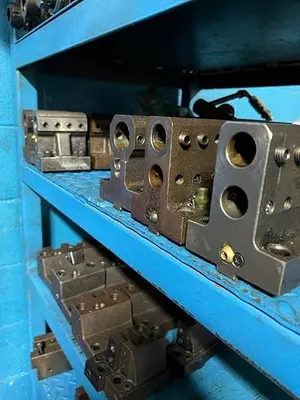

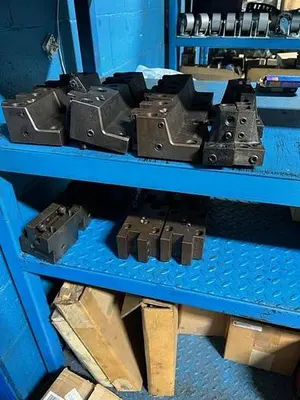

- Misc. Tooling Available
