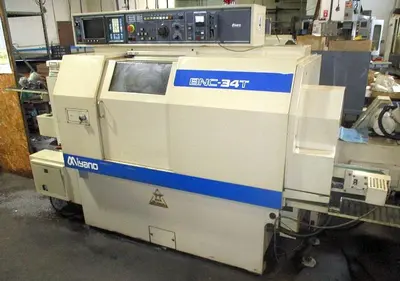

USED 1994 MIYANO BNC-34T

The 1994 MIYANO BNC-34T is a reliable used CNC lathe equipped with Fanuc OT-C CNC control. It supports a range of machining capabilities, thanks to its two 6-station turrets and programmable end working turret, allowing for three-axis simultaneous cutting. With heavy-duty slant bed construction, a programmable part catcher, and a chip conveyor, it offers durability and efficiency in operations.

Key features include a maximum bar capacity of 1-5/16 inches, a maximum turning diameter of 4-3/4 inches, and a maximum part length of 7-7/8 inches. The machine's spindle speed ranges from 170 to 5000 RPM, powered by a 10 HP spindle drive motor. Its compact design has dimensions of 59 inches by 100 inches and a height of 67 inches, with a weight of approximately 6,200 pounds, excluding the bar feeder.

This lathe is also equipped with a coolant system and comes with both a 6-inch chuck and collet chuck, enhancing its versatility. It's an ideal choice for operations requiring precision and consistency, supported by a robust RS232 port for DNC system integration.

MIYANO  BNC-34T 1994

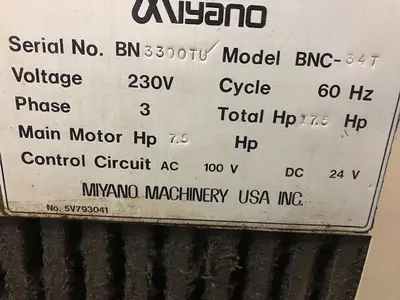

Model BNC-34T, serial  BN-3300TU

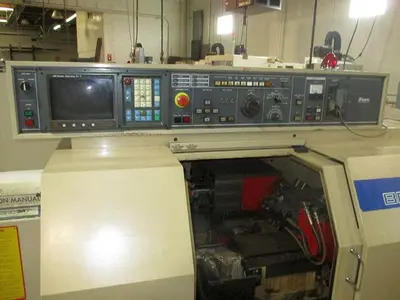

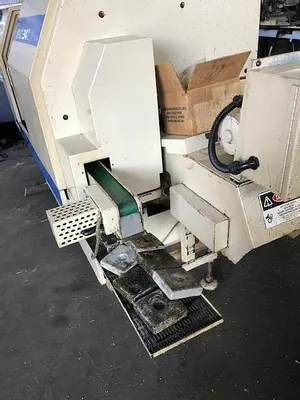

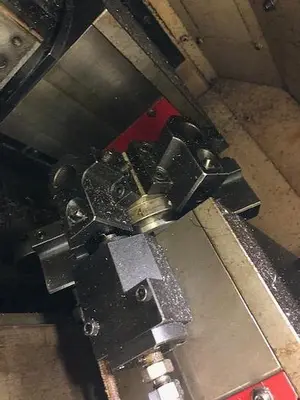

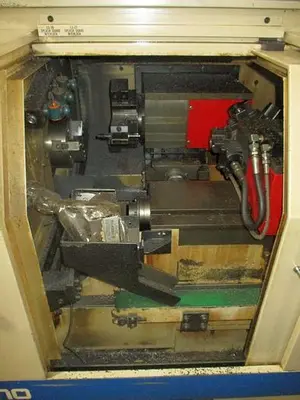

EQUIPPED WITH:  Fanuc OT-C CNC Control with CRT, RS232 Port for DNC System, Spindle Load Meter,(2) 6 Station Turrets, Programmable End Working Turret Provides 3 Axis Simultaneous Cutting Capability, , Programmable Part Catcher w/ Parts Conveyor, Heavy Duty Slant Bed Construction, Chip Conveyor,

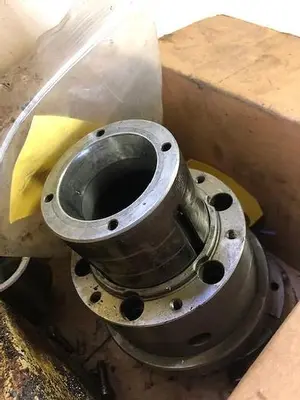

Coolant System. 6"chuck and collet chuck
CATALOGUE SPECIFICATIONS:
Max Bar Capacity.......................................... 1-5/16"
Max Swing over the Cross Slide............................ 10.62"
Max Part Length........................................... 7-7/8"
Max Turning Diameter...................................... 4-3/4"
Cross Travel (X-Axis)..................................... 3-7/8"
Longitudinal Travel (Z-Axis).............................. 11-3/8"
Number of Turrets......................................... 2
Turret Positions.......................................... 6 Each
Spindle Speed Range....................................... 170-5000RPM
Spindle Drive Motor....................................... 10 HP
Approximate Machine Dimension(w/o Barfeeder).............. 59" x 100"
Approximate Machine Height................................ 67"
Approximate Machine Weight................................ 6,200 LBS
