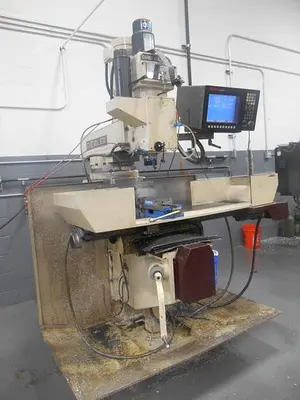

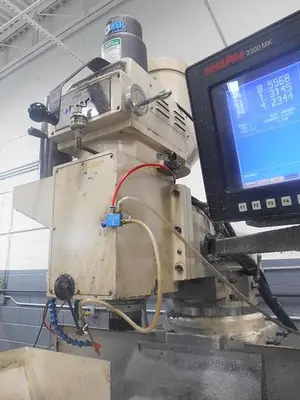

USED 2001 CHEVALIER FM-43H

Chevalier CNC 3-Axis Vertical Milling Machine

Model:  FM-43H
Serial number:  FC 887001
New 2001 (estimated)

SPECIFICATIONS:   (Note:  These specs are subject to verification by purchaser)

Table size:  10” x 54”
Knee adjustment (manual) up/down:  18-1/2” adjustment
CAT 40 Spindle taper with power draw bar
3,600 RPM Maximum Spindle Speed
5 HP Main Motor on Spindle
X Axis programmable travel:  34”
Y Axis programmable travel:  15”
Z Axis programmable travel quill travel:  5”
Full 3-axis contouring capability
USB Port for downloads
Anilam 3300MK CNC Control with color monitor.
