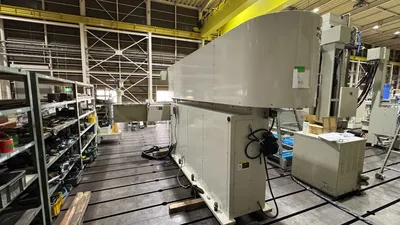

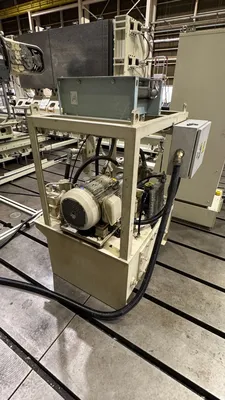

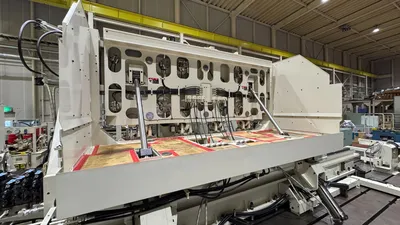

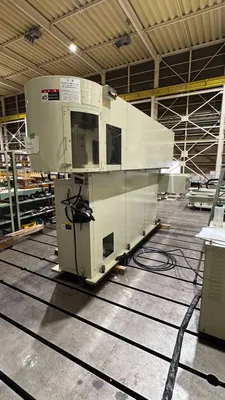

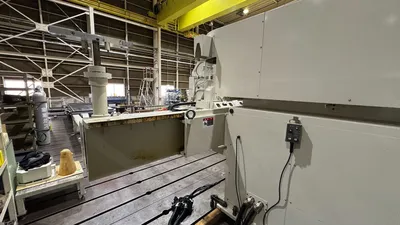

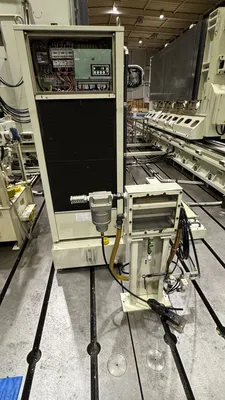

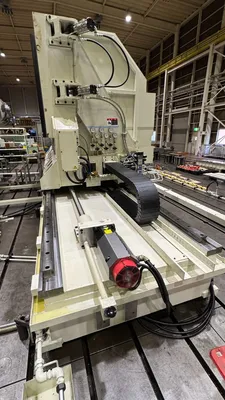

USED 2014 SNK HPS-120B

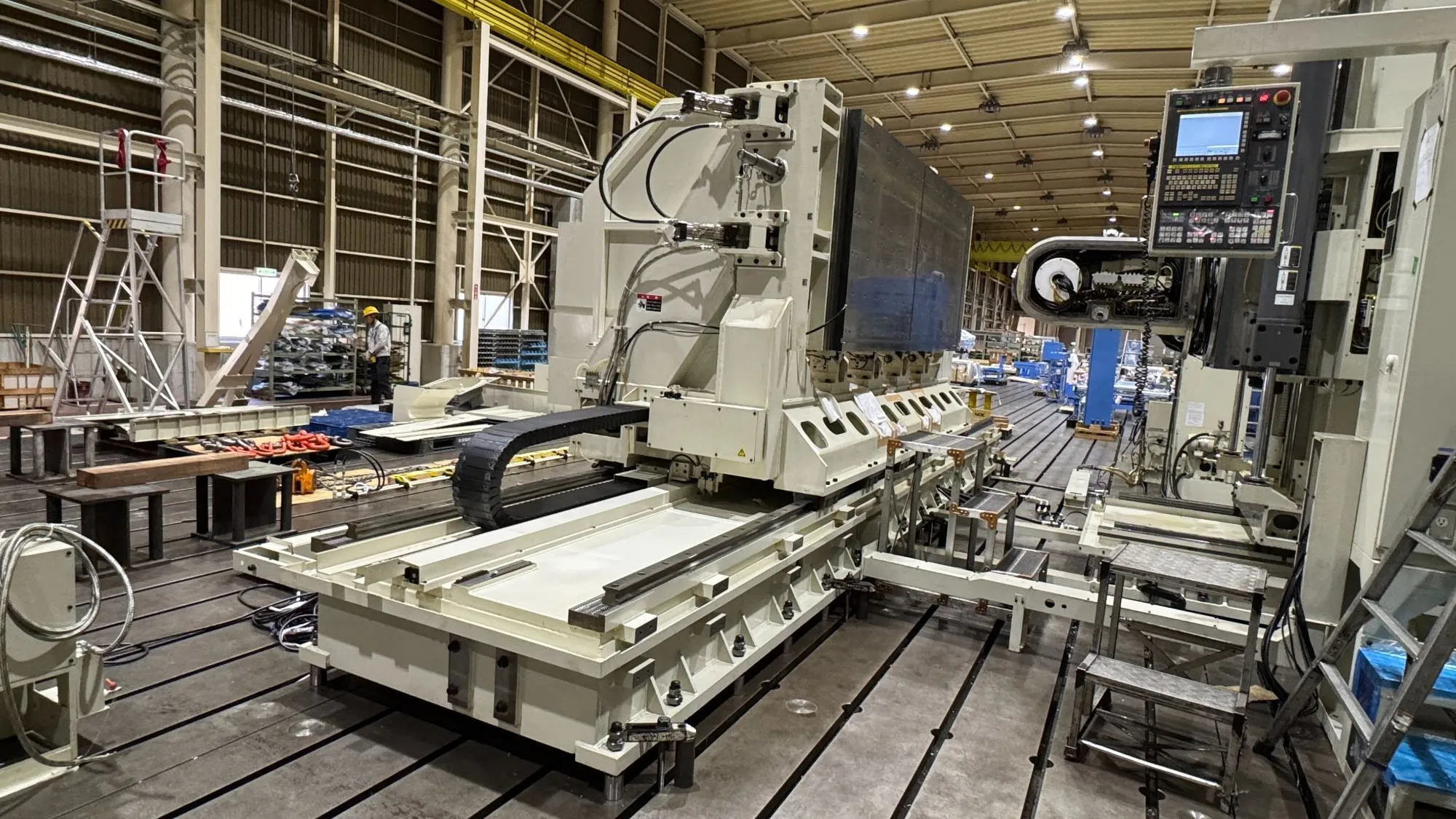

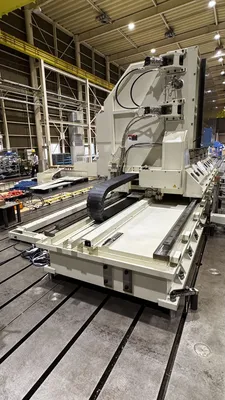

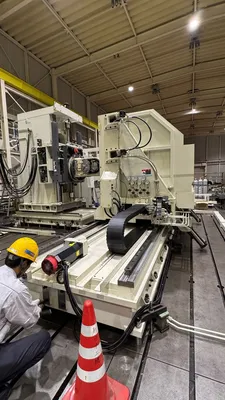

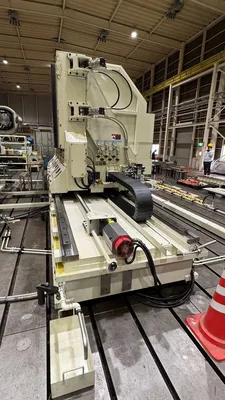

REBUILT in 2026-SNK HPS-120B Horizontal Machining Center, 5-axis profiling HMC primarily used in aerospace applications. Travels: X 124", Y 51.96", Z 28.03". 73.8 hp, 15,000 RPM, BT50, 60 ATC. Rebuilt and replaced parts: slip ring removal, feedback, TCP-KCP, sliding covers, lighting, cables, splash covers, and added platform.

Machine specifications
Travels :
Pallet longitudinal X-axis 124.0 inch (3,150 mm)
Spindle head vertical Y-axis 51.9 inch (1,320 mm)
Column transverse Z-axis 28.0 inch (712 mm)
Spindle head tilt A-axis 180 deg. (+/- 90 deg.)
Spindle head rotation C-axis 540 deg. (+/- 270 deg.)

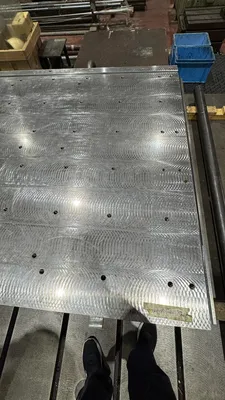

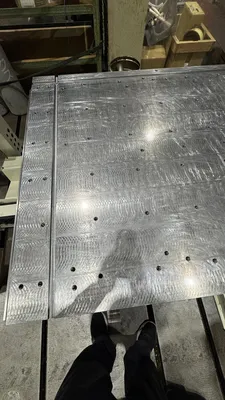

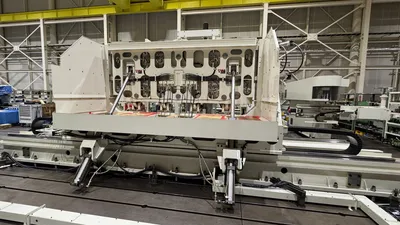

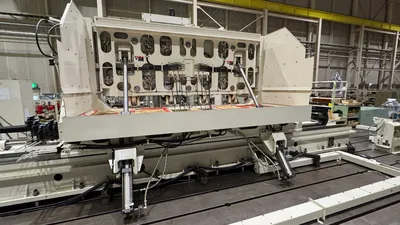

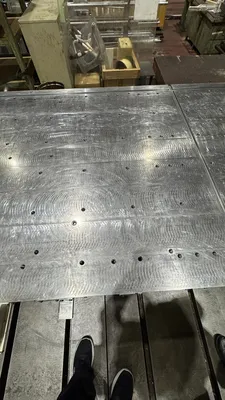

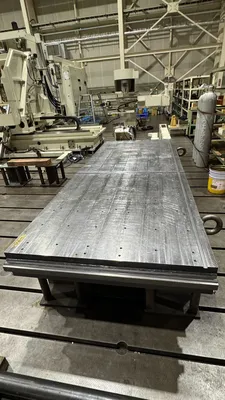

Table (Pallet) :

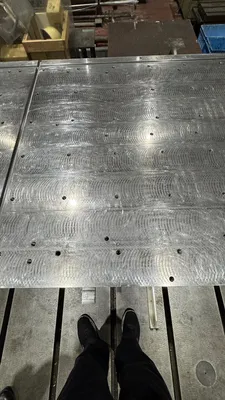

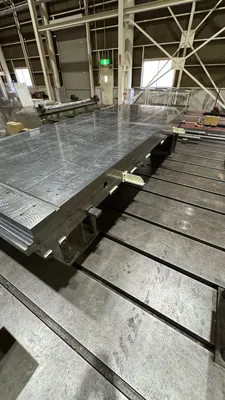

Workpiece mounting surface size 48 x 120 inch (1,220 x 3,048 mm)
Max loading capacity 8,800 lbs (4,000 kg)
Number of pallet 2 pieces
Feedrate :
Rapid feedrate X-axis 944 IPM (24m/min)
Y-axis 944 IPM (24m/min)
Z-axis 944 IPM (24m/min)
A-axis 7,200 dpm
C-axis 7,200 dpm
Rapid feedrate X-axis 944 IPM (24m/min)
Y-axis 944 IPM (24m/min)
Z-axis 944 IPM (24m/min)
A-axis 7,200 dpm
C-axis 7,200 dpm

Spindle :
Speed range 150 to 15,000 rpm
nose shape BT50 (BIG-plus double face contact)
Motor power (25%ED / cont) 74 / 67 HP (55 / 50 kW)
Max torque (25%ED / cont) 258 / 141 lb-ft (350 / 191 Nm)

1. Removed broken slip ring at C-axis
2. Scale feed back added to Z-axis
3. TCP-KCP added

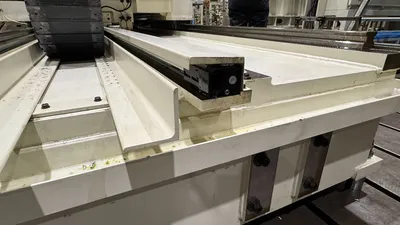

4. Replaced X-axis sliding covers
5. Added platform in front of pallet changer
6. Lighting fix, cable fix, splash cover fix.
7. Cleaning

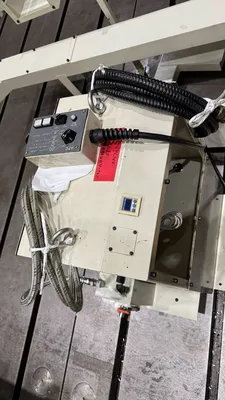

1. Removed broken slip ring at C-axis:
For a reliable machine operation, SNK Japan removed the broken
slip ring from C-axis mechanism and rewired without slip
ring. Although the C-axis travel has been limited to
+/- 270 degree, the machine can perform a stable machining
without a risk of slip ring failure.

2. Scale feedback added to Z-axis:
SNK Japan added scale feedback to the Z-axis.

3. TCP-KCP:
SNK Japan added TCP-KCP. It is a function dynamically
compensates for tool edge position errors that occur during
FANUC 5-axis tool center point control (TCP) operation to
improve tool edge positioning accuracy. By correcting in real
time the tool edge position error that occurs during 5-axis
tool center point control (TCP) operation due to slight
mechanical errors during rotation (B and C-axis), the machining
position accuracy of the X, Y, and Z-axis and the
position accuracy of the opposing holes are improved. In
addition, machining position accuracy during continuous
5-axis machining is also improved, making it effective for
aerospace workpieces.

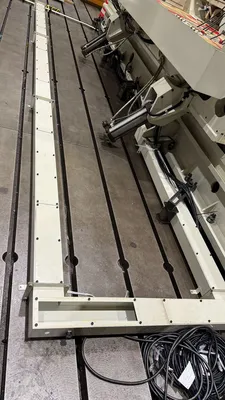

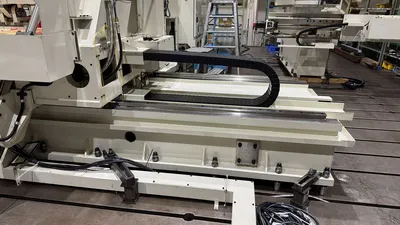

4. Replaced X-axis sliding covers, Broken X-axis sliding cover
has been replaced.

5. Added platform in front of pallet changer:
Platform has been added in front of pallet changer for safety
operation During the workpiece setup. (The original customer
had a large platform that is shared with multiple machines).

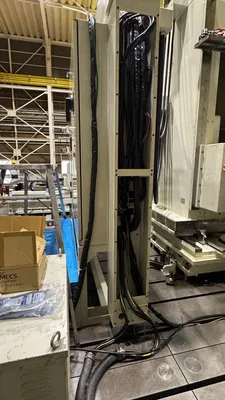

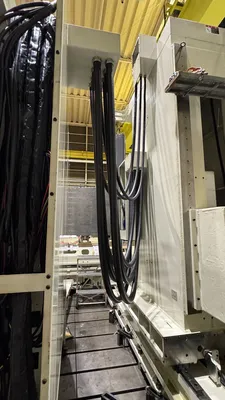

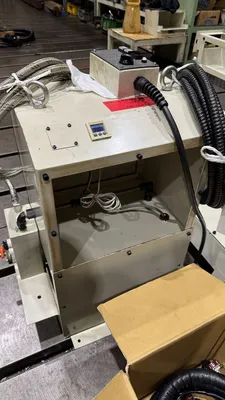

6. Lighting fix, cable fix, splash cover fix:
Broken lighting equipment, cable, polycarbonate window have bee
n fixed. Covers such as splash guard
have also been repaired to be functional.

7. Machine thoroughly cleaned, but not repainted, to keep cost down.
