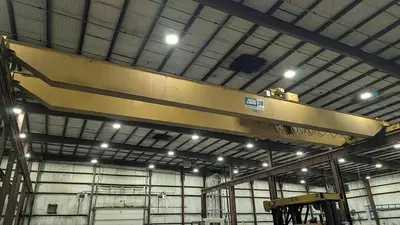

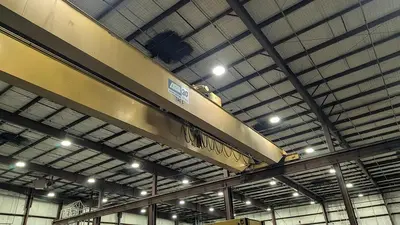

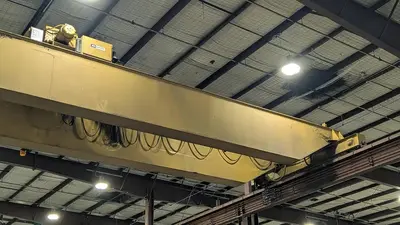

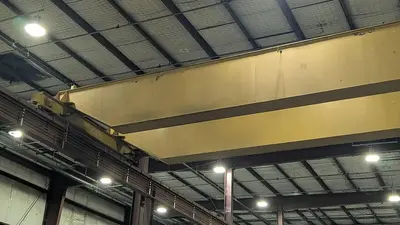

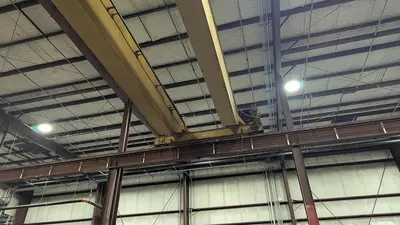

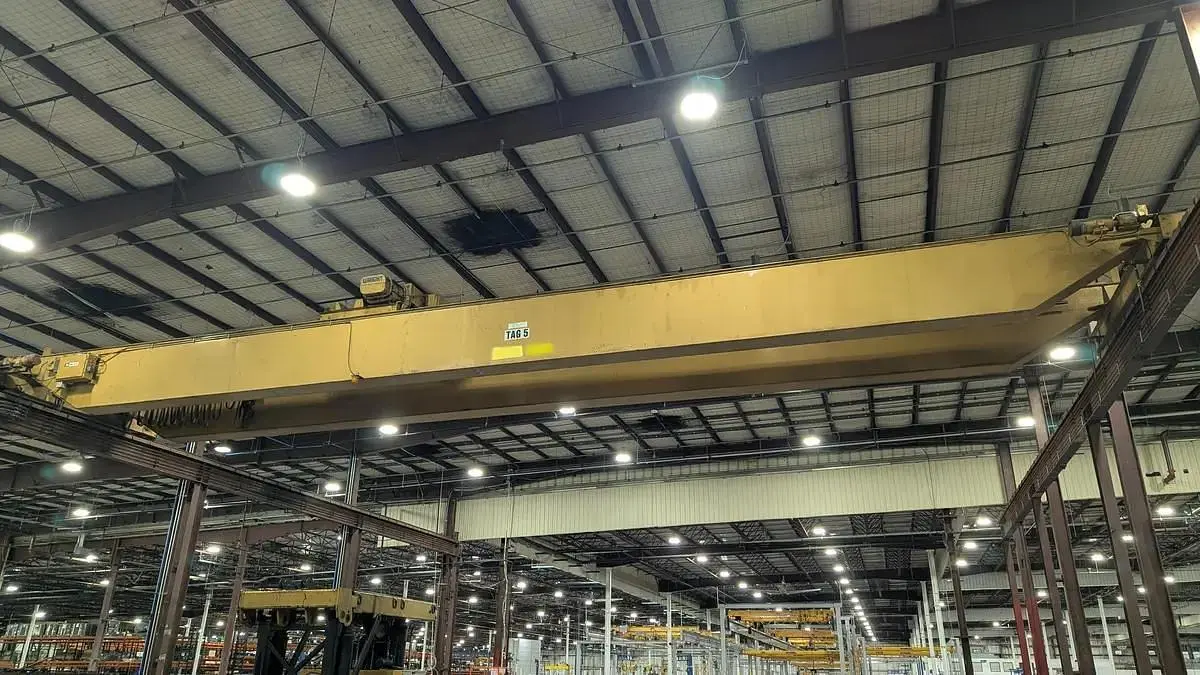

30 Ton ACCO Wright Top Running Bridge Crane

Specifications:
Manufacturer: Acco Wright
Capacity: 30 Tons
Span: 72’ 0”
Available Lift: 29’
Class: D
Crane Headroom: 71”
Wheelbase: 156”
Overall End Truck Length: 185”
Controls: Radio
Electrical: 460 Volt / 3 Phase / 60 Cycle
Bridge Speed: Approx. 80 FPM Max, VFD
Bridge Drives: 4 HP x 2
Trolley Speed: Approx. 60 FPM Max, VFD
Trolley Drive: 1.5 HP
Hoist Speed: 10 FPM Max, VFD
Hoist Motor: 20 HP
Status: Taken Down
Steel Support System Specifications:
Runway Length: 150’ Each Side
Runway Size: W24 x 76 With C15 x 33.9
Runway Piece Length: 25’
Support Spacing: 25’
Rail: 60 Lb.
Column Height: 23’ 2”
Column Size: W10 x 33
Floor To Rail Height: 25’ 6”
Includes:
Hook Bolts And Splice Joints Included With Steel
Loading Included In Price
Not Included:
Conductor Bar
