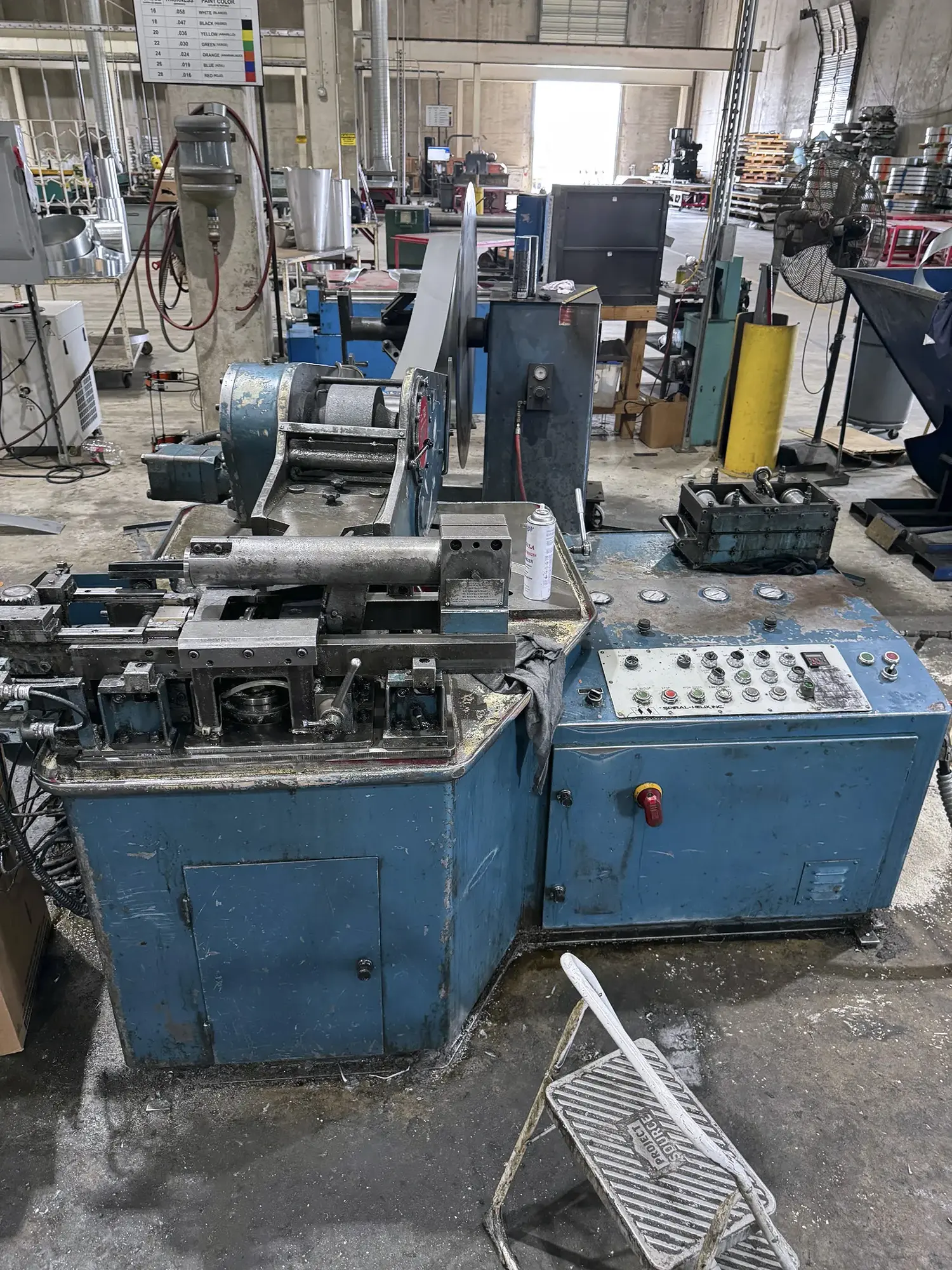

USED 2003 SPIRAL HELIX 200 - H TUBEFORMER

Full Head Package| 255 FPM Line Speed
Spiral Helix 200 H Tubeformer (2003) is a reliable industrial machine for producing high-quality round spiral ducts from metal strip. Ideal for HVAC duct fabrication, mining ventilation, industrial jacketing, and void forming, it delivers strong, rigid, and durable ducting. A proven solution for efficient, high-volume duct production in demanding environments.

Minimum Tube Diameter: 4" (102 mm)
Maximum Tube Diameter: : 102" (2591 mm)
Minimum Material Thickness: 30ga (1/64", 0.30 mm)
Maximum Material Thickness: 14ga (5/64", 1.85 mm)
Line Speed: 80–255 ft/min (24.4–77.7 m/min)
Main Motor: 10 HP (7.46 kW)
Max Coil OD: 48" (1219 mm)
Coil ID: 20" (508 mm)
Max Coil Weight: 2,500 lbs
Electrical Requirements: 480V, 3‑Phase
Seam Type: Butt joint spiral seam with flying crimp seam lock
Materials Supported: Galvanized Steel (G‑90/G‑60), Stainless Steel, Aluminum, Light‑Gauge Coil Stock

Over $100k Worth of Heads
Heavy Duty Tooling Set
Light Duty Tooling Set
Quick change head mount system
Form Roll Unit 1/3
Form Roll Unit No. 4
Flying Crimper Assembly
Flying Slitter Assembly
Vertical Decoiler
Complete Power Roller Feed System

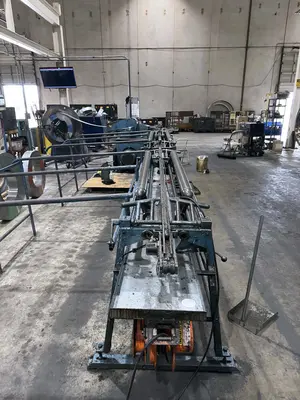

Adjustable Guide Rails
Digital Tube Length Control: **Does not function properly**

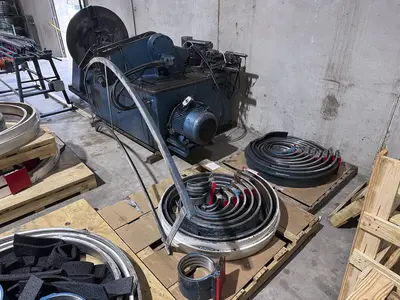

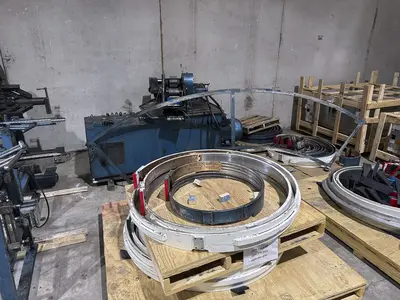

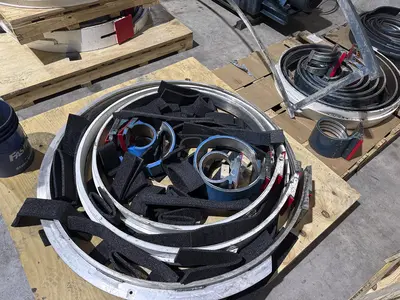

Full Head Package: 4" - 5" - 6" - 7" - 8" - 9" - 10" - 12" - 13" - 14" - 15" - 16" - 18" - 20" - 22" - 24" - 26" - 28" - 30" - 32" - 34" - 36" - 38" - 40" - 42" - 44" - 46" - 48" - 50" - 52" - 54" - 56" - 66" - 76"
