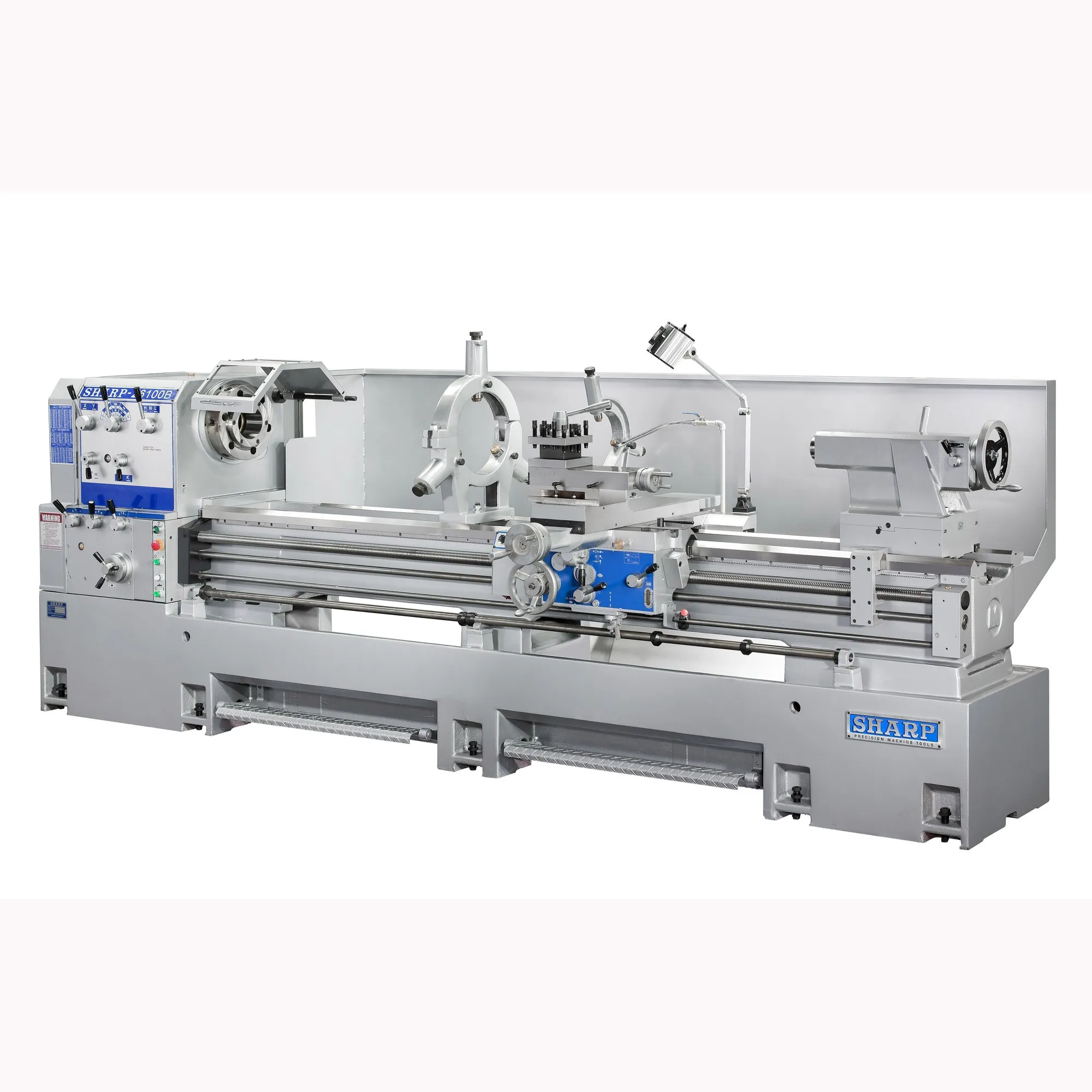

NEW 2023 SHARP 26120B

SPECIFICATIONS:
Capacity
Swing Over Bed 26”
Swing Over Cross Slide 17- 1/3”
Center Height 13”
Swing Over Gap 35”
Distance Between Centers 120”
Weight Between Centers 3,084 lbs.
Headstock
Spindle Nose Type D1-11 camlock
Spindle Bore 4.5”
Spindle Speeds (12) 10-1,000 rpm
Taper of Spindle Bore MT#7
Taper of Center MT#5
Threads and Feeds
Longitudinal Feeds – in/rev (18) 0.0022 - 0.032”
Cross Feeds – in / rev {#} 0.0026 –0.035” {17}
Inch Threads (#) 2-56 tpi {44}
Metric and Module Threads {#} 0.5-14mm {24}
D.P. Threads (36) 4-56 mm
Leadscrew Pitch, Diameter 4 tpi, 1-1/2”
Carriage
Cross Slide Travel 14.75”
Compound Rest Travel 8”
Compound Width 6”
Bed
Bed Length
Bed Width 15-3/4”
Tailstock
Quill Travel (graduated) 6-1/2”
Quill Diameter 3”
Quill Taper MT#5
General
Spindle Motor (220V or 440V, 60, 3) 15 hp
Dimensions ( L x W x H) 157” x 41” x 52”
Net Weight (approx.) 7,430 LBS
Standard Color Gray
Electrical:
Voltage 230 & 460
Phase 3 phase
