NEW MORI SEIKI MT4000B/4000
Overview
Description

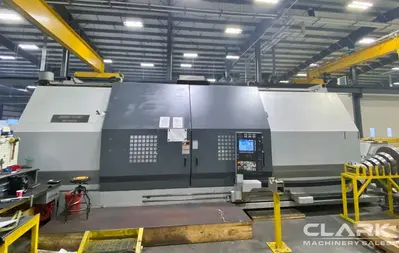

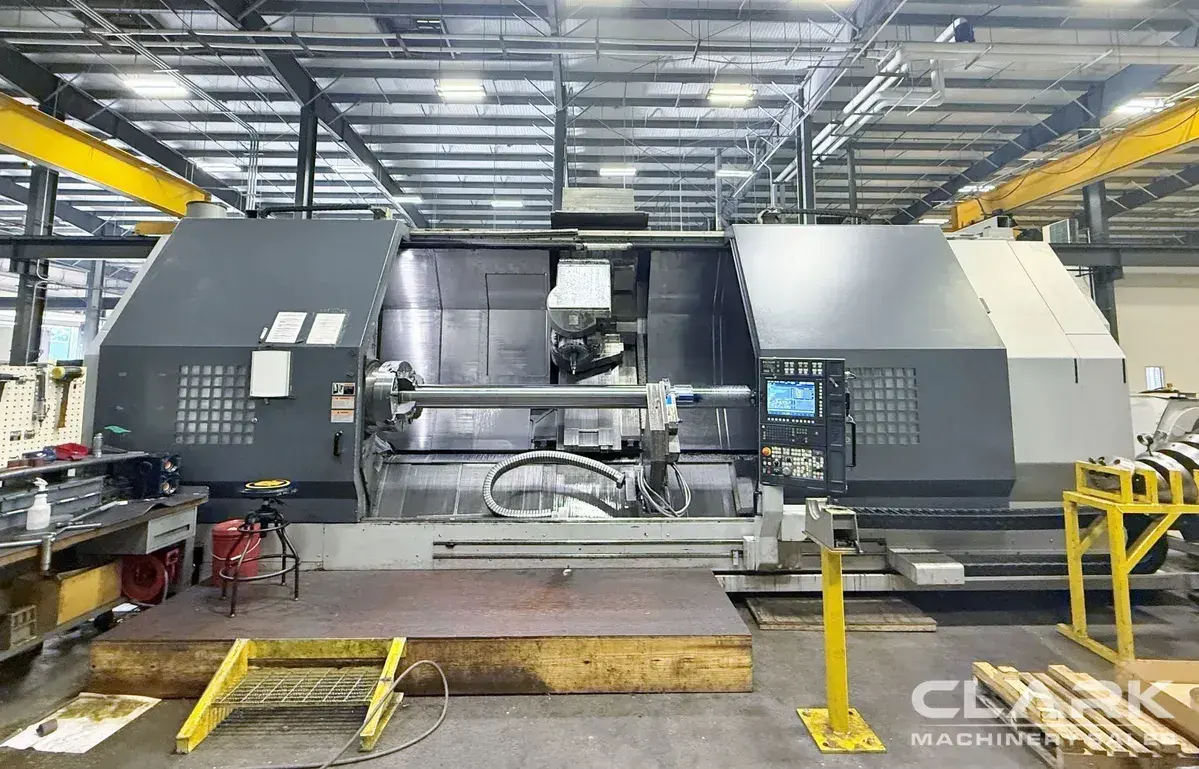

2007 MORI SEIKI MT 4000V/3000, B AXIS Mill/Turn, w/10.8" Bore, Max Cut Dia 37" x 120" CC
Specifications
| Swing | 37" | 939.8 mm |
|---|---|---|
| Machining Length | 181.89" | 4,620 mm |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 6.45" | 163.83 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 37" | 939.8 mm |
| Tailstock | Yes | Yes |
MAX CUTTING DIAMETER 37"
MAX CUTTING LENGTH 120"
X-AXIS TRAVEL 39.6"
Y-AXIS Yes
Y-AXIS TRAVEL 11.81 (+/- 5.9")
Z-AXIS TRAVEL 124"
CHUCK SIZE 24"
SPINDLE BORE 10.8"
SPINDLE NOSE A1-20
SPINDLE MOTOR 50 hp
SPINDLE SPEED 1,000 RPM
RAPID TRAVERSE RATE - X-AXIS 944 in/min.
RAPID TRAVERSE RATE - Y-AXIS 944 in/min.
RAPID TRAVERSE RATE - Z-AXIS 787 in/min.
B-AXIS SPINDLE MOTOR 20 hp
B-AXIS MILLING SPEED 6,000 RPM
B-AXIS SPINDLE TAPER CAPTO C8
B-AXIS TOOL POSITIONS 120
B-AXIS TRAVEL -120 DEGREES/+105 DEGREES
Weight 95000
Equipped With
COMPLETELY REBUILT MILLING SPINDLE IN 2023

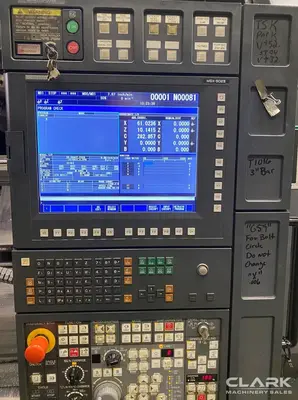

MORI SEIKI MSX-502III CONTROL

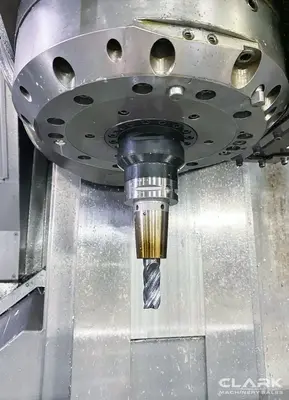

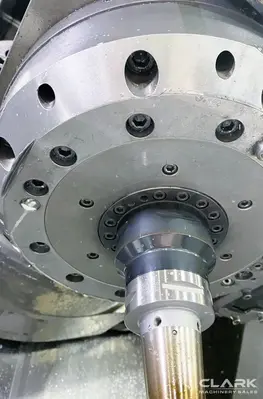

B-AXIS MILLING SPINDLE (6,000 RPM, CAPTO C8)
Y-AXIS
50 HP TURNING SPINDLE

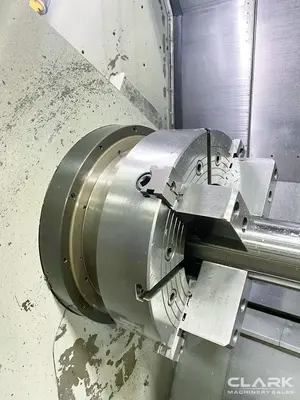

24”, 4-JAW BISON MANUAL CHUCK
10.8” SPINDLE BORE
3000MM/120” CUTTING LENGTH
120 TOOL POSITIONS

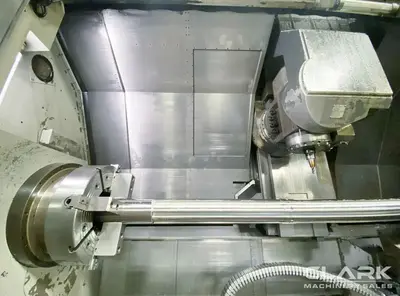

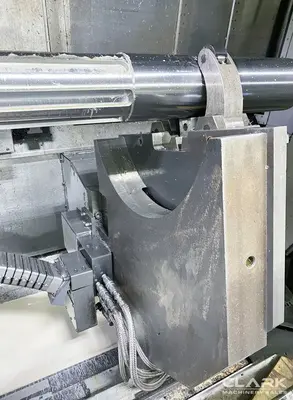

ROHM SLZ-325 HYDRAULIC STEADY REST (1.5” – 9.4” CAPACITY)
LONG BORING BAR ATTACHMENT (NEEDS REALIGNMENT)

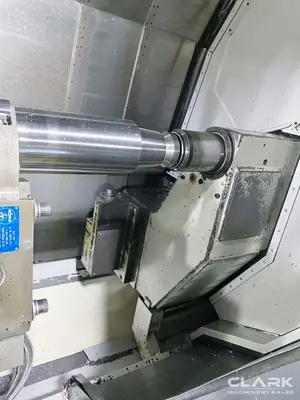

TAILSTOCK

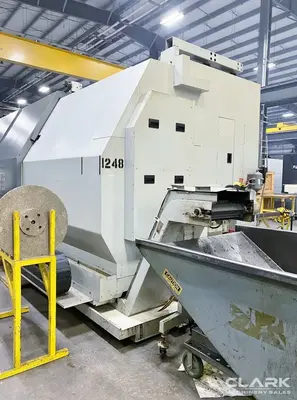

CHIP CONVEYOR

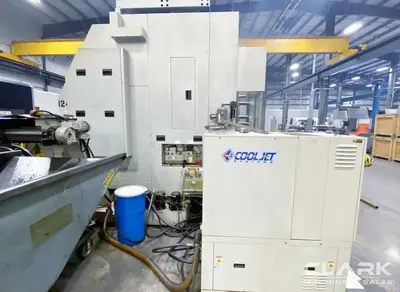

COOLJET HIGH-PRESSURE COOLANT UNIT (1,000 PSI)

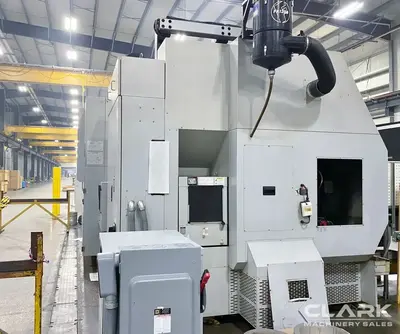

ROYAL MIST COLLECTOR (FX1200)
** MACHINE CUT PRIMARILY 4140 STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $1,000,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
**B-AXIS MILLING SPINDLE WAS SENT TO JAPAN & COMPLETELY REBUILT IN 2023
** LONG BORING BAR ATTACHMENT NEEDS TO BE REALIGNED IN ORDER TO FUNCTION
** THE MACHINE HAS ISSUES WHEN DOING WRAP MILLING. IT CANNOT MAINTAIN TOLERANCES LESS THAN .02”.
** HOWEVER, THE MILLING IS FULLY FUNCTIONAL & CAN HIT .002” TOLERANCE WITH THE C-AXIS BRAKE ENGAGED
