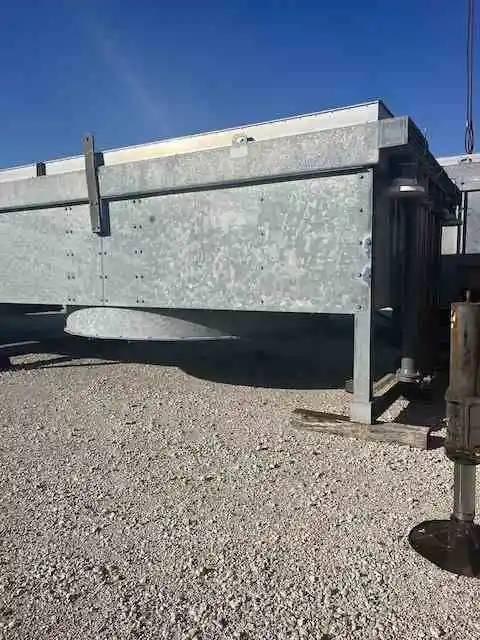

USED ECODYNE Oil-to-Air Heat Exchanger

Manufacturer: Ecodyne MRM
Type: Quench Oil-to-Air Heat Exchanger
Size: 7W-16L-2F6.0
Serial Number: 12831
Heat Exchanged: 1,250,000 BTU/hr
Tube Side: Quench Oil Temp: In 150ºF, Out 130ºF
Air Side: Quench Oil Temp: In 95ºF, Out 108.7ºF
Overall Dim’s: 17’ long x 7’5” wide x 8’4” high
Inlet/Outlet: 3” oil inlet / 2.5” oil outlet
Power: 230/460 Volts
Fans: Two (2) 6’ diameter blades, belt driven
Motors: Two (2) Super Duty Baldor/Reliance Super E, 7.5 HP / 1770 RPM
