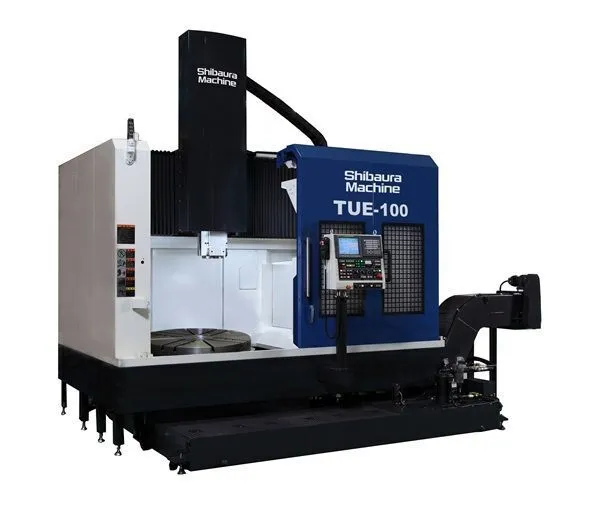

NEW TOSHIBA TUE 100S
Overview
Description
Workpieces made of various kinds of material can be machined using the TUE-100(S) Vertical Boring & Turning Mill. The TUE-100(S) Vertical Boring & Turning Mill can be machined on the wall-type column with its high rigidity and wide table speed.
Specifications
| Table Dia | 40" | 1,016 mm |
|---|---|---|
| Swing | 47.2" | 1,198.9 mm |
| Work Ht-U/R | 33.5" | 850.9 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 600 RPM | 600 RPM |
Specifications (subject to buyer verification):
Swing/Cut inch (mm): 47.2 (1,200)
Cut Height inch (mm): 33.5 (850)
X Stroke inch (mm): -20.0 ~ 29.5 (-510 ~ 750)
Z Stroke inch (mm): 31.4 (800)
Table size inch (mm): 40 (1,016)
Max. load lbs (kg): 4,400 (2,200)
Table RPM: 600
Live Spindle RPM: 3,000
ATC Tool Pod: 18
Control: FANUC 0i-TF
