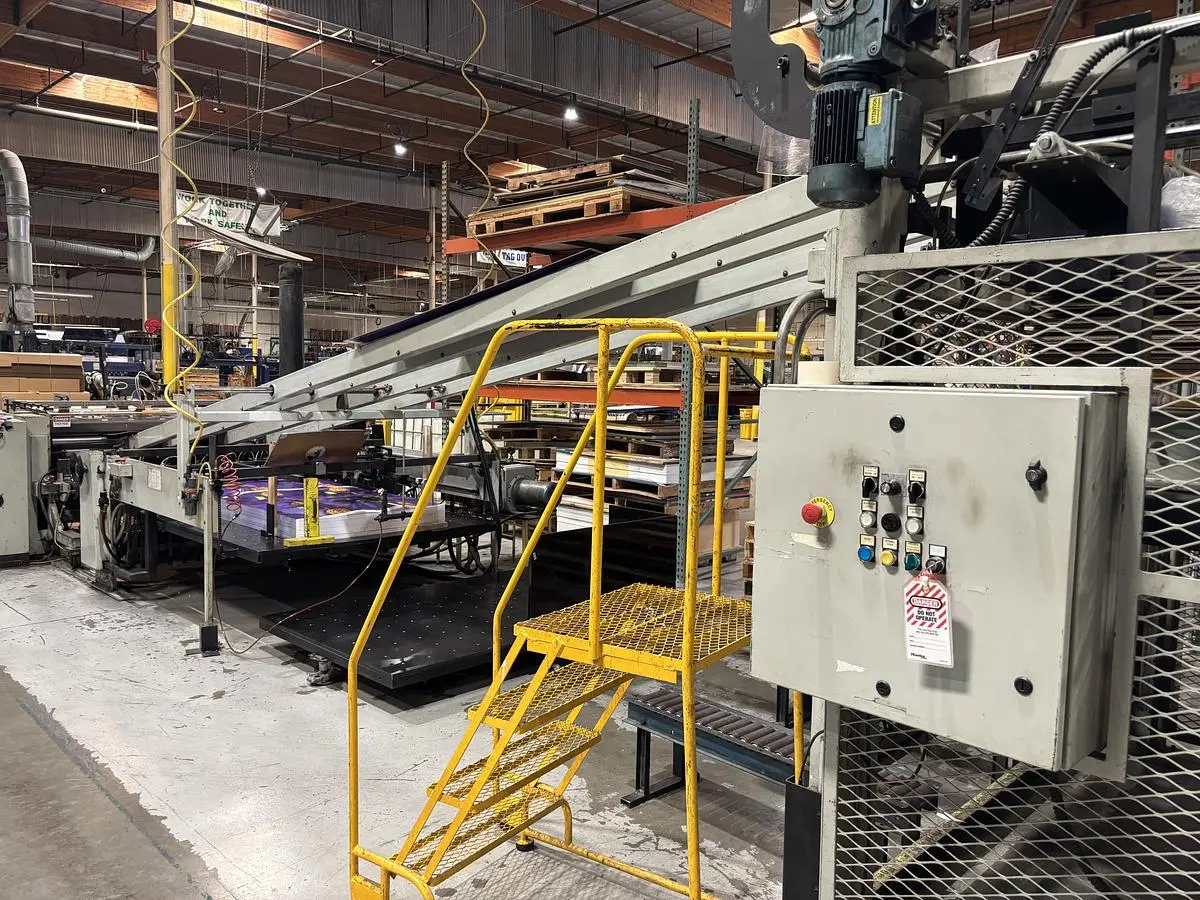

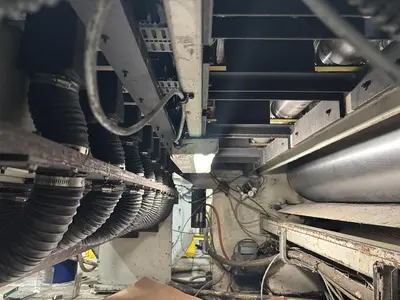

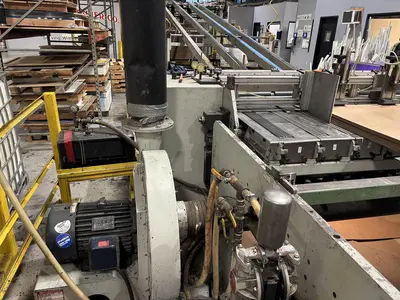

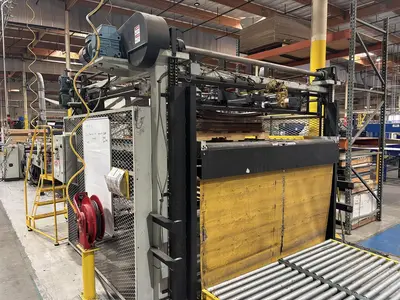

Automatan Laminator model EM, 460 volts, in operation
82” x 80” standard downstacker, non-stop & powered outfeed conveyors
Litho feed up to .024”
Touch screen control panel
Vacuum & band roll system
Board feeder
Litho sheet preload system
Lead edge litho feeder
Max sheet format: 1070 x 2300 mm / 42” x 90”,
Minimum board Size: 500x 400 mm / 19 x 15”
Maximum Board Thickness: 20 mm / 0.78”
Minimum Board Thickness: 1.5 mm / 0.59
Maximum label Size: 990 x 1650 mm / 38 X 64”
Minimum label Size: 250 x 150 mm / 9.8 x 5.9”
Maximum label Thickness: 0.600 mm
Minimum label Thickness: 0.075 mm
Overall length : 15 m / 49 feet
Overall width : 3.2 m / 10 feet
