Click on the You tube link below. It is only a 1 minute video to check out.

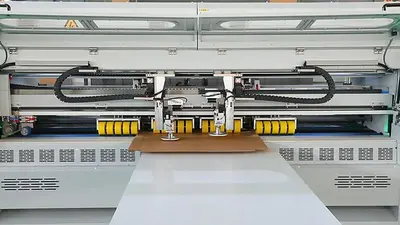

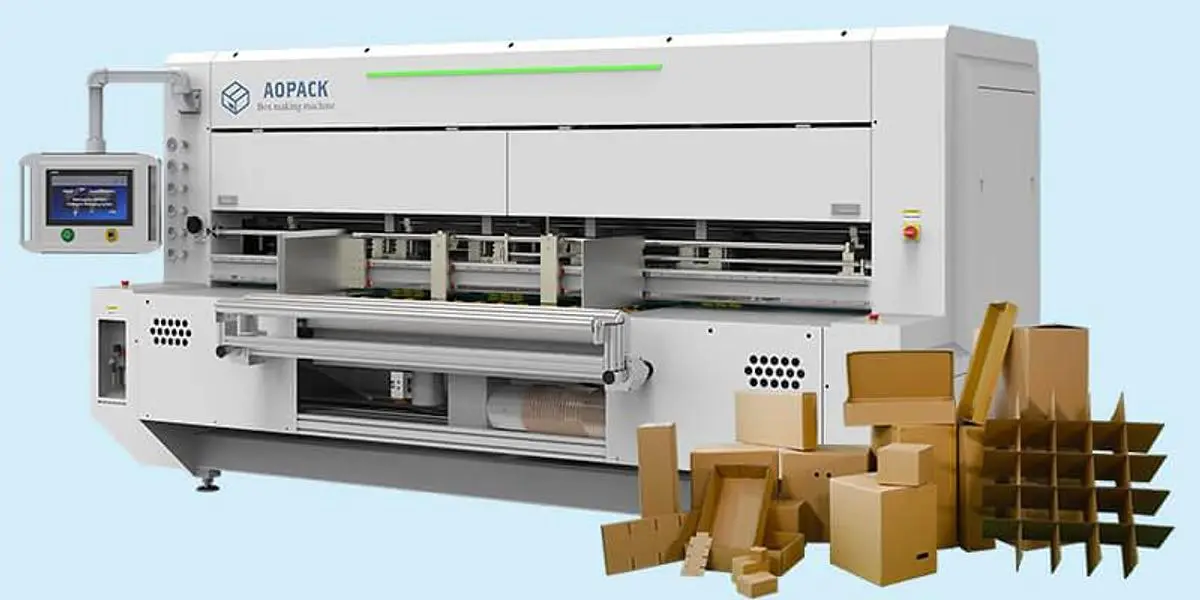

The BM 3000 HD model that can convert triple wall corrugated.
We are the North American agent for this product line. I have more videos and information if you want to see more info.
You Tube Video Link: https://youtu.be/Blef8No3awg
Heavy Duty Corrugated Box Maker Machine BM3000-HD Specification
Cardboard TypeSingle/Double/ Triple wall(AAA Heavy Duty Cardboard)
Cross Cutting Knife
Cardboard Thickness 2-16mm
Power Supply380V±10%，Max 10kW, 50/60Hz
Cardboard Gram≤2400g/m²
Air Pressure0.6-0.7Mpa
Max. Board Size3000mm Width * Unlimited Length
Dimension3820(W)* 2060(L)* 1970(H)mm
Min. Board Size300mm Width * 660mm Length
Gross WeightAppr. 4500kg
Production CapacityAppr. 10-16pcs/minute. Depends on Box Size and Style.
Handle Hole on box sides150(L)*300(W)mm
Slotting Knife2pc * 500mm Length
Glue Flap Crush√
Vertical Creasing Knife 4 (With Knife Sharpening Function)
Air Consumption90L/min
Scoring / Creasing Wheel
4+4Box Styles150+
1-6s Quick Changeover Time
Over 150 Carton Box Styles
Irregular Shape Digital Cutting
E to AAA Corrugated Flute

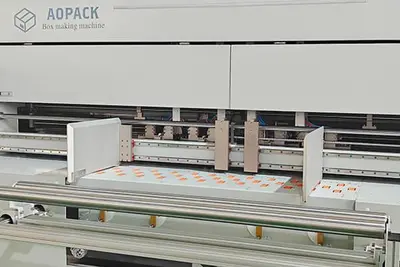

Cardboard Feeding
Sheets from E flute to AAA flute
Sheets thickness from 2mm to 16mm, Up to 2400g/sqm
Sheets width from 300mm to 3000mm

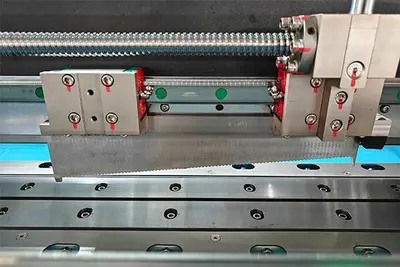

Horizontal Slotting & Scoring
Two 500mm symmetrical slotting knives
Slotting knife and creasing beam integrated design
Slotting width from 7mm to 21mm

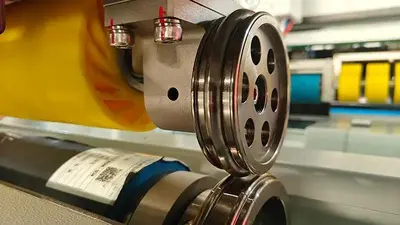

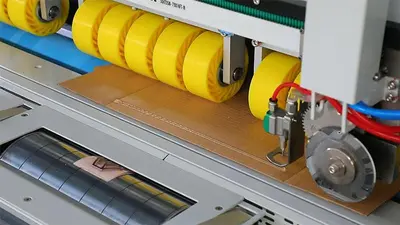

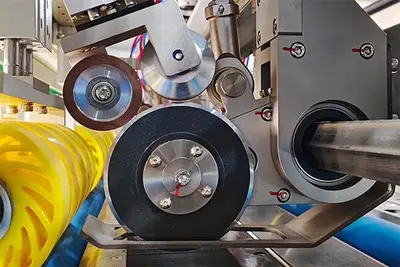

Vertical Creasing System
Scoring/Creasing wheel : 4+4
With pre-creasing wheels, the carton box is easy to fold.

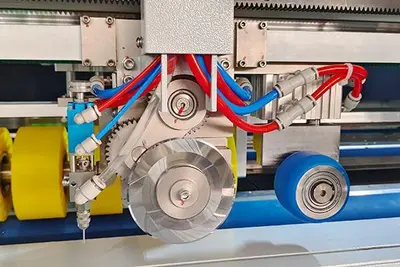

Vertical Slitting & Auto Sharpening
4 Vertical slitting knives, rotated by the servo motor to make the side of the carton box more beautiful and flat
Knife sharpening function, the slitting knife has a longer service life
Gluing, Cross Cutting, Glue Flap Crush System
Inline cold gluing auto application, no need for extra gluing machine.
Cut off extra cardboard without an additional paper separator.
The glue flap crash function makes nailing boxes more convenient.
Die Cutting System
Hand hole, vent hole, special-shaped rounded corners.
Cheap module and easy to replace
