130 Ton x 8', ETS 3000 Control, Compliment Of Dies, RJ45 Connection for DNC For Offline Programming.
| size | 130 Ton | 130 Ton |
| Tonnage | 130 T | 117.934 t |
| Type | HYD | HYD |
| Overall Length | 96" | 2.4 m |
| Between Housings | 76" | 1.9 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
| Weight | 12000 | 12000 |

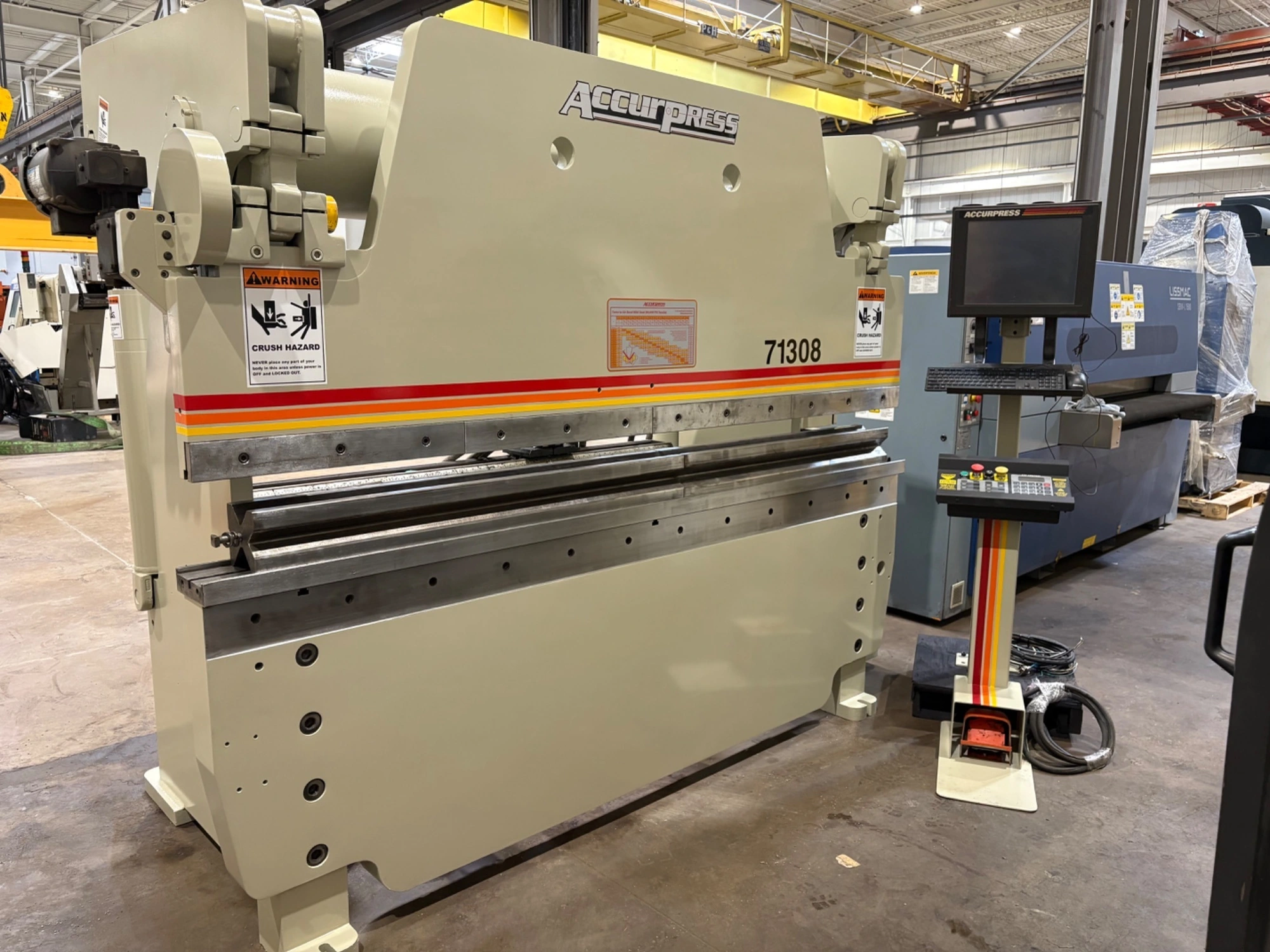

Accurpress 71308 130 Ton Hydraulic Press Brake
Tonnage 130 Tons
Length Of Bed 8'
Distance Between Frames 76"
Bed Height 34"
Bed Width 4.5"
Length Of Stroke 8"
Open Height 14"
Closed Height 6"
Throat Depth 10"
Fast Approach Speed 115"/Min.
Slow Bend 24"/Min.
Fast Return 180"/Min.
Motor 15 Hp
Approx. Shipping Weight 12,000 Lbs
2 Axis, ETS 3000 Control, 4 Way Dies, Compliment Of Dies, RJ45 for DNC For Offline Programming.
ETS 3000 single axis back gauge. The R axis hand crank in rear, Z1, Z2 fingers manually adjusted.
System Upgrade ( approx 2023 )
