Used Heat Transfer Systems Tube Reboiler/Heat Exchanger – 7062 Sq Ft, 304L SS, Vertical/Horizontal
Overview
Description

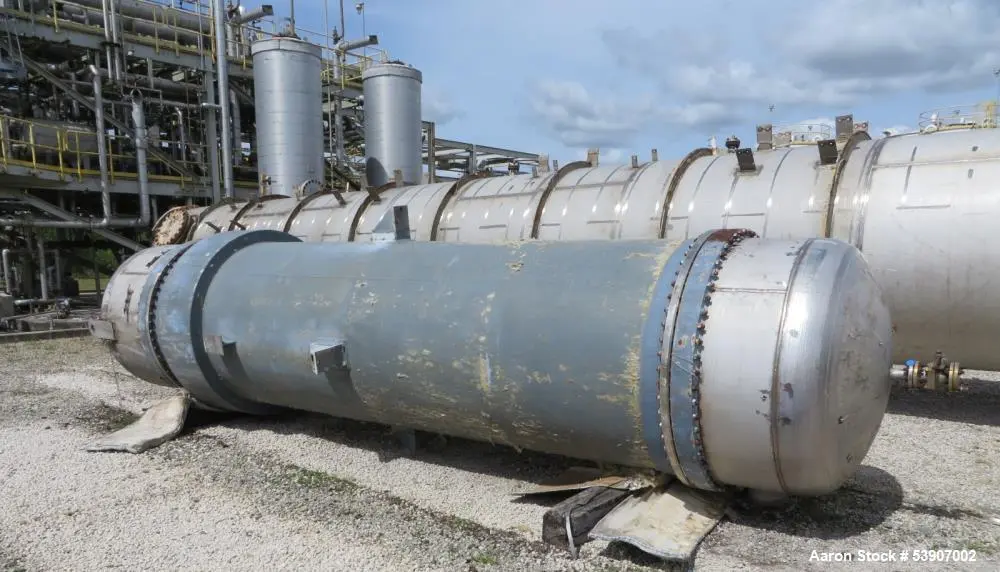

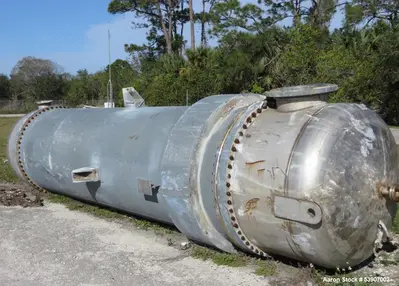

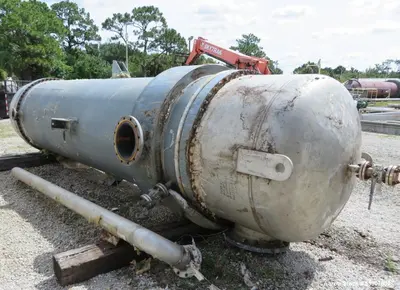

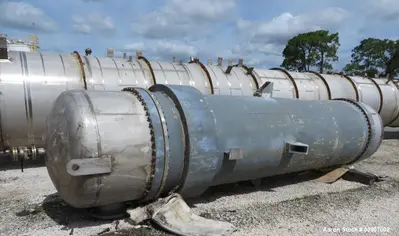

Used Heat Transfer Systems Inc. Stainless Steel Tube Reboiler/Heat Exchanger. 7062 square foot surface area; 57" diameter; Carbon steel steam shell; 304L stainless steel tubes and tube sheets; 16' shell length; 23'8" overall length; Vertical orientation (can be used horizontal); 75 PSI/FV @ 320F Shell Side (MAWP); 60 PSI/FV @ 320F Tube Side (MAWP); 31 Deg F/75 PSI Shell Side (MDMT); 31 Deg F/60 PSI Tube Side (MDMT); 15 PSI/FV @ 320F Shell Side (MAWP-External); 15 PSI/FV @ 320F Tube Side (MAWP-External). BEM exchanger configuration. S/N #13138-5. NB #2068. Built 2011. Unit is from ethanol distillation column system.
Specifications
Used Equipment Facts About This Machine
Manufacturer Details
Manufacturer: Heat Transfer Systems Inc.
Serial Number: 13138-5
National Board Number: NB #2068
Year Built: 2011
Product Details
Type: BEM Configuration Shell & Tube Heat Exchanger / Tube Reboiler
Heat Transfer Surface Area: 7,062 sq. ft.
Orientation: Vertical (can also be used horizontally)
Shell Construction: Carbon Steel (steam shell)

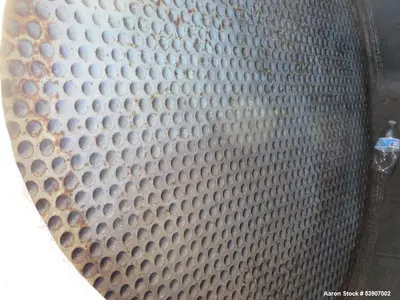

Tube & Tube Sheets: 304L Stainless Steel
Shell Diameter: 57"
Shell Length: 16'
Overall Length: 23' 8"
Design Pressure & Temperature Ratings:
Shell Side:
MAWP Internal: 75 PSI / Full Vacuum @ 320°F
MAWP External: 15 PSI / Full Vacuum @ 320°F
MDMT: 31°F @ 75 PSI
Tube Side:
MAWP Internal: 60 PSI / Full Vacuum @ 320°F
MAWP External: 15 PSI / Full Vacuum @ 320°F
MDMT: 31°F @ 60 PSI

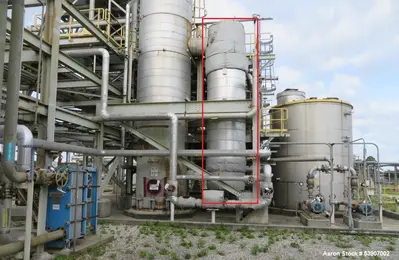

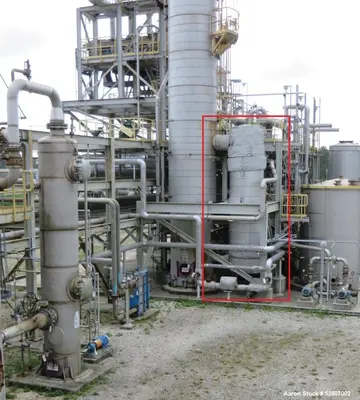

Previous Use: Ethanol distillation column system
What This Product Might Be Good For
Condensation and vaporization duties in distillation or refining operations
Ethanol or biofuel processing systems
High-efficiency heat recovery from vapor streams
Reboiling or preheating processes in chemical or petrochemical plants
Integration in food-grade or sanitary steam heating systems
Energy optimization in high-throughput processing plants
Replacing or upgrading large heat exchanger systems
Facilities needing stainless tube integrity with carbon shell economy
Heavy-duty steam or liquid heating under controlled pressure
Multi-orientation installations in modular process skids
