USED S HOWES 24U24-JS

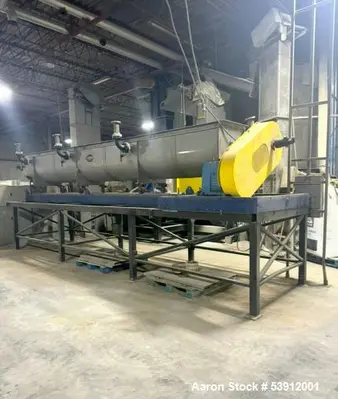

Used S. Howes U-Trough Thermal Processing Screw Conveyor, Model 24U24-JS. 24" diameter screw, 24' Long inside dimension. Oversized 16" diameter shaft pipe, Journals thru-bored to allow heating fluid flow through shaft. 22' Overall jacket length; 14.9 psig design pressure. Designed for thermal fluid heating/cooling media or low pressure steam. 316 stainless steel construction in product contact and jacket areas. 3" inlet/outlet on main body; 1" on heated/cooling screw. Fulton control panel 120-VAC, 1-Phase, 60HZ with 6 digital PID temperature controllers. 3 x 3" pneumatic valves for inlet fluid control on main body of screw conveyor. 1 x 1" pneumatic valve for inlet fluid control on screw. 10 x 3" manual gate valves for support plumbing, Sectional covers. Driven by a 15 hp, 3/60/460V motor. Machine # 117390, New in 2012. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
🏭 Manufacturer Info:

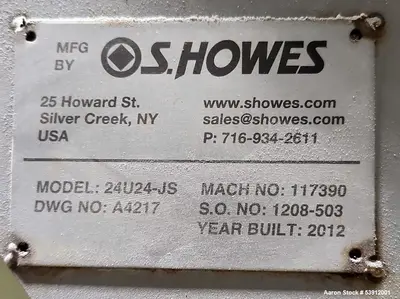

Manufacturer: S. Howes Inc.

Model: 24U24-JS

Machine #: 117390

Year Built: 2012

Made in: USA

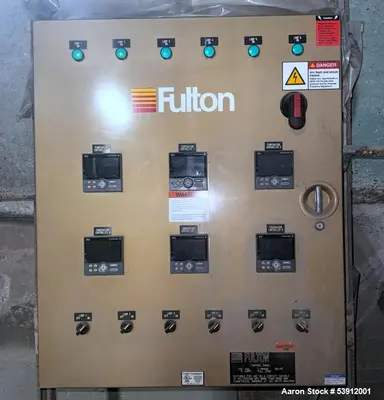

Control Panel: Fulton 120VAC, 1-Phase, 60Hz with 6 PID controllers

🧾 Product Description:

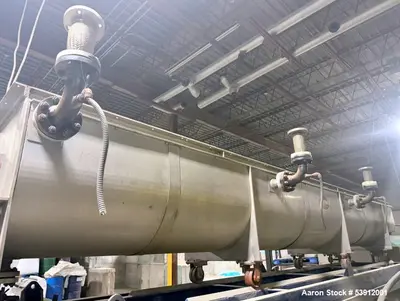

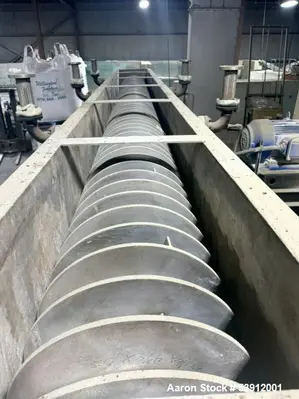

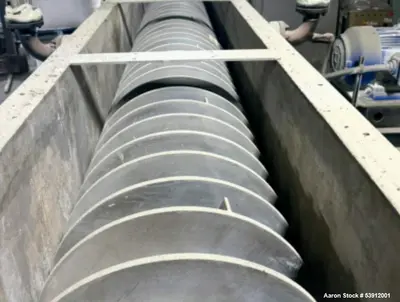

This Used S. Howes 24U24-JS Thermal Processing Screw Conveyor is a high-capacity, thermally-controlled conveying system constructed with 316 stainless steel in both product contact and jacket areas. It features a 24” diameter screw inside a 24-foot-long U-trough. The oversized 16” shaft pipe is thru-bored to allow heating or cooling fluid to circulate directly through the shaft, while the 22-foot-long jacket allows further thermal fluid or low-pressure steam regulation.
Integrated with a Fulton control panel, the unit uses 6 digital PID temperature controllers to manage temperature zones precisely. Designed for thermal fluid or low-pressure steam, it includes 3” and 1” inlet/outlet valves, manual and pneumatic valve systems, and is driven by a 15 HP motor, making it ideal for thermal batch or continuous process applications in food, chemical, and industrial sectors.

⚙️ Specifications:

Model: 24U24-JS

Screw Diameter: 24 inches

Screw Length (Inside Dimension): 24 feet

Jacket Length: 22 feet

Shaft Pipe: 16” diameter, thru-bored

Construction: 316 Stainless Steel (product contact and jacket)

Inlets/Outlets:

3” on main body (x3 pneumatic valves)

1” on screw (x1 pneumatic valve)

10 x 3” manual gate valves

Pressure Rating: 14.9 psig design pressure

Thermal Media: Thermal oil, glycol, or low-pressure steam

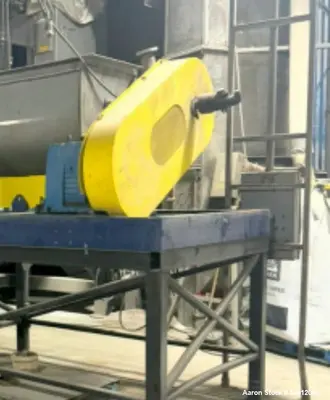

Motor: 15 HP, 3/60/460V

Control Panel: Fulton, 120VAC, 1-Phase, 60Hz, 6 digital PID controllers

🧪 Applications:

Thermal processing of powders and granules

Drying or cooling operations

Food-grade heating or cooling

Chemical process manufacturing

Plastics and resins temperature control

Pharmaceutical batch processing

Temperature-sensitive materials transfer

Pilot and scale-up thermal applications

Steam-based material agitation

Thermal fluid jacketed mixing systems

📦 What Products Would This Be Used For:

Granular food ingredients (sugar, flour, starch)

Pharmaceuticals in powder form

Resin pellets or plastic granules

Chemicals requiring thermal regulation

Heat-sensitive industrial powders

Agricultural feed or byproducts

Nutraceuticals in bulk form

Minerals and catalysts

Hygienic process materials

Thermal pre-treatment materials
