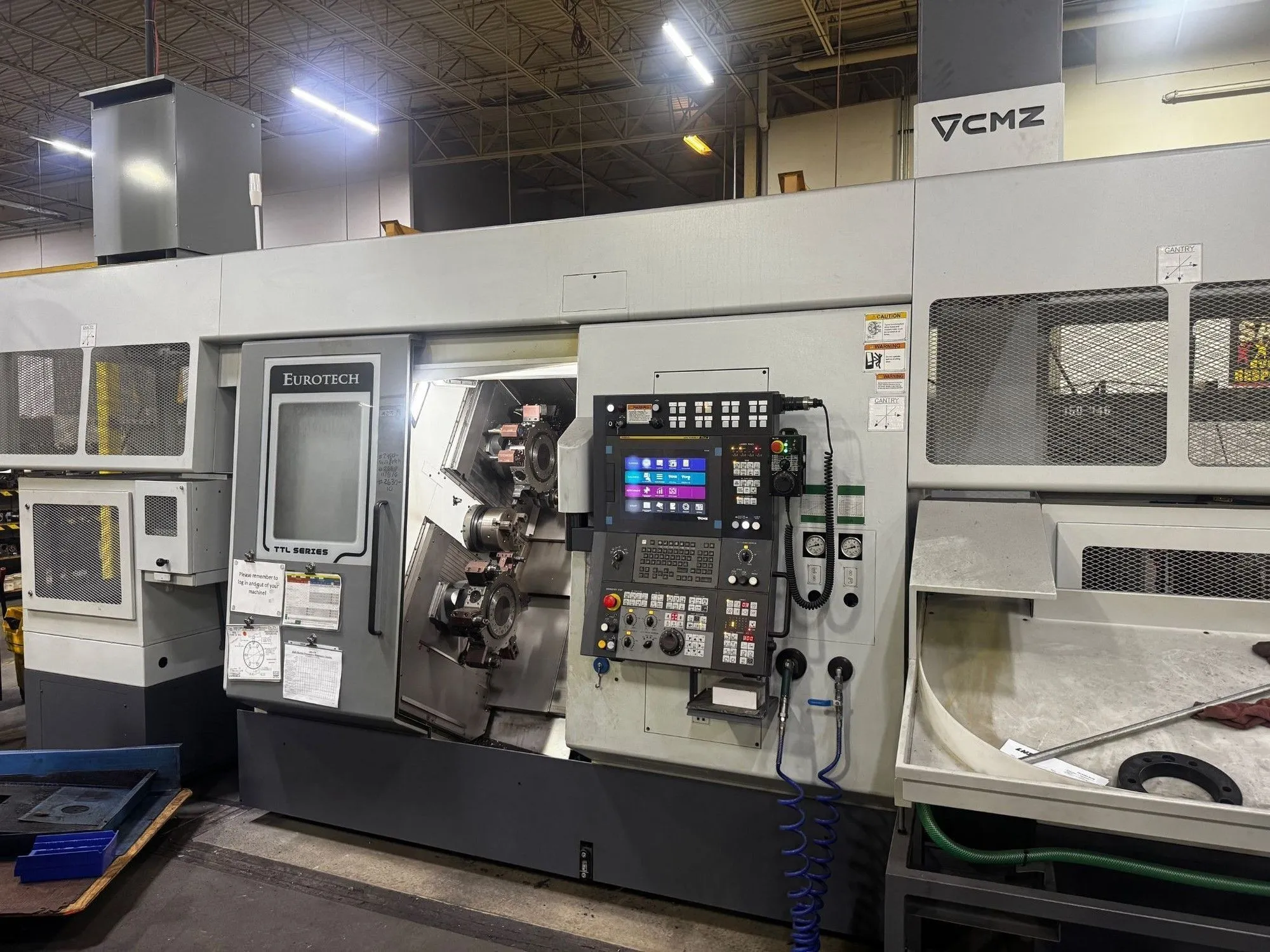

USED 2023 EUROTECH TTL-66-66-T1Y-TY2
Overview
Description
2023 Eurotech TTL-66-66-T1Y-TY2 CNC Turning Center with Fanuc 31iT Control, 10" Chucks, GL20-II 3-Axis Gantry Loader, Work Stocker, MY Systems HP Coolant, Mist Collection, Barfeed Interface for Unimag. 786 Hours
Specifications
| Swing | 240 mm | 9.4488" |
|---|---|---|
| Machining Length | 515 mm | 20.276" |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 52 mm | 2.0472" |
| Power | 35 kW | 46.9 hp |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 240 mm | 9.4488" |
| Tailstock | No | No |
| Control | CNC (Fanuc 31iT) | CNC (Fanuc 31iT) |
Max Turning Diameter: 240mm
Turning length: 515mm
Bar diameter: 52mm
Turning speed main spindle: 4000min-1
Chuck size main spindle: 210mm
Spindle Power:35.5kW
Turning torque(max./S6 40%):205Nm
Turning speed subspindle: 4000min-1
Outside Ø bearing: 150mm
Inside Ø bearing: 100mm
Spindle Nose Mounting: ASA 6" A2
Bore diameter subspindle: 61mm
Bar diameter subspindle: 52mm
Chuck size subspindle: 210mm
Power subspindle: 35.5kW
Torque subspindle: 205Nm
Number of turrets: 2
Number of Tools: 12
Type of tooling on turret:BMT 55
Time to change tool: 0.1s
Number of rotary tools: 12
Speed of rotary tools: 12000min-1
Power: 14kW
Maximum torque:42Nm
Equipped With
Fanuc 31iT CNC Control
15" Color Monitor
Fanuc iHMI Software
G Codes Type A in Fanuc
Coolant Through Left Spindle
SMW-Autoblock BB-D 210 3-Jaw Chuck L/R Spindles
Removeable Tool Pre-Setter
Upper Turret HP Coolant Pump (6+15 bar, 55l/min)
Lower Turret HP Coolant Pump (6+15 bar, 55l/min)
GL20-II 3-Axis CNC Gantry Loader Side Loading
Servo 2 x 180° Dual Gripper Gantry Swivel Head
Work Stocker WS-280 x 400 x 14 (R/L Side of Machine)
Pallet with auto-centering Rods
Test Piece Chute and Table
MP Systems Variable Rate HP Coolant System
Mist Collector
Transformer
Machine Status Light
Tool Life Management Function
Tool Load Monitoring Function
Barfeed Interface - Unimag
Interface for Mist Collector
Gantry Covers
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
