USED QUALTECH PASTEURIZER

Used 2024 Qualtech Skid-Mounted HTST Pasteurization System with Alfa Laval Plate Heat Exchanger

System designed for sanitary liquid, gel, and viscous food product processing.

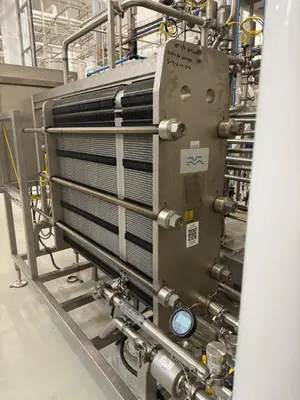

System includes a 2024 Alfa Laval FRONT6WS-FRM sanitary plate heat exchanger, tag 01-EXC-001, with 38 m² heat transfer area, 215 plates, and 7 bar MAWP at 110°C. Plate heat exchanger serial number AAN1005508, order number 8489665, with 1065 mm A-dimension and 0.7 mm plates. Unit is marked WideStream R1.

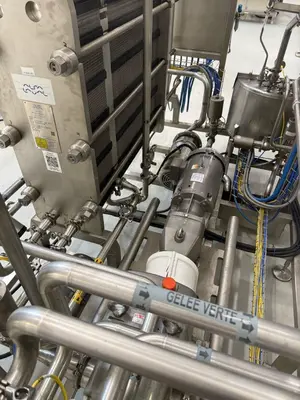

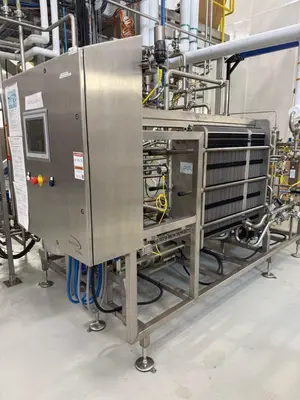

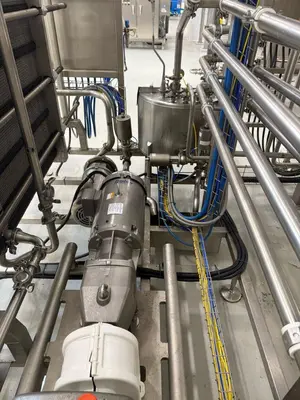

The system is equipped with sanitary stainless steel product piping, pneumatic sanitary valves, instrumentation, pressure gauge, stainless balance/holding vessel, and integrated Qualtech stainless steel control panel with touchscreen HMI. Skid is mounted on a stainless steel frame with adjustable feet and includes electrical wiring, air lines, and cable tray.

Major components include:

Alfa Laval FRONT6WS-FRM plate heat exchanger, 2024
38 m² heat transfer area
215 plates
7 bar MAWP at 110°C

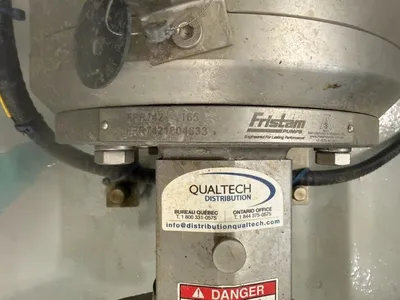

Fristam FPR742 sanitary centrifugal pump, tag P-16

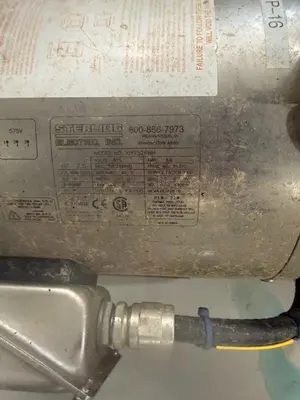

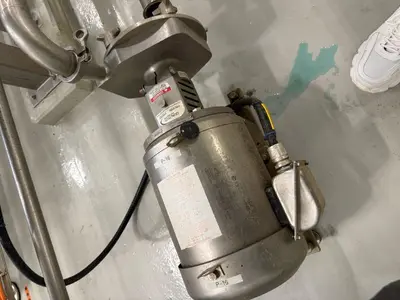

Sterling Electric 7.5 HP inverter-duty motor, 575V, 3 phase, 60 Hz, 3550 RPM, TEFC/IP65

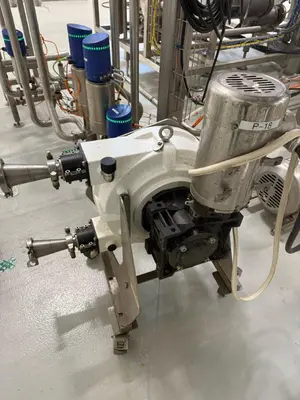

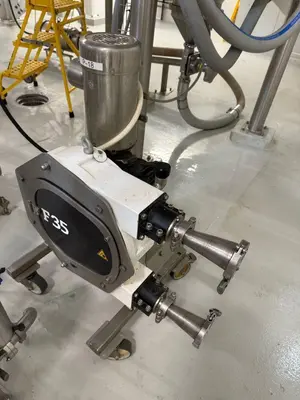

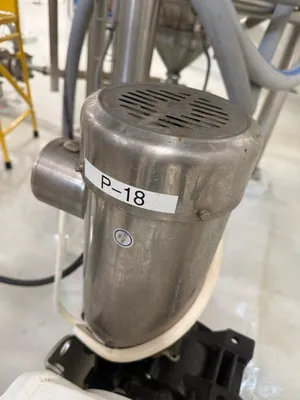

F35 peristaltic hose pump, tag P-18, with sanitary tri-clamp connections

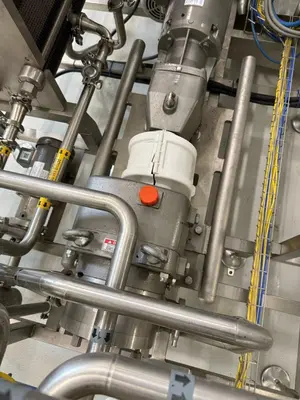

Additional large sanitary positive displacement-style product pump assembly
Stainless steel balance/holding vessel
Sanitary stainless steel piping and fittings
Pneumatic actuated sanitary valves
Integrated stainless control panel with HMI
Skid-mounted stainless steel frame
