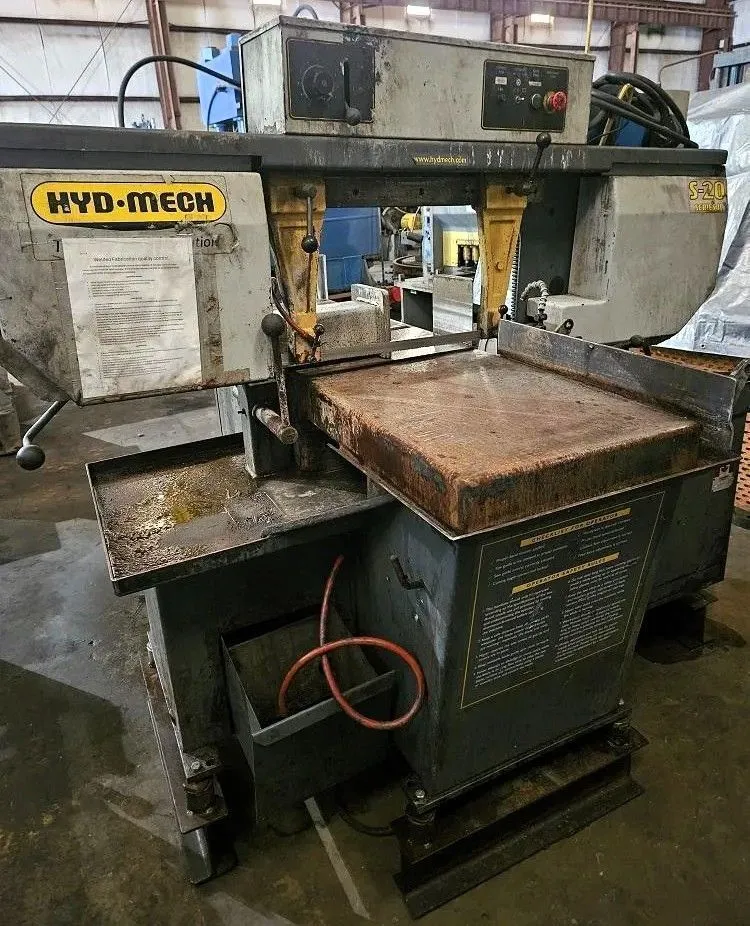

HYD-MECH S-20 Series II Horizontal Band Saw
| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 12" | 304.8 mm |
| Power | 2 hp | 1.5 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 13.6" | 345.44 mm |
| Blade Length | 162" | 4,114.8 mm |
General Specifications:
Cutting Capacity:
Rectangular: 13" High x 18" Wide
Round: 12" Diameter @ 45 Degrees
Mitre: 60 Degrees (One Direction)
Blade Length: 13' 6"
Blade Width: 1" (1.075" including teeth)
Blade Thickness: 0.032"
Blade Wheel Diameter: 16"
Motors:
Standard: 2 HP
Coolant Pump 2.4 US Gallon
Coolant Reservoir: 6 Gallons
