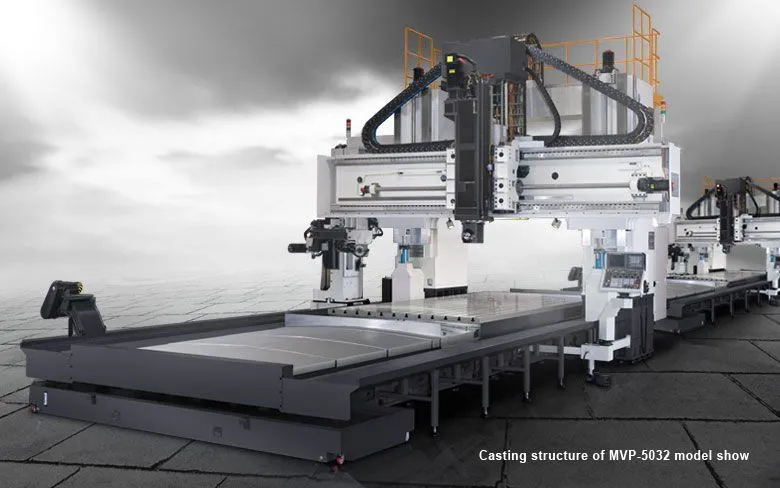

NEW 2013 AWEA MVP-5032
Description
2013 AWEA GANTRY MILL MODEL MVP5032, Factory Reconditioned ball screws, & new spindle
AWEA Mechantronic Co., Ltd. is a major Taiwanese CNC machine manufacturer established in 1986, specializing in large-scale bridge-type bridge machines, 5-axis milling, and vertical machining centers. Part of the Goodway Machine Group since 2001, AWEA is listed on the Taiwan Stock Exchange and holds a strong global presence in the automotive, aerospace, and electronics industries.
Specifications
| X | 196.85" | 5,000 mm |
|---|---|---|
| Y | 125.98" | 3,199.9 mm |
| Z | 39.37" | 1,000 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| # ATC | 60 | 60 |
| Taper | BT 50 | BT 50 |
| Table-W | 94.48" | 2,399.8 mm |
| Table-L | 197.63" | 5,019.8 mm |
| Weight | 75,000 kgs | 75,000 kgs |
Table Size 197.63" x 94.48"
X- Axis Travel 196.85"
Y-Axis Travel 125.98"
Z-Axis Travel 39.37"
W-Axis Travel 49.21"
Distance Between Columns 106.29"
Distance From Spindle Nose To Table Top 7.87" -96.45"
Spindle Speed 4,500 RPM
Spindle Taper BT#50
Spindle Motor 29.5KW/34.87 HP
Spindle nose to table top 200 ~ 2,450 mm ( 7.87" ~ 96.45" )
Table load capacity 18,000 kgs
ATC Capacity 60 ATC
Max. Tool Length 15.74"
Max. Tool Weight 44 lbs
Hydraulic unit tank capacity 290 L
Lubrication oil tank capacity 6 L
Coolant tank capacity 750 L
Power Requirements AC 220/3Ph/80 kva
Approx. Machine Weight 75,000 lbs
Equipped With
Cross Rail Bridge Type 5-face Machining Center
Packed with AWEA’s industry leading technology and high quality components, the MVP series double column bridge type 5-face machining center gives you automatic multi-face cutting power with maximum working range. Combined with rock-solid cross rail construction ( W-axis ), these series is provided with 49.2" ( 1,250 mm ) large W-axis travel, 39.3" ~ 55.1" ( 1,000 ~ 1,400 mm ) Z-axis travel, any-position automatic horizontal / vertical tool changer, and automatic optional heads exchange to fulfill all your work needs for today and tomorrow.
