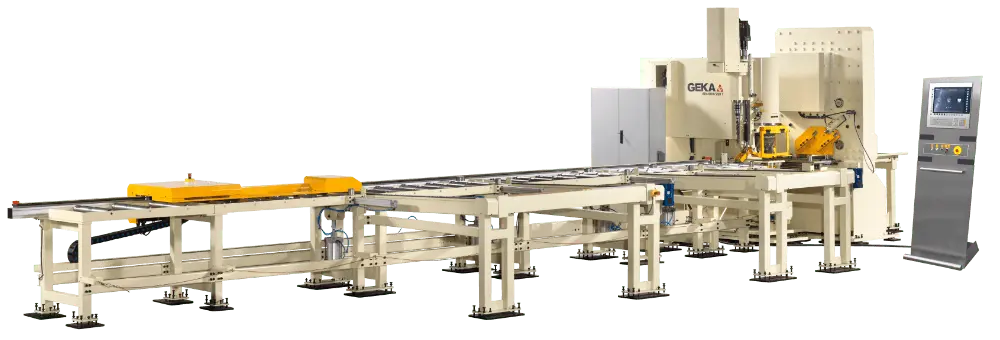

USED 2020 GEKA ALFA 500

Geka ALFA 500 Automatic Flat Bar Punching & Shearing Line
The Geka Alfa 500 is a CNC line in the Alfa Series of CNC solutions for processing flat bars. It consists of a CNC line that performs automated punching, marking, and shearing operations of flat bars of up to 40″ in length.

The Alfa 500 features a triple head punching unit for flat bars of diameters as large as 1 ¼”, a shearing station that can handle oversized material up to 20″ in width and 3/4″ in thickness.
Specifications:

Geka ALFA 500 Automatic Flat Bar Punching & Shearing Line

Specifications:

Sheet-W 19.5"
Minimum Flat Bar: 2" x 3/16"
Maximum FLat Bar: 19 1/2" x 3/4"
Number of Punches: 3
Maximum Diameter of Punches: 1 1/4"
Punching Power: 121 US Tons in Center Punch
84 US Tons in Laterals
Throat: 20"
Hydraulic Hold Down
Single Cut Shearing Station
Shearing Capacity: 19 1/2" x 3/4"

INFEED CONVEYOR:
Clamp Style Carriage driven by Rack & Pinion brushless motor
Infeed conveyor 20' long
Carraige controlled by CNC and encoder
Feeding speed variable: 0 - 1,181"/min
Automatic Side Loader for bars upto 20' in length

B & R PC Based 15" Touch Screen Control

HYDRAULIC UNIT:
20 HP Motor
Max Working Pressure: 3,850 PSI
Oil Tank Capacity: 78 Gallons
