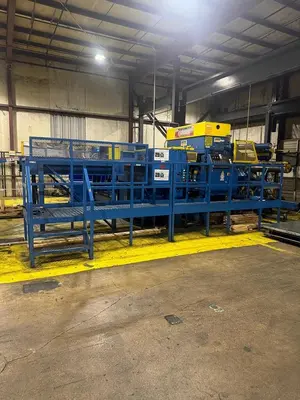

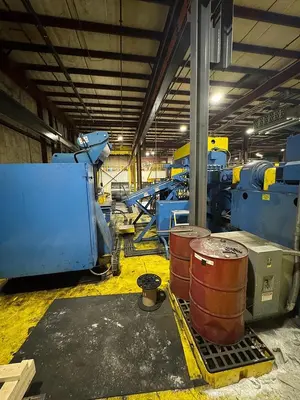

USED 1999 RED BUD RM30-72-50

The Red Bud Cut To Length Line, model RM30-72-50, effectively processes coils with a maximum width of 60 inches and a thickness ranging from 0.018 to 0.075 inches. It handles coils weighing up to 50,000 lbs. This line is designed for precision and efficiency in cut-to-length operations, equipped with a Red Bud Coil Car, which features a 50,000 lb capacity with a V-deck and hydraulic lift. The uncoiler supports up to 72-inch widths and includes features like hydraulic traverse and expansion.
Key components include a Herr Voss 5-High Leveler and a Red Bud Edge Trimmer, ensuring consistent material processing. The line also features a Red Bud Feed, capable of managing material lengths of up to 72 inches. Operating at a maximum speed of 175 feet per minute, this line is powered by a 75 HP DC motor for robust performance. Additional equipment like a Red Bud Shear and Stacker enhance its capability for precise cutting and stacking, including features like a powered end stop, hydraulic lift table, and side pallet injector.
The comprehensive setup, including hydraulically actuated machinery and advanced controls, ensures efficient handling and processing of heavy-duty coil materials. This system is ideal for industries needing precise and reliable cut-to-length capabilities.

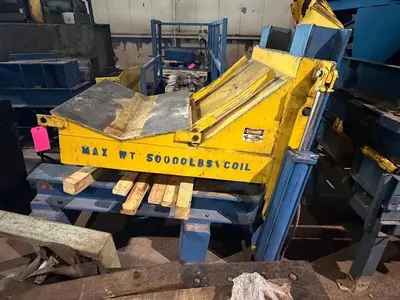

Red Bud Coil Car
- 50,000 Lb. Capacity
- Floor-Mounted, Non-Traversing
- V-Deck with Hydraulic Lift

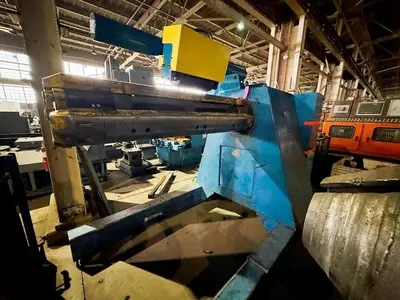

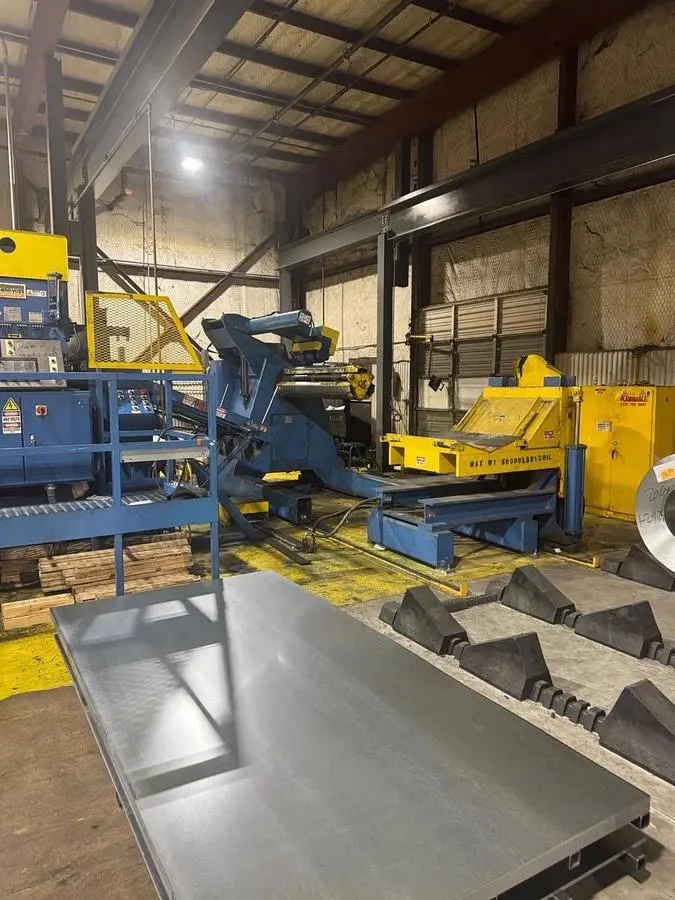

Red Bud Uncoiler
- Model: RM30-72-50
- 72" Maximum Width
- 50,000 Lb. Maximum Coil Weight
- Attached Powered Hold-Down Roll
- Hydraulic Traverse
- Hydraulic Expansion
Hydraulically Actuated Peeler

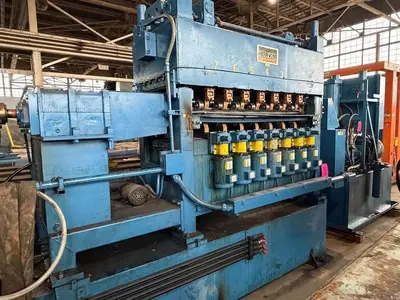

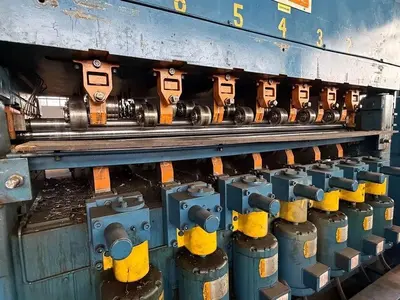

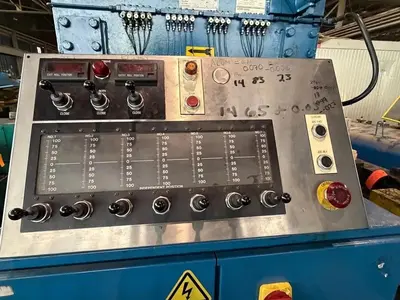

Herr Voss 5-High Leveler
- Model: VKL 72/1.50/19/7 5 HI RH
- 60" Maximum Width
- Minimum Thickness: 0.018"
- Maximum Thickness: 0.075"
- Seven (7) Motorized Backup Flights
- Maximum Speed: 175 FPM
- 75 HP DC Motor

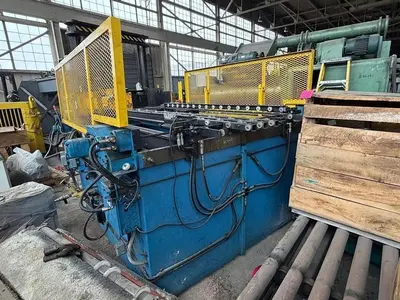

Red Bud Edge Trimmer
- Model: ET10
- 60" Maximum Width
- Minimum Thickness: 0.020"
- Maximum Thickness: 0.075"

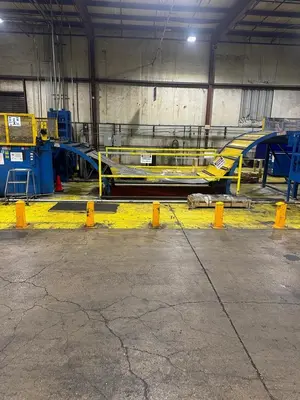

Looping Pit

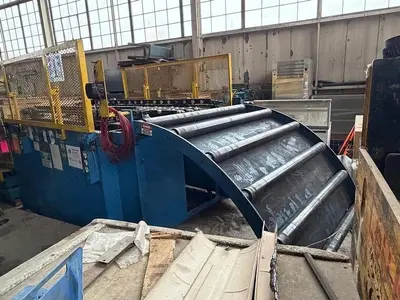

Red Bud Feed
- Model: FB BD-9-60-72
- 60" Maximum Width
- 72" Maximum Length
- Minimum Thickness: 0.020"
- Maximum Thickness: 0.075"

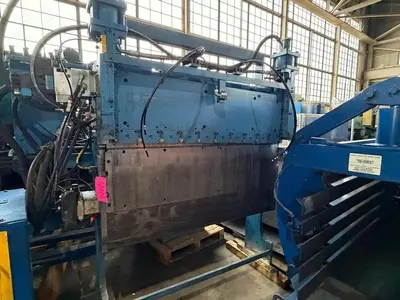

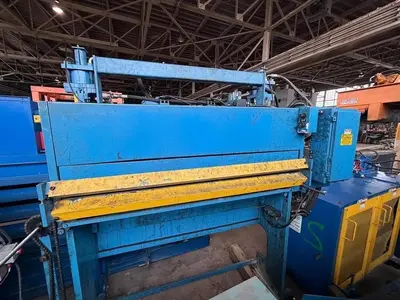

Red Bud Shear
- Model: SH18-140-60
- 60" Maximum Width
- Minimum Thickness: 0.020"
- Maximum Thickness: 0.075"

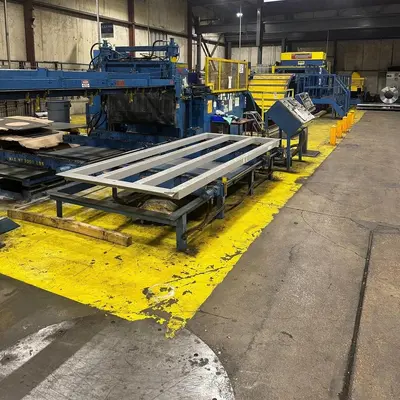

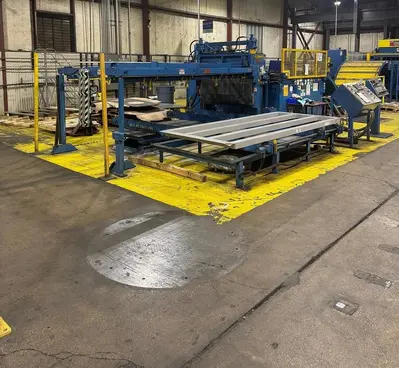

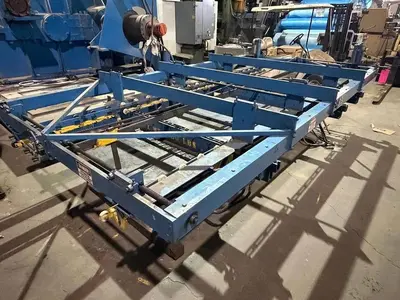

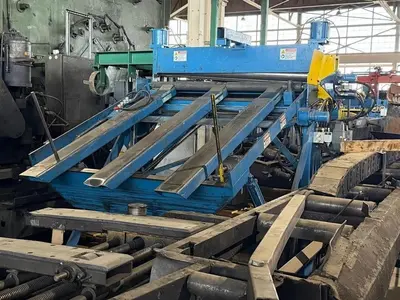

Red Bud Stacker
- Model: SD144
- 60" Maximum Width
- 144" Maximum Length
- Powered End Stop
- Hydraulic Lift Table
- Side Pallet Injector & Discharge
