Lattner Vertical Natural Gas Steam Boiler System Package with Feed Water Tank Duplex Pumps Surge Tank and Control Panel

OVERVIEW
NOTE: This is a complete steam boiler system package including a Lattner vertical natural gas fired steam boiler, stainless steel boiler feed water tank with duplex pump assembly, vertical pressure surge tank, and dedicated control panel. All components are currently installed together and available as a complete system. Pallet-mounted boiler is ready for rigging and transport. Ready for inspection — contact us to schedule.
Lattner Vertical Natural Gas Fired Steam Boiler System Package — including Stainless Steel Boiler Feed Water Tank, Duplex Bluffton/WEG Pump Assembly, Vertical Pressure Surge Tank, and Control Panel. Lattner Boiler Company is one of the most recognized names in vertical steam boiler manufacturing, known for their reliable, compact, and efficient steam generation equipment widely used across food processing, institutional, and industrial applications. This system represents a complete, self-contained steam generation and distribution support package. The Lattner vertical boiler features a side-mounted burner assembly with gas train and safety controls, top-mounted steam outlet connections, and pressure relief valve. The stainless steel feed water tank is equipped with two Bluffton Motor Works/WEG Group 3/4 HP pump motors providing duplex redundant feed water pumping capability. The vertical pressure surge tank provides system buffer capacity with multiple inlet and outlet connections. A dedicated wall-mounted control panel with emergency stop and start controls is included.
Yellow gas supply piping visible at boiler base. All major system components included. Buyer responsible for disconnection, removal, and transport from current location.
Ideal for facility steam heating, process steam, institutional steam, food and beverage processing, laundry operations, or any application requiring a complete packaged steam system with feed water management.
EQUIPMENT SPECIFICATIONS

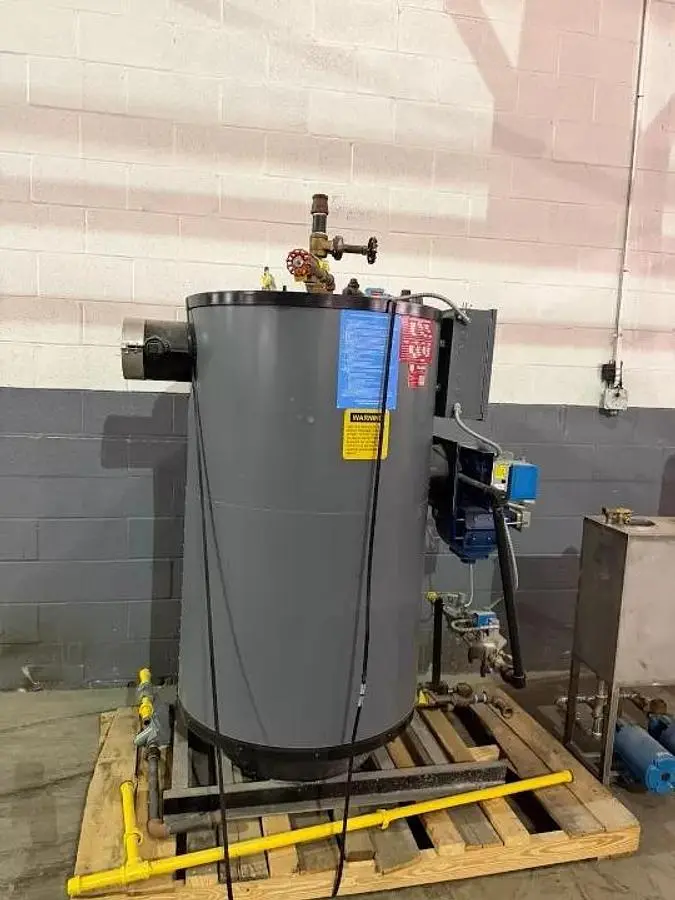

Component 1 — Lattner Vertical Natural Gas Fired Steam Boiler:

Manufacturer: Lattner Boiler Company
Type: Vertical Natural Gas Fired Steam Boiler
Orientation: Vertical
Fuel: Natural Gas
Burner: Side-mounted burner assembly with gas train
Controls: Boiler control panel with safety interlocks mounted on boiler body
Connections: Top-mounted steam outlet, pressure relief valve, multiple pipe connections
Gas Supply: Yellow gas piping at base
Mounting: Pallet-mounted — ready for transport

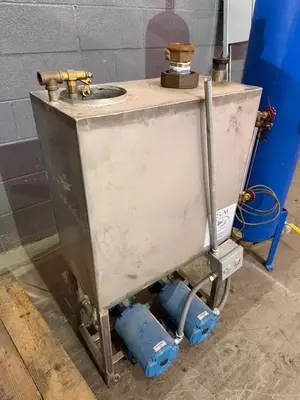

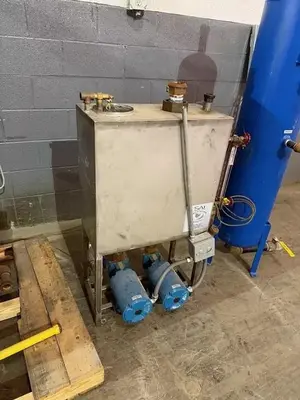

Component 2 — Stainless Steel Boiler Feed Water Tank with Duplex Pump Assembly:

Construction: Stainless steel rectangular tank
Mounting: Stainless steel leg frame
Pumps: Two (2) Bluffton Motor Works / WEG Group pump motors
Pump Model: MOD 1103155400
Pump Motor HP: 3/4 HP each
Pump Motor Voltage: 115/208-230V
Pump Motor Phase: 1 Phase
Pump Motor RPM: 3,450 RPM
Pump Motor Hz: 60 Hz
Pump Motor Frame: 56
Pump Motor FLA: 10.6/5.3 Amp
Pump Motor SF: 1.5
Pump Motor Date Code: 1902190586
Top Connections: Multiple — includes fill valve, sight glass connection, and vent/overflow fittings
Control: Duplex pump control junction box mounted on tank frame

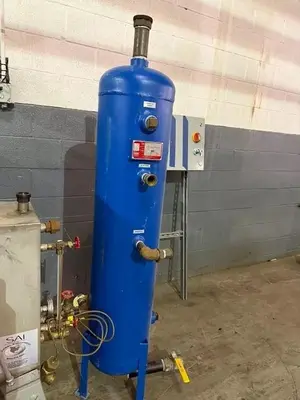

Component 3 — Vertical Pressure Surge Tank:

Type: Vertical Pressure Vessel / Surge Tank
Finish: Blue painted carbon steel
Orientation: Vertical, leg-mounted
Connections: Multiple side inlet/outlet connections, top vent/stack connection

Component 4 — Control Panel:

Type: Wall-mounted electrical enclosure
Controls: Emergency stop (red/yellow mushroom head), green start pushbutton
Label: Control Panel Boiler No. 2
Mounting: DIN rail mounted enclosure on unistrut wall frame

KEY FEATURES AND BENEFITS
Lattner Quality Steam Generation:

Lattner Boiler Company — one of the most recognized names in vertical steam boiler manufacturing
Compact vertical configuration — minimal floor space required
Natural gas fired — clean burning, lower maintenance fuel system
Side-mounted burner assembly with gas train and safety controls
Top-mounted steam outlet connections with pressure relief valve
Boiler manufacturer control panel mounted directly on boiler body
Pallet-mounted — easy rigging and transport

Complete Steam System Package:

All major steam system components included in one lot
Complete package reduces sourcing, integration, and installation time versus assembling individual components
Lattner vertical natural gas fired steam boiler
Stainless steel boiler feed water tank with duplex pump redundancy
Vertical pressure surge tank for system buffer capacity
Dedicated control panel with emergency stop included

Duplex Boiler Feed Water System:

Stainless steel rectangular feed water tank on stainless steel leg frame
Two Bluffton Motor Works / WEG Group 3/4 HP pump motors
Duplex pump configuration provides redundancy — one pump backup if primary fails
3,450 RPM single phase motors
115/208-230V — flexible electrical connection options
Multiple top connections for fill, overflow, and instrumentation

Pressure Surge Tank:

Vertical pressure vessel providing system buffer and surge capacity
Blue painted carbon steel construction
Multiple side connections for system integration
Top vent/stack connection
Leg-mounted for floor installation

Control Panel:

Dedicated wall-mounted control panel included
Emergency stop mushroom head pushbutton
Green start pushbutton
Clean professional enclosure
Labeled Control Panel Boiler No. 2

SYSTEM COMPONENTS
Package Includes:

One (1) Lattner Vertical Natural Gas Fired Steam Boiler — pallet mounted with burner assembly, gas train, and boiler controls
One (1) Stainless Steel Boiler Feed Water Tank — with duplex Bluffton/WEG 3/4 HP pump motors and control junction box
One (1) Vertical Pressure Surge Tank — blue painted carbon steel, leg mounted, with multiple connections
One (1) Wall-Mounted Control Panel — with emergency stop and start pushbutton, labeled Control Panel Boiler No. 2
Yellow gas supply piping at boiler base
All interconnecting piping and valves visible in photos

SPECIFICATIONS SUMMARY

System Type: Complete Steam Boiler System Package
Boiler Manufacturer: Lattner Boiler Company
Boiler Type: Vertical Natural Gas Fired Steam Boiler
Boiler Fuel: Natural Gas
Boiler Mounting: Pallet-Mounted
Feed Water Tank: Stainless Steel Rectangular Tank on Stainless Steel Frame
Pump Manufacturer: Bluffton Motor Works / WEG Group
Pump Model: MOD 1103155400
Pump Motor HP: 3/4 HP Each (Two Motors — Duplex)
Pump Motor Voltage: 115/208-230V
Pump Motor Phase: 1 Phase
Pump Motor RPM: 3,450 RPM
Pump Motor Hz: 60 Hz
Pump Motor Frame: 56
Surge Tank: Vertical Blue Carbon Steel Pressure Vessel — Leg Mounted
Control Panel: Wall-Mounted Enclosure with Emergency Stop and Start Pushbutton
Condition: Used

ADDITIONAL INFORMATION

Condition: Used
System Type: Complete Steam Boiler System Package
Boiler Manufacturer: Lattner Boiler Company
Boiler Type: Vertical Natural Gas Fired Steam Boiler
Boiler Fuel: Natural Gas
Boiler Mounting: Pallet-Mounted
Feed Water Tank: Stainless Steel with Duplex 3/4 HP Bluffton/WEG Pump Motors
Surge Tank: Vertical Blue Carbon Steel Pressure Vessel
Control Panel: Included — Control Panel Boiler No. 2
Inspection: Welcome — contact us to schedule

IMPORTANT NOTES:

All four components sold together as a complete system package
Buyer responsible for all disconnection, rigging, removal, and transport from current location
Natural gas fired — yellow gas supply piping visible at boiler base
Contact us for additional photos, video walkthroughs, or technical questions
