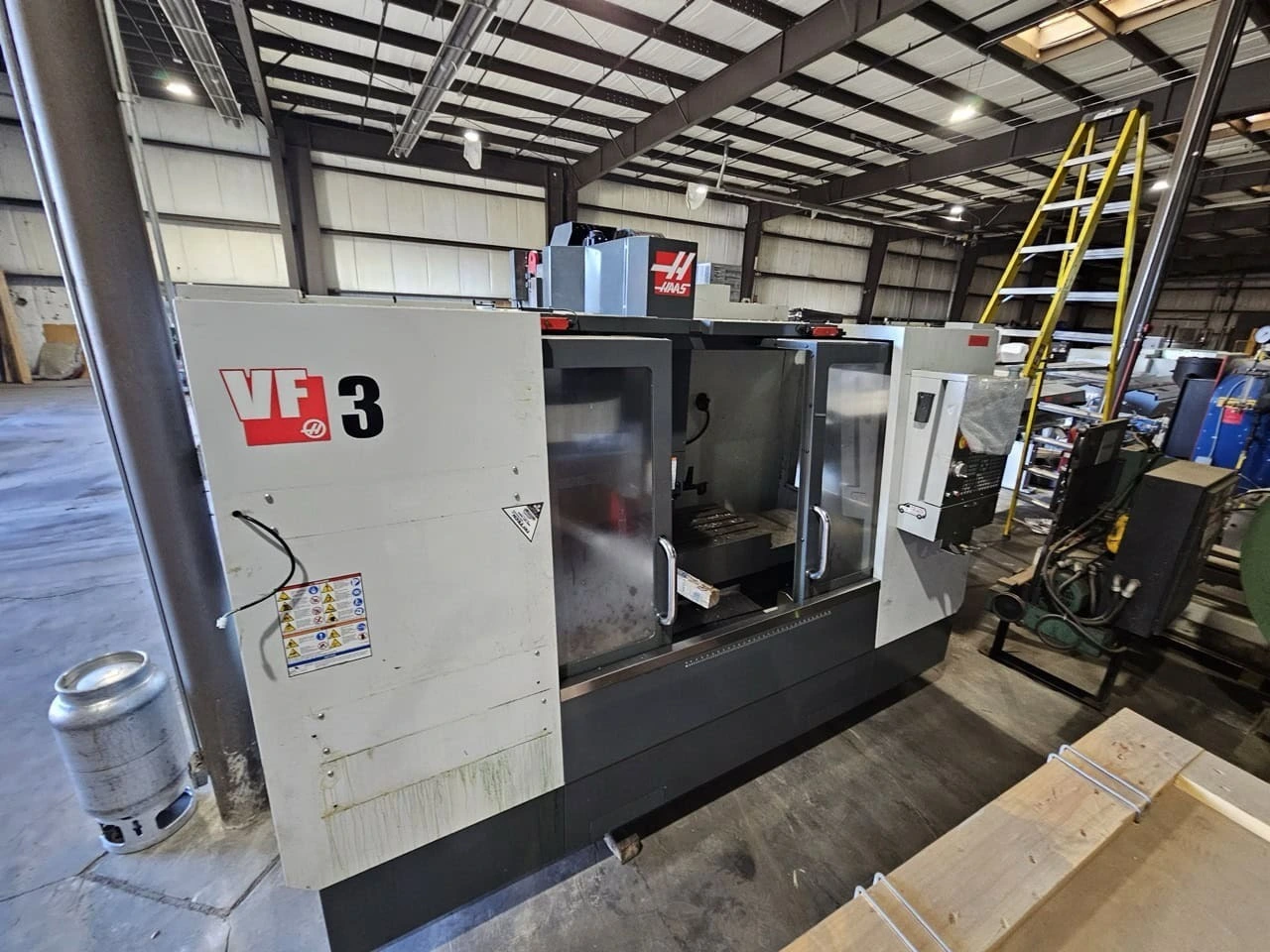

Used Vertical Machining Center, features 40"x20"x25" travels, 48"x18" table, 10,000 RPM spindle, CAT 40 taper, 20 HP motor, 20+1 tool changer, 710 ipm traverse rates, and 3,500 lb load capacity.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
Travels (X / Y / Z) 40″ × 20″ × 25″ (1,016 × 508 × 635 mm)
Table Size 48″ × 18″ (1,219 × 457 mm)
Table Load Capacity 3,500 lb (1,588 kg)
Spindle Speed Up to 10,000 RPM
Spindle Taper CAT 40
Spindle Motor 20 HP Vector Drive
Tool Changer Capacity 20 + 1 (standard carousel)
Tool Change Time ≈ 4.2 sec (tool-to-tool)
Rapid Traverse Rates 710 ipm (X / Y / Z)
Feed Rate (Max.) 500 ipm
Coolant System Flood coolant (through-spindle optional)
Air Requirements 4 SCFM @ 100 psi
Electrical Requirements 208–240 V / 3-Phase / 50–60 Hz (30 A min)
Approx. Machine Weight ≈ 12,500 lb (5,670 kg)
