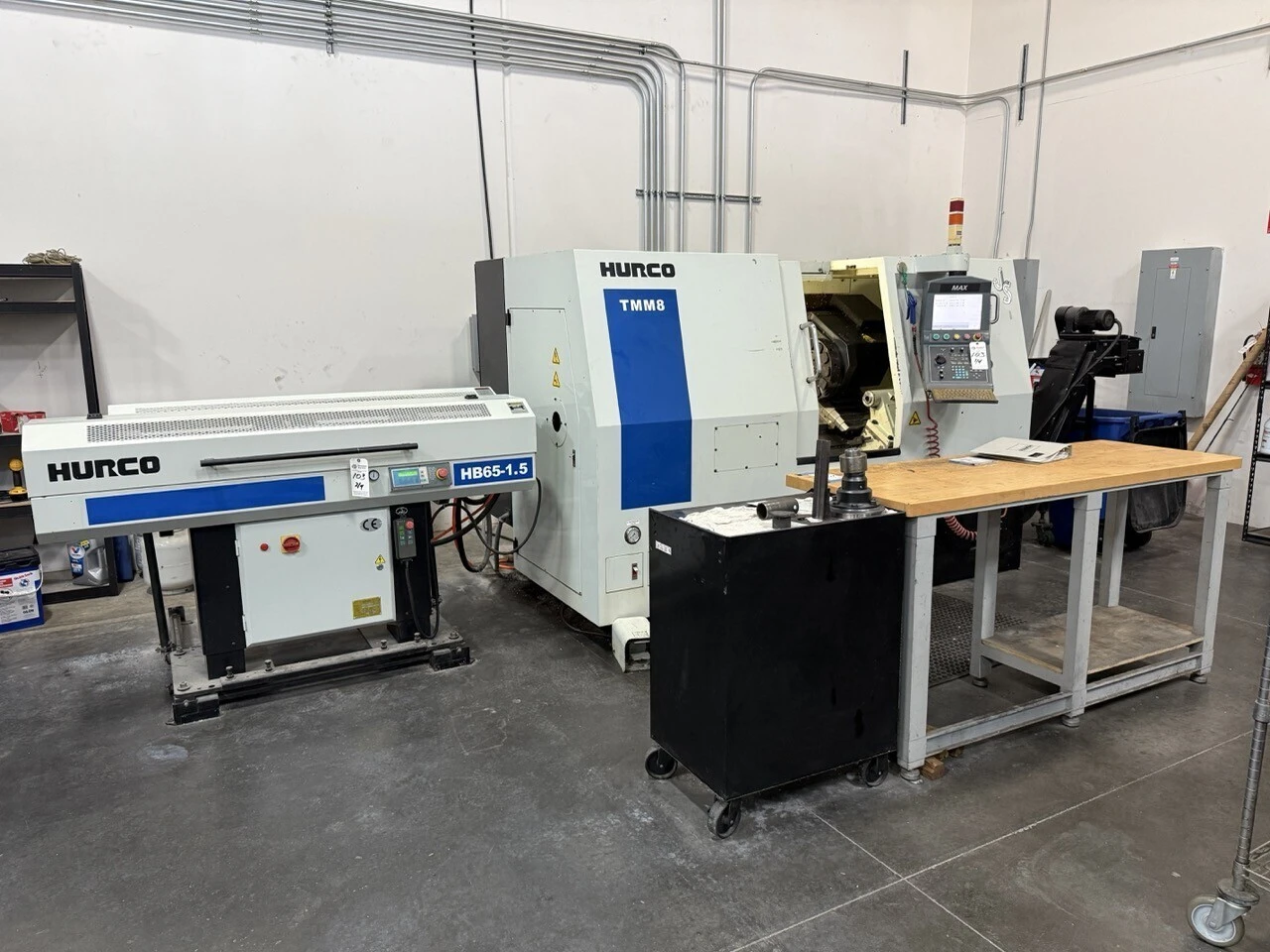

Used CNC Lathe with 22" swing, 23" machining length, and 18 hp power. Features include live milling, chip conveyor, Hurco Max CNC control, and assorted tool holders. Max RPM of 4,800 and equipped with a Hurco HB65-1.5 bar feed.
| Swing | 22" | 558.8 mm |
| Machining Length | 23" | 584.2 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 18 hp | 13.4 kW |
| Max RPM | 4,800 RPM | 4,800 RPM |
| Turning Dia | 12" | 304.8 mm |
| Tailstock | Yes | Yes |
| Control | CNC (HURCO) | CNC (HURCO) |
| Dimensions | 79″l X 52″w X 48″h | 79″l X 52″w X 48″h |
Chuck Size: 8″
Max. Turning Diameter: 12″
Max. Turning Length: 18.8″
Swing Over Bed: 21.6″
Spindle Speed: Up To 4800 Rpm
Spindle Motor: 15hp
Max. Bar Capacity: 2″
X-Axis Travel: 8″
Z-Axis Travel: 20″
Power: 208v Ac, 3ph, 60hz
Largest Motor: 11 Kva, 41 Amp
Full Load: 22 Kva, 55 Amp
Interrrupt Capacity: 10,000 Amps
Hurco Bar Feed:
Sn: 052011-0031
220v Ac, 0.4a, 50/60hz, 200w
Max Length: 48″
Live Milling
Chip Conveyor
Hurco Max CNC Control
Hurco HB65-1.5 Bar Feed
Assorted Live and Static Tool Holders
Tailstock
Collets
All available Manuals
Advanced Verification Graphic
Dxf
Nc Productivity Package
Industry Standard Nc
Ultipockets
Insert Pockets
Rigid Tap
Helical Ramp
3d Mold
Nc Conversational Merge
Swept Surface
Select surface
Ultimotion
Tool Change Optimization
Ultimonitor
Stream Load
Job List
