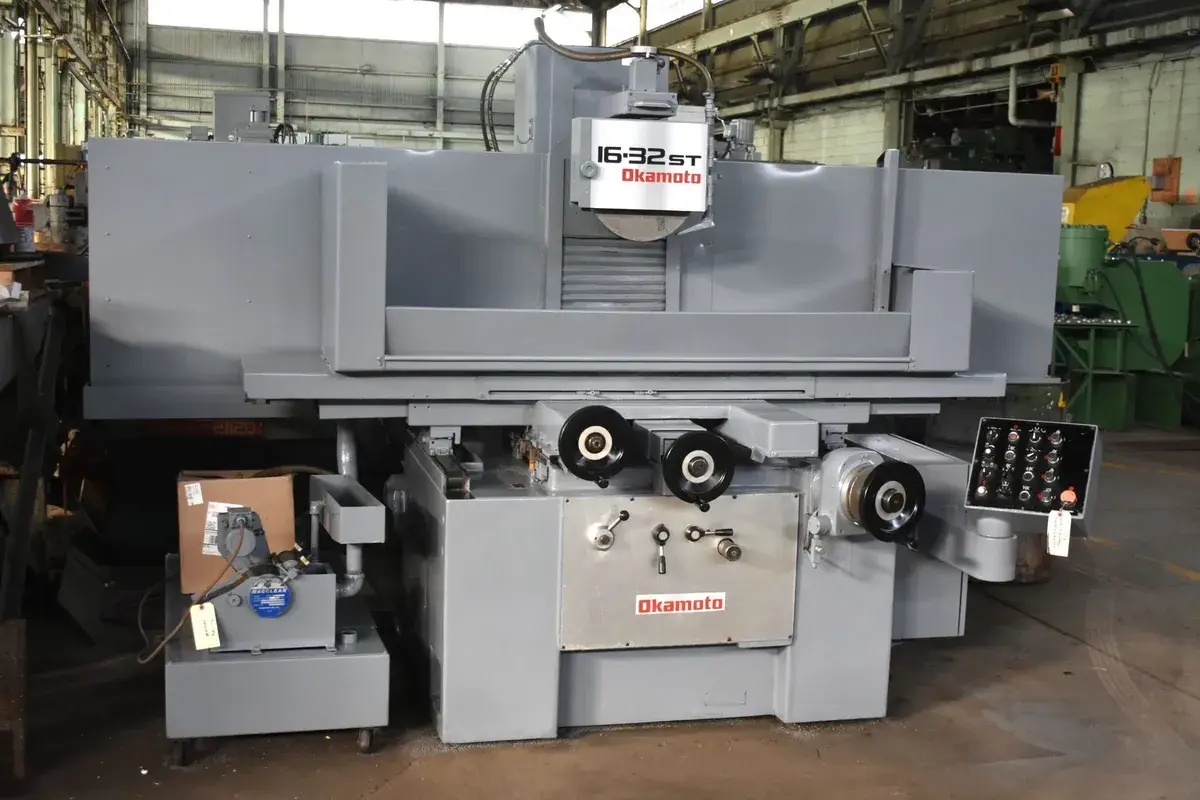

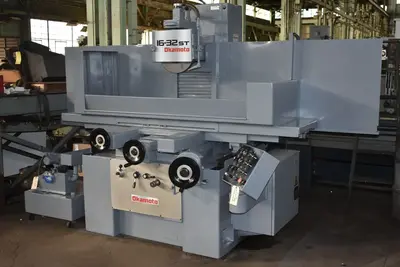

16" × 32" OKAMOTO ACC-16.32ST 3-AXIS SADDLE-TYPE HORIZONTAL-SPINDLE SURFACE GRINDER
Specifications:
Table Working Surface: 16 in × 33.5 in
Grinding Width Capacity: 16 in
Grinding Length Capacity: 32 in
Table Load Capacity: 1,540 lbs
Maximum Height Wheel to Table: 21.6 in
Longitudinal Table Travel: 37.5 in
Cross Table Travel: 17.5 in
Longitudinal Table Speed: 10 to 82 FPM (Variable)
Cross Table Feed Range: 0.02 to 0.8 IPM
Automatic Down Feed: 0.0002 to 0.0015 IPM (Variable)
Grinding Wheel Diameter: 12 in
Grinding Wheel Width: 1.5 in Maximum
Grinding Wheel Hole Diameter: 5 in
Grinding Wheel Motor: 5 HP
Hydraulic System Motor: 3 HP
Overall Dimensions: 132 in × 87 in × 82 in
Approximate Weight: 8,800 lbs
Equipped with:
Electro-Magnetic Chuck
Incremental Power Down Feed
Hydraulic Overhead Wheel Dresser
Coolant Filtration System
