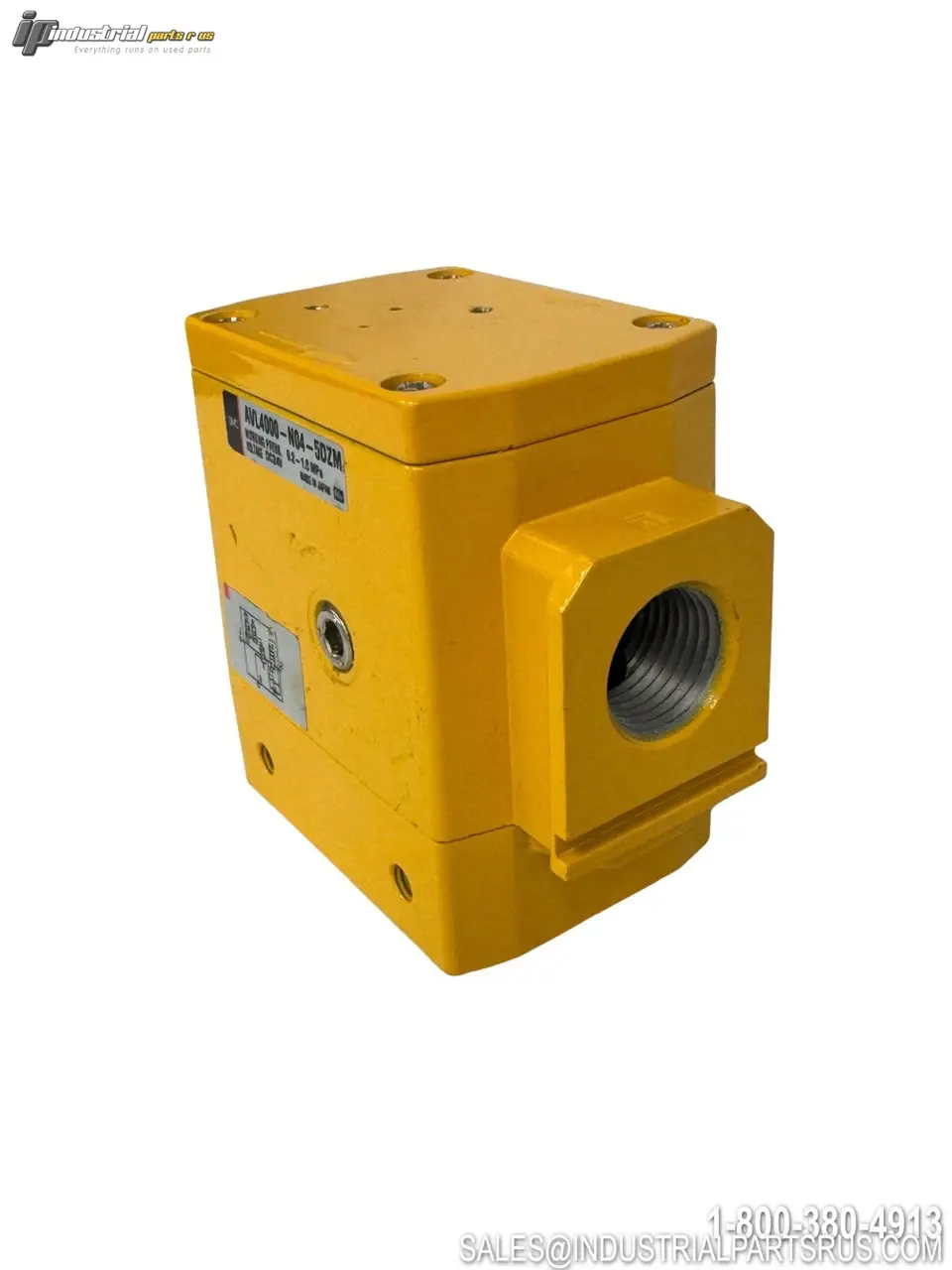

NEW SMC AVL4000-NO4-5DZM

The SMC AVL4000-N04-5DZM is a pneumatic soft start-up valve with lockout capability from the AVL 4000 Series. This valve provides lock-out capability to permit safe servicing of the equipment once the pneumatic supply has been shut off. It functions as an energy isolation device and should not be used as an emergency stop device.
Specification
Value
Brand
SMC
Model/Part Number
AVL4000-N04-5DZM
Valve Type
Soft Start-Up Valve with Lock Out
Series
AVL 4000 Series
Coil Voltage
24 VDC
Port Size
1/2 inch
Thread Type
NPT
Operating Pressure
30 to 150 PSI
Operating Temperature
32 to 140°F
Media
Air
Connection Type
D Type DIN Connector with M12 Connector
Features
Indicator Light and Voltage Suppressor
Body Color
Yellow
Weight
2.00 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI1339
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: AVL4000-NO4-5DZM
Shelf: G-S. -32
Model: AVL4000-NO4-5DZM
MPN: AVL4000-NO4-5DZM
Type: Pneumatic Valve
