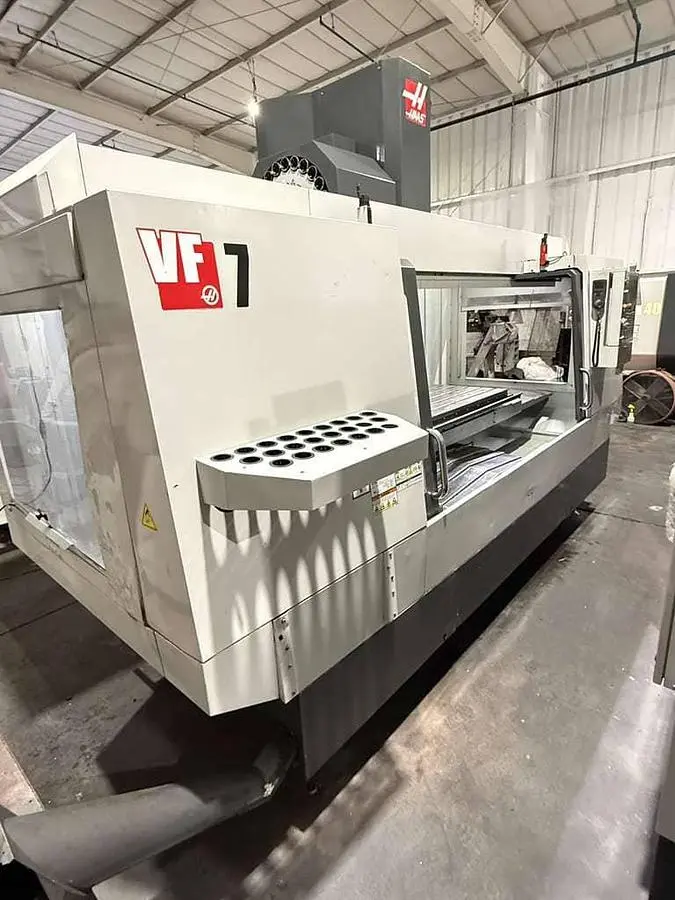

USED 2011 HAAS VF-7/40

24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring
Remote Jog Handle
Auger Style Chip Conveyor
Rigid Tapping
Programmable Coolant Nozzle
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Coolant System with Tank & Pump

The 2011 Haas VF-7/40 is a robust used CNC Vertical Machining Center designed for precision and efficiency in various machining applications. It features an expansive table size of 84" x 28" capable of supporting loads up to 4,000 lbs, making it suitable for larger workpieces. The machine offers an impressive travel range with X, Y, and Z-axis travels of 84", 32", and 30" respectively, providing substantial flexibility in operations.

Equipped with a CAT 40 spindle taper, the VF-7/40 reaches spindle speeds up to 7,500 RPM, driven by a powerful 20 HP motor. The machine is outfitted with a 24+1 station side-mounted tool changer, enhancing its productivity by reducing tool change times. This model also includes a 4th-axis drive, programmable coolant, and a remote jog handle, contributing to its versatility and ease of operation.

The machine's rapid traverse rates of 400 ipm in X and 600 ipm in both Y and Z axes ensure expedited positioning, improving overall cycle times. Despite its substantial capabilities, the overall footprint of the machine is 214"x102"x129", with a weight of 25,600 lbs, necessitating appropriate space for installation and operation. This Haas VF-7/40 is an excellent choice for businesses seeking an efficient and reliable machining center.

Table Size: 84" x 28"
Maximum Table Load: 4,000 lbs
X-Axis Travel: 84"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Taper: CAT 40
Spindle Speed: 7,500 RPM
Spindle Motor: 20 HP
Tool Magazine Capacity: 24+1 Station Side Mounted Tool Changer
Distance Spindle Nose to Table Top: 4" - 34"
Rapid Traverse Rates (X, Y, Z): 400 ipm / 600 ipm / 600 ipm
Machine Dimensions LxWxH: 214"x102"x129"
Machine Weight: 25,600 lbs
