USED 2019 TORMACH 1100M

Flood Coolant System with 1/8 HP Motor
Power Draw Bar

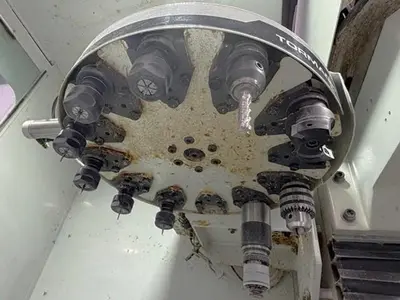

12 Station Tool Changer
Full Enclosure Guarding
Modular Tension/Compression Tapping Head Kit
Manual Speeder Assembly
Digitizing Probe
Tool Presetter
RapidTurn Deluxe Package
5" Machinist Vise
Tooling Package
All Available Manuals

**Very Little Usage**
**New Cost at Time of Purchase was $34,889**

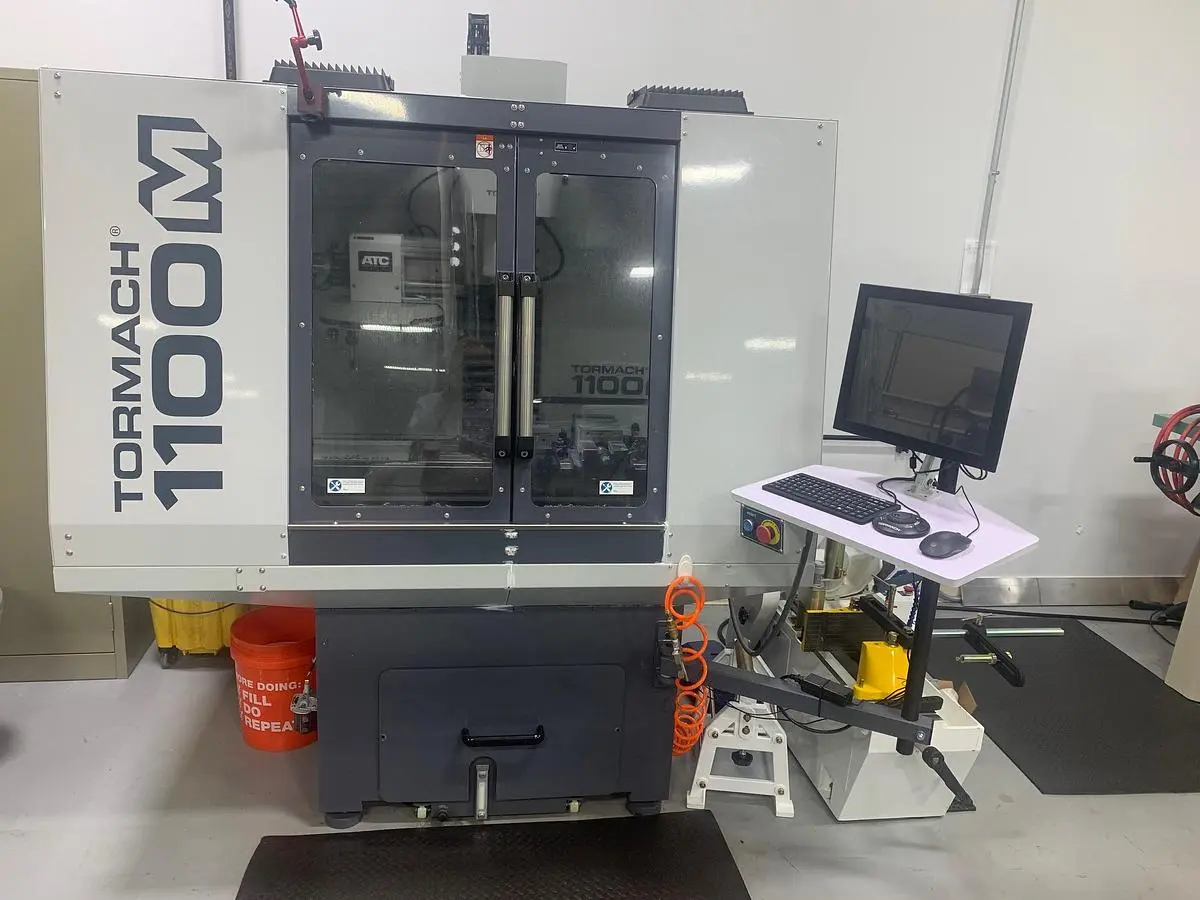

The 2019 Tormach 1100M is a versatile CNC Vertical Machining Center ideal for precision projects requiring a robust setup. Equipped with Tormach's PathPilot Control System, it offers a user-friendly interface for efficient operation. The machine features a table size of 34" x 9.5" and supports a maximum weight of 500 lbs. With travel dimensions of 18" on the X-axis, 11" on the Y-axis, and 16.25" on the Z-axis, it accommodates various workpieces easily. The spindle operates at speeds up to 7,500 RPM, driven by a 2 HP motor, with an R8 spindle taper providing reliable performance.

This 1100M model is fitted with a 12-position Automatic Tool Changer (ATC), enhancing productivity for complex jobs. Additional features include a drawbar, manual speeder, tool presetter, digitizing probe, and vise, which streamline the machining process. The tooling included with this machine ensures readiness for a range of tasks from the start. Its power requirement is a manageable 230V single phase, suited for typical workshop setups.

Considering its light usage, this machine remains in excellent condition, promising reliability and accuracy. Measuring 69" x 56" x 96" and weighing 1,118 lbs, it offers a substantial yet compact package, ideal for operations where space and performance are critical. This Tormach 1100M represents a thoughtful investment for machining professionals seeking quality and capability.

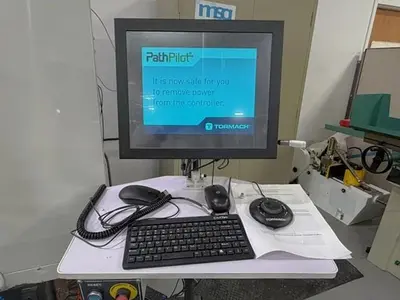

Machine Control: Tormach PathPilot Control System

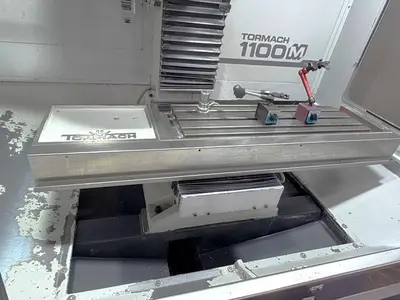

Table size: 34" x 9.5"
Maximum Weight on Table: 500 lbs
X-axis travel: 18"
Y-Axis Travel: 11"
Z-Axis Travel: 16.25"
Spindle Speed: 7,500 RPM
Spindle Motor: 2 HP
Tool Magazine Capacity: 12 Position Tool Changer
Spindle taper: R8 Taper
Power Requirement: 230V Single Phase
Machine Dimensions LxWxH: 69" x 56" x 96"
Machine Weight: 1,118 lbs
