USED 2011 HAAS VF-7/40

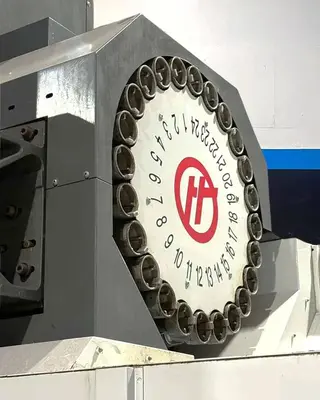

24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring
High Speed Machining
Prepped for Coolant Through the Spindle
Remote Jog Handle
Auger Style Chip Conveyor
Rigid Tapping
Programmable Coolant Nozzle
Visual Quick Code
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation

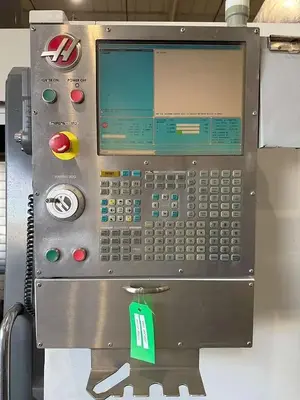

Haas Intuitive Programming System
Advanced Tool Management
DNC Enabled
USB Port Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Coolant System with Tank & Pump

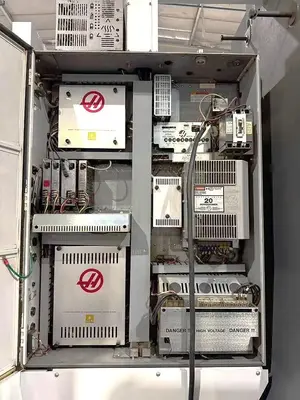

Wired 360-480V Electrics

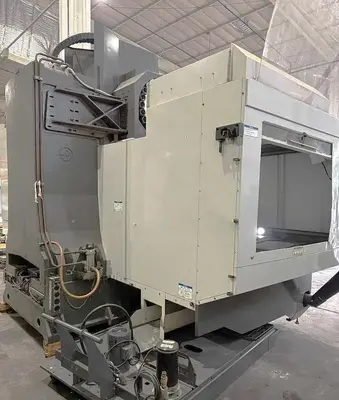

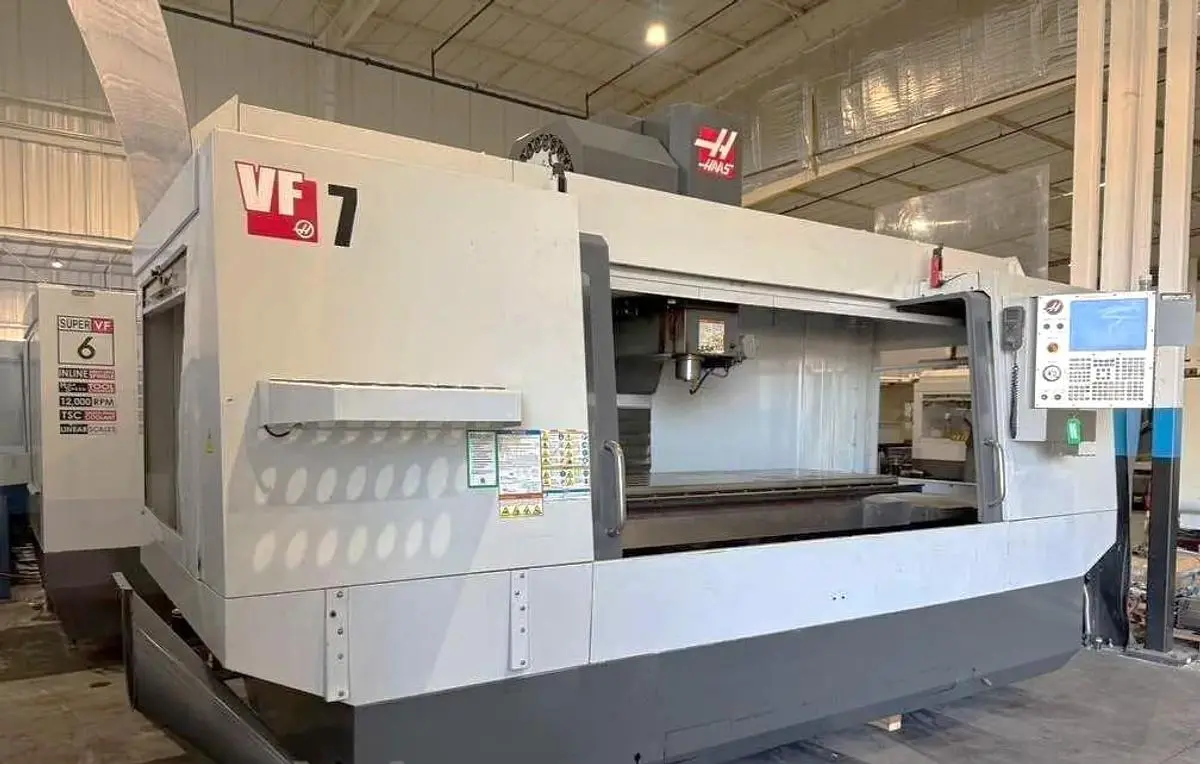

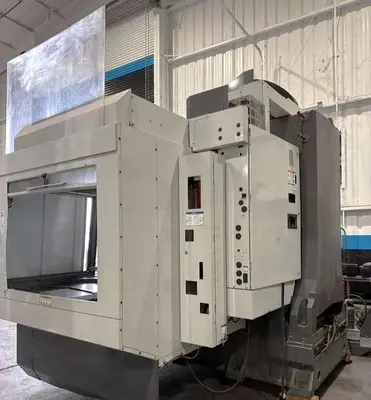

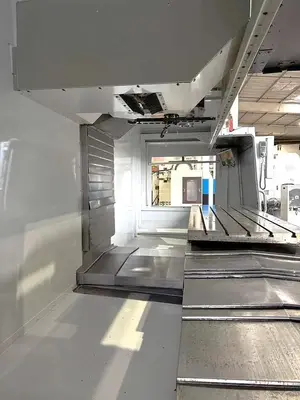

This 2011 Haas VF-7/40 vertical machining center is designed for robust industrial applications. With a large table size of 84" x 28" and a maximum table load of 4,000 lbs, it supports heavy and extensive workpieces. The machine offers substantial travel dimensions, with X-axis travel of 84", Y-axis travel of 32", and Z-axis travel of 30", making it a versatile choice for various large-scale projects.

Equipped with a powerful 20 HP spindle that reaches speeds up to 12,000 RPM, the VF-7/40 caters to high-speed machining needs efficiently. The CAT 40 spindle taper enhances precision, bolstered further by the 24+1 station side-mounted tool changer for rapid and convenient tool shifts. With rapid traverse rates of 400 ipm on X and 600 ipm on Y and Z axes, this machine ensures quick movement, boosting productivity in demanding operations.

This CNC VMC comes with a 4th axis drive and is TSC (Through-Spindle Coolant) prepped, offering enhanced flexibility in complex machining tasks. With overall machine dimensions of 214" x 102" x 129" and a weight of 25,600 lbs, this Haas model stands as a heavyweight contender suitable for demanding environments.

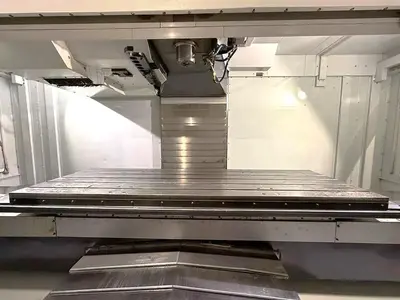

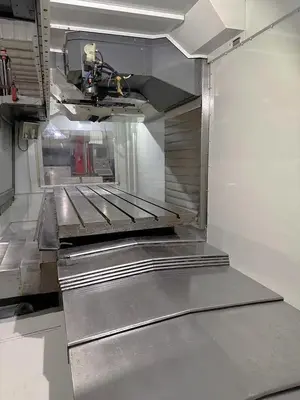

Table Size: 84" x 28"
Maximum Table Load: 4,000 lbs
X-Axis Travel: 84"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor: 20 HP
Tool Magazine Capacity: 24+1 Station Side Mounted Tool Changer
Distance Spindle Nose to Table Top: 4" - 34"
Rapid Traverse Rates (X, Y, Z): 400 ipm / 600 ipm / 600 ipm
Machine Dimensions LxWxH: 214"x102"x129"
Machine Weight: 25,600 lbs
