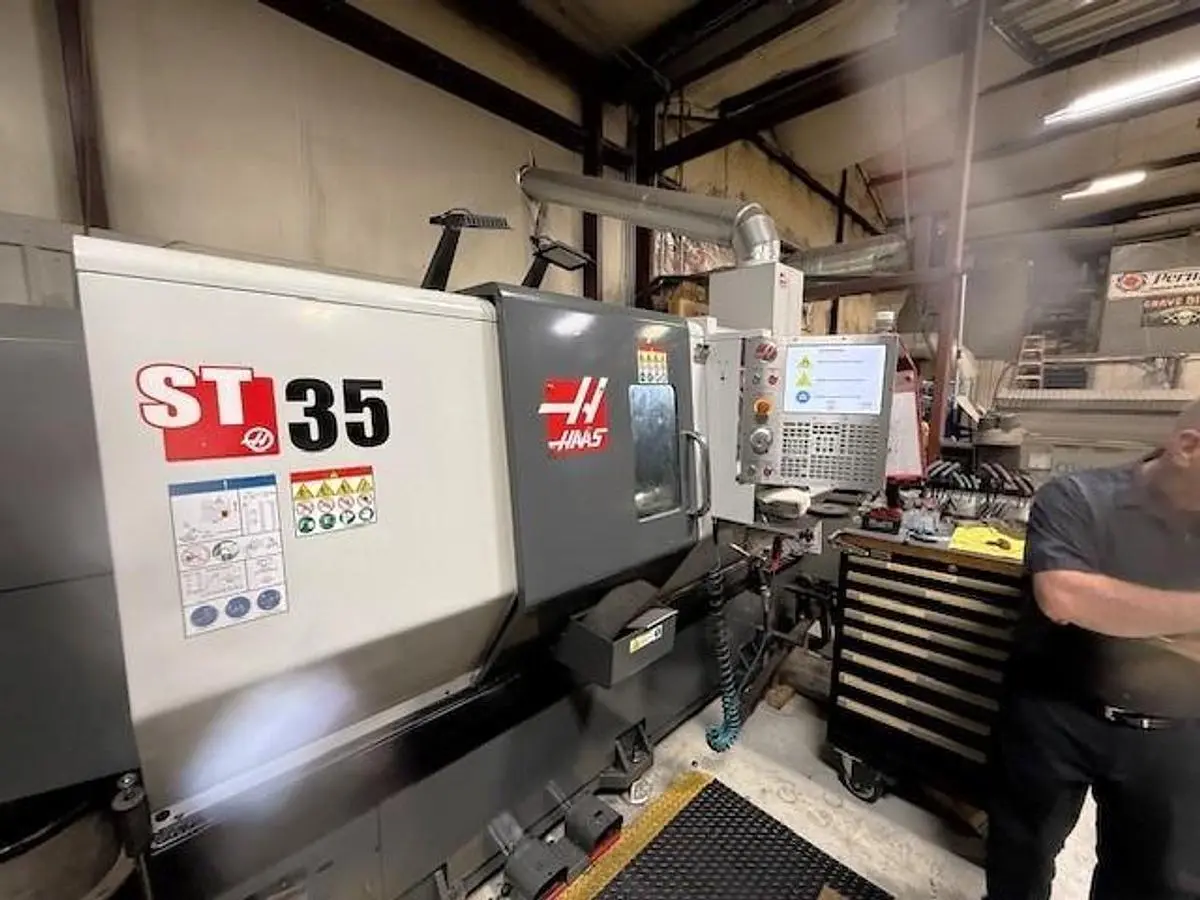

USED 2017 HAAS ST-35

Optional 2400 RPM, 40 HP, 2 Speed Geared Spindle
4" Bar Capacity
12" 3 Jaw Hydraulic Chuck
Chip Conveyor
Parts Catcher

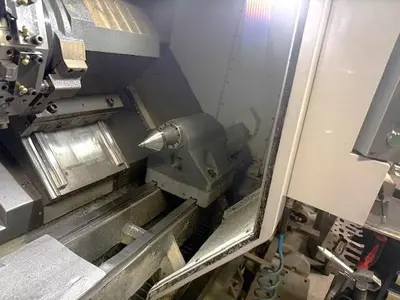

Programmable Tailstock
Tool Presetter
Visual Part Programming System
User Definable Macros
Enclosure Exhaust System
High Intensity Lighting
Coolant System with Tank & Pump
Rigid Tapping
Dual Foot Pedals for Chuck and Tailstock
USB Port Interface
RS 232 Port Interface
15" Color LCD Monitor
Wired 220V Electrics

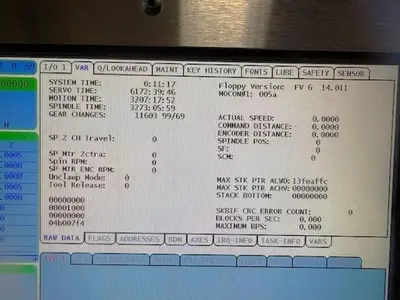

**Servo On Hours 6,172**
**Motion Hours 3,207**
**Spindle Hours 3,273**

**Available to be seen under power for inspection, Manufactured New in March 2017**
**Prices New As Equipped At $150,760**

Machine Control: Haas CNC Control

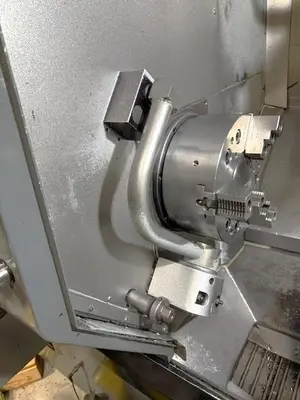

Chuck Size: 12" 3 Jaw Hydraulic
Maximum Swing: 31.75"
Maximum Turning Diameter: 21"
Maximum Machining Length: 26"
Maximum Bar Capacity: 4"
X-Axis Travel: 12.75"
Z-Axis Travel: 26"
Spindle Nose / Spindle Bore: A2-8" / 4.62"
Spindle Speeds: 2,400 RPM
Spindle Motor: 40 HP
Transmission: 2 Speed Gearbox

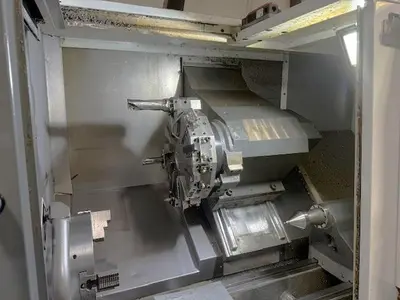

Number of Turret Positions: 12 Station Bolt on Type
Rapid Traverse Rates: 945 IPM
Tailstock Taper: MT #4
Machine Dimensions: 121" x 79" x 83"
Machine Weight: 14,300 lbs.
