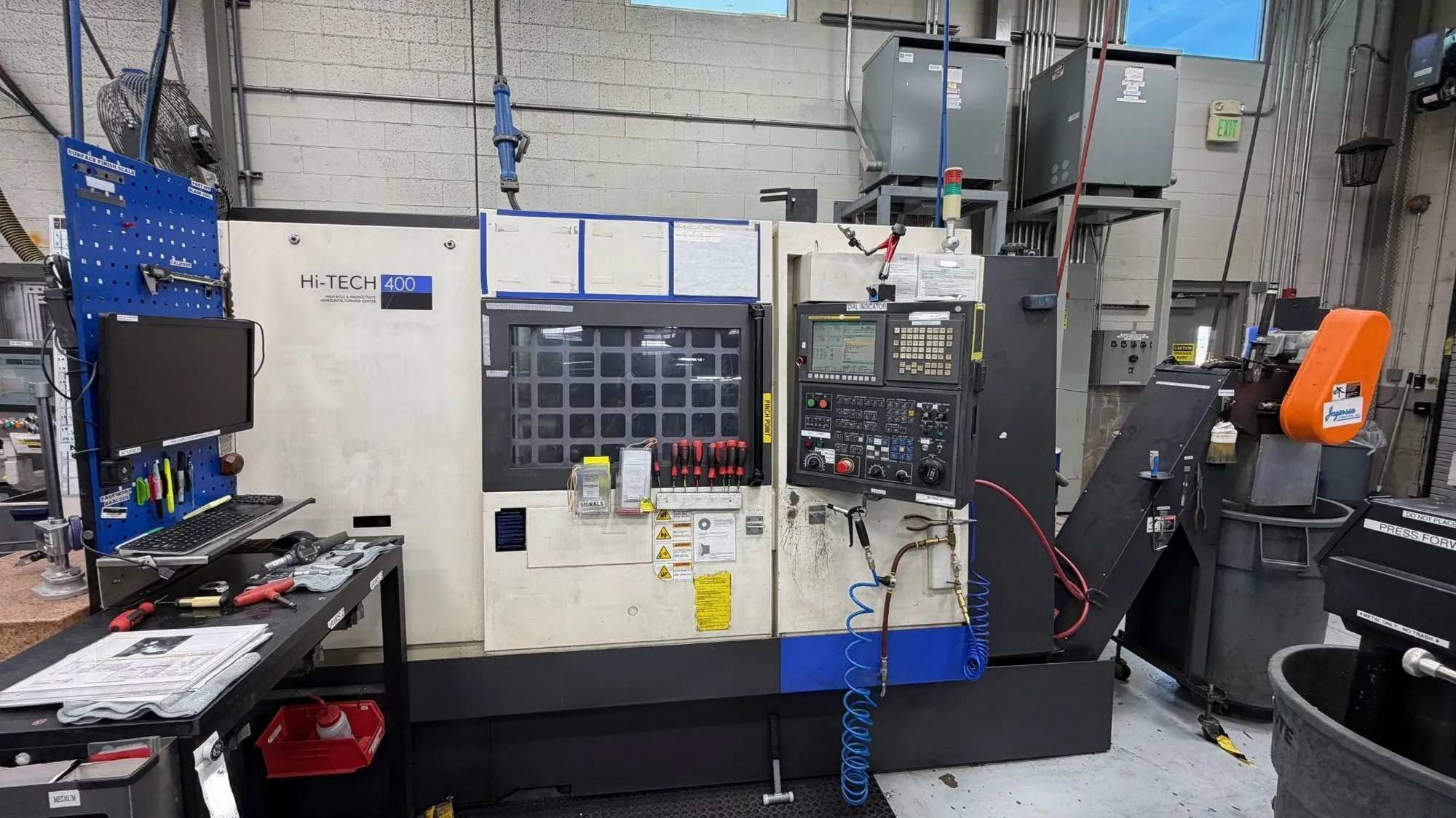

2012 Hwacheon Hi-Tech 400 CNC Turning Center with Fanuc Oi-TD Control, 12" Chuck, Tailstock, Tool Presetter, and Royal Filtermist
| Swing | 23.62" | 599.95 mm |
| Machining Length | 29.5" | 749.3 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.54" | 89.916 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 14.96" | 379.98 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-TD) | CNC (Fanuc Oi-TD) |
| Dimensions | 130" x 78" x 85" | 130" x 78" x 85" |
| Weight | 18,850 LBS | 18,850 LBS |
Maximum Swing.........................23.62"
Maximum Turning Diameter..............14.96"
Maximum Turning Length................29.5"
X-Axis Travel.........................11.02"
Z-Axis Travel.........................32.28"
Main Motor............................30 HP
Spindle Nose..........................A2-8
Chuck Size............................12"
Spindle Bearing ID....................6.3"
Through Spindle Hole Diameter.........4.13"
Bar Capacity..........................3.54"
Spindle Speed.........................2,500 RPM
Rapids Traverse Rates.................787 IPM
Number of Tools.......................12
Tailstock Quill Diameter..............3.94"
Tailstock Quill Stroke................4.72"
Tailstock Quill Taper.................#5
Machine Floor Space...................130" x 78" x 85"
Machine Weight........................18,850 LBS
Fanuc Oi-TD CNC Control
12" Chuck
Tool Presetter
12 Station Turret
Tailstock
Royal Filtermist
3-Color Alert Light
Jorgensen Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
