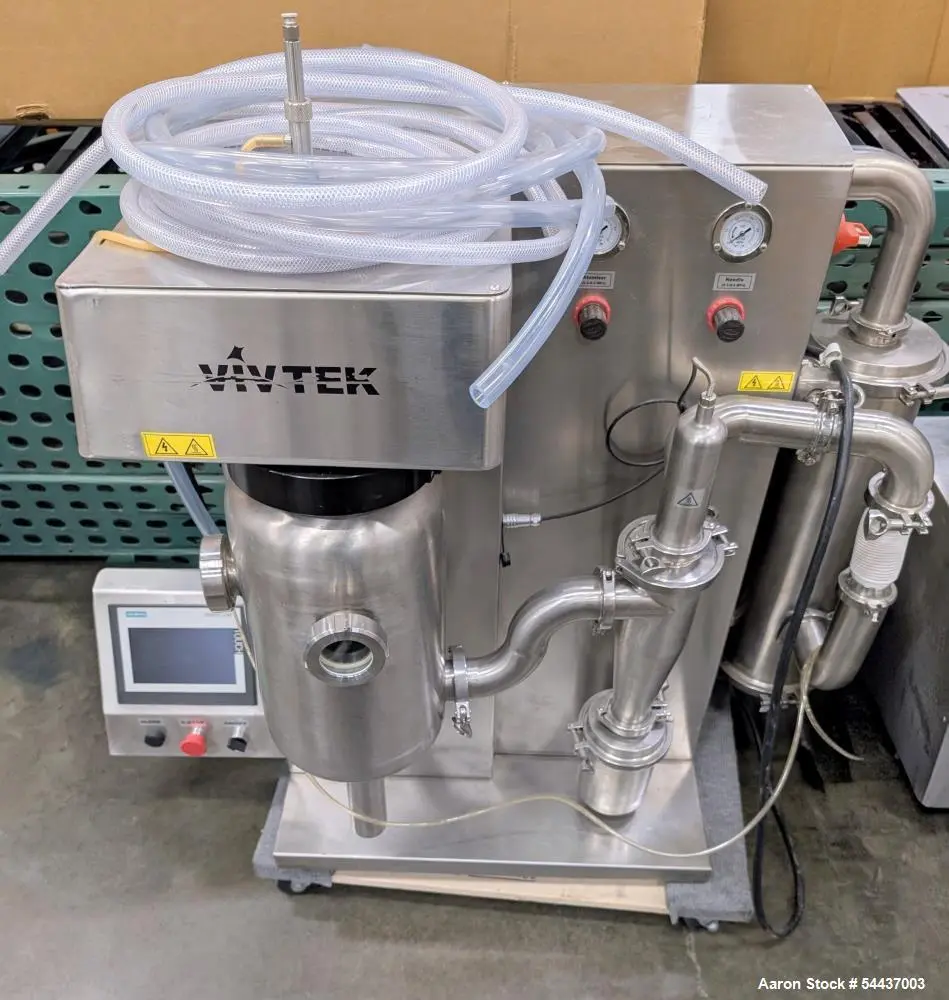

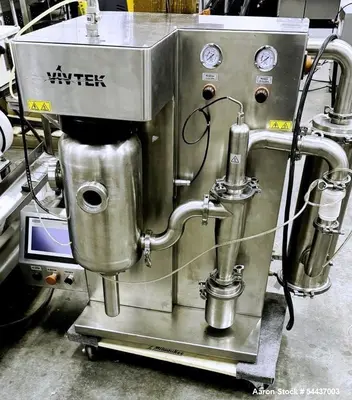

Used Vivtek LSD-H1500F/T Spray Dryer | Lab Scale Spray Drying System 1500 ml/hr

Used Vivtek Instruments Spray Dryer, Model LSD-H1500T. 1500 ml H2O/hour evaporation rate. Two-fluid nozzle w/ needle, 1/1.5mm atomizer. 12" diameter x 16" length drying chamber. 5" diameter x 20" length cyclone. 80-280 degrees C (176-536 degrees F.) inlet gas temp., 50-120 degrees C (120-248 degrees F.) outlet gas temp. 3,000 W heater. 200 cfm airflow. 50/60 hZ, 230V. Built 2022.

Used Equipment Facts About This Machine
Manufacturer: Vivtek Instruments
Model: LSD-H1500F/T
Equipment Type: Laboratory Spray Dryer
Condition: Used
Year Built: 2022

Description
Used Vivtek Instruments Model LSD-H1500F/T spray dryer designed for laboratory and pilot-scale drying applications. This compact system is ideal for R&D, product development, and small-batch production, offering precise control over drying parameters and particle formation.
With an evaporation capacity of up to 1500 ml of water per hour, this unit utilizes a two-fluid nozzle with needle and interchangeable atomizer sizes (1 mm / 1.5 mm) for flexible droplet size control. The stainless steel drying chamber and cyclone separator ensure efficient powder recovery and consistent product quality.
The system operates across a wide temperature range, allowing for drying of heat-sensitive materials as well as more robust formulations. Built in 2022, this unit is well-suited for pharmaceutical, food, chemical, and academic research environments.

Specifications

Manufacturer: Vivtek Instruments
Model: LSD-H1500F/T
Type: Laboratory spray dryer
Evaporation Capacity: <1500 ml H₂O/hour
Atomization: Two-fluid nozzle with needle
Atomizer Sizes: 1 mm / 1.5 mm
Drying Chamber:

Diameter: 12"
Length: 16"

Cyclone Separator:

Diameter: 5"
Length: 20"

Inlet Temperature Range: 80°C to 280°C (176°F to 536°F)
Outlet Temperature Range: 50°C to 120°C (120°F to 248°F)
Electrical: 208/230V / 50-60 Hz
Year Built: 2022

Applications
Ideal for laboratory-scale drying, particle formation, and formulation development in pharmaceutical, food, and chemical industries.

Products This Equipment Would Be Used For

Pharmaceutical powders
Nutraceutical powders
Food ingredients
Flavor powders
Dairy samples
Chemical compounds
Ceramic slurries
Polymer solutions
Herbal extracts
Research formulations
