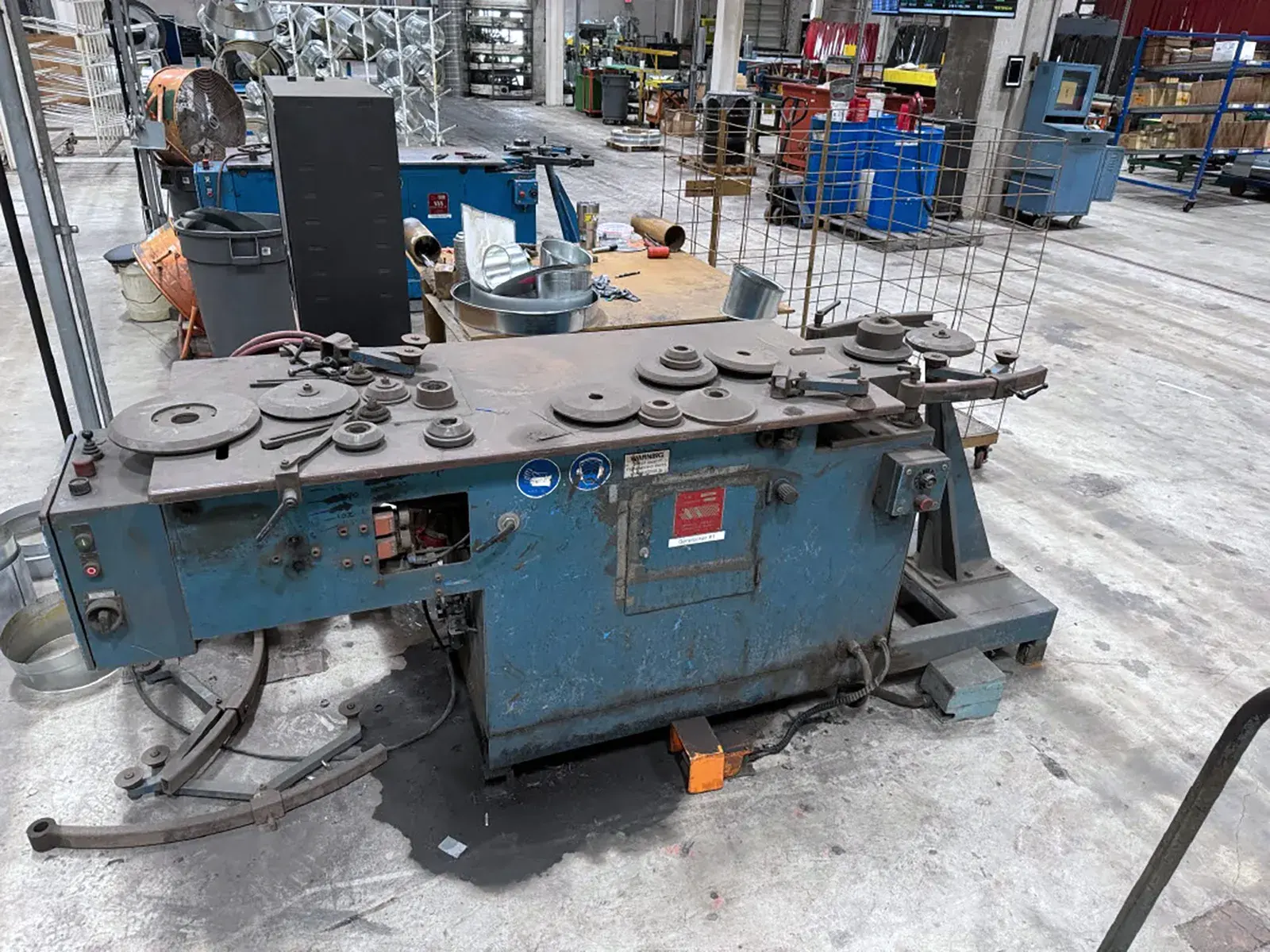

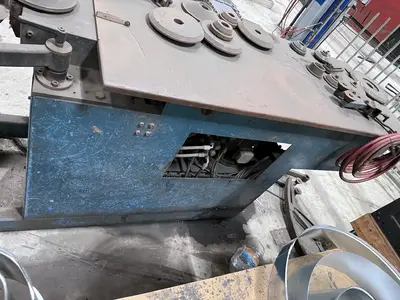

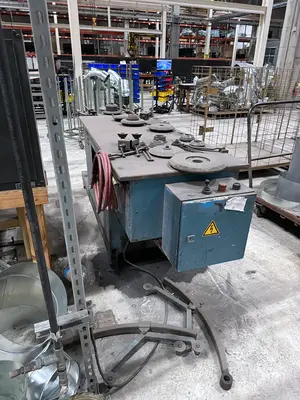

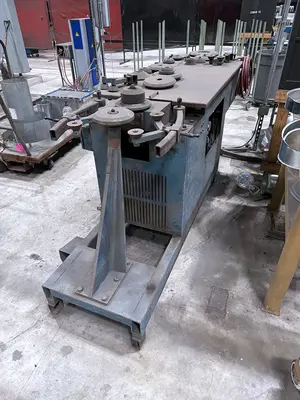

USED 2003 Spiral Helix Sport Gorelocker

Spiral Helix Sport Gorelocker (2003) is a dependable HVAC fabrication machine engineered for efficient production of round duct fittings. It forms airtight, precision standing-seam elbows, reducers, end caps, and offsets with consistency. Ideal for sheet metal shops seeking reliable performance, improved productivity, and high-quality duct component manufacturing.

Material Thickness (Gauge Capacity): 18 to 26 ga (1.2–0.5 mm)
Material Types: Galvanized steel, stainless steel, aluminum
Gore Diameter Range: 9" to 50" (225 to 1250 mm)
Elbow Angles Supported: 90°, 60°, 45°, 30°, custom angles
Flange Height Range: 0.375" to 0.750" (9.5 to 19 mm)
Edge Forming Functions: Flanging, closing, lockseam forming
Segment Types: Elbows, reducers, transitions, segmented fittings

Multiple Hardened Steel Forming Rolls
Flanging / Closing / Lockseam Roll Sets
Hydraulic Roll Engagement System
Gear‑Driven Forming Head
Manual Keyed‑Shaft Roll Change System
