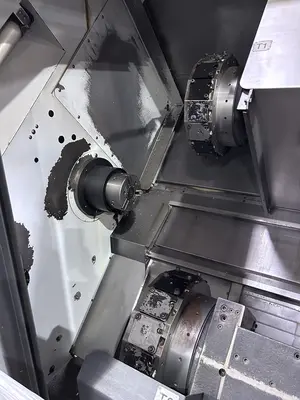

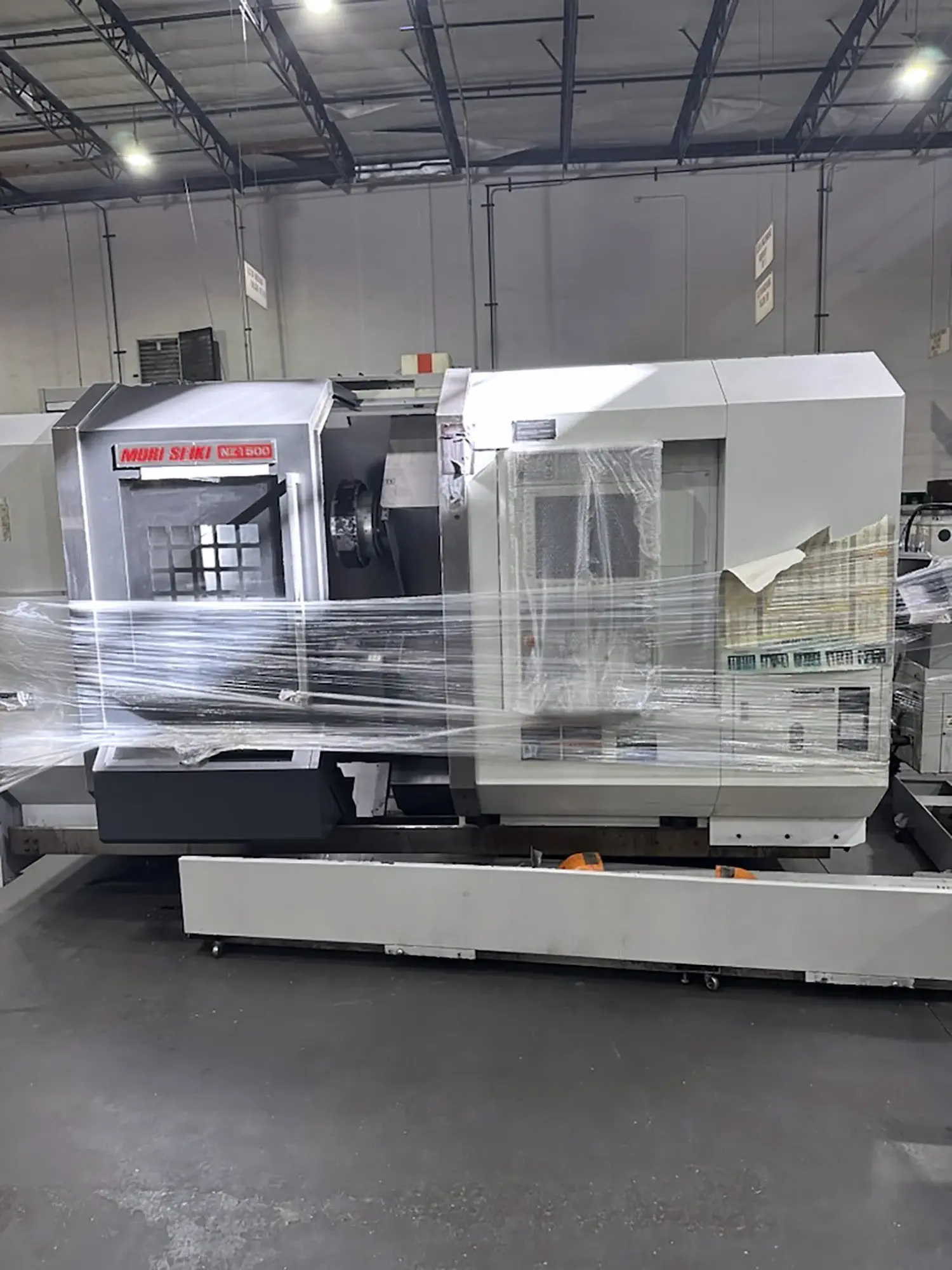

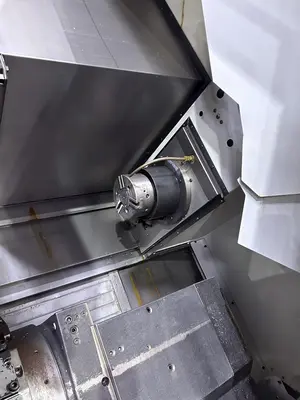

USED 2011 Mori Seiki NZ1500T2Y2

This Mori Seiki NZ1500T2Y2 CNC Lathe (2011) with MSX-701 III control is a high-precision multi-axis turning and milling center built for complex, high-productivity machining. Designed for single-setup processing of intricate parts, it delivers exceptional accuracy in turning, milling, and drilling operations. Its robust construction supports heavy-duty cutting and efficient metal removal for demanding industrial applications.

Swing over Bed: 31.5"
Swing over cross slide: 31.5"
Max Distance Between Spindle Noses: 44.4"
Max Turning Diameter: 12.5"
Standard Turning Diameter: 7.9"
Max. workpiece diameter: 11.8"
Max. Turning Length: 31.9"
Bar Capacity: 2.0"
X1, X2: 8.3
Z1, Z2: 31.9
Max Spindle Speed: 6000 RPM 2 Speed Ranges
Spindle Nose: JIS A2-5
Through Spindle Hole Diameter: 2.4"
Max Spindle Indexing Increment: .001
(2) 16 Station Turrets 32 Tool Stations:
Turret Index Time: 18 Sec 1 Station
Rotary Tool Spindle Speed: 6000
Power: 3 Phase, 220V
Y1: 4.3 <+ 2.6, -1.8>
Y2: 4.3 <+ 1.8, -2.6>
X1, X2:: 1181.1 IPM
Y1, Y2:: 787.4 IPM
Z1, Z2:: 1968.5 IPM

MSX-701 III CNC Control
Tool Pre-Setter
3-Jaw Chuck on Main & Sub Spindle
Cooljet System Unit
Coolant Tank
Chip Conveyor
Parts Catcher
Foot Controls
