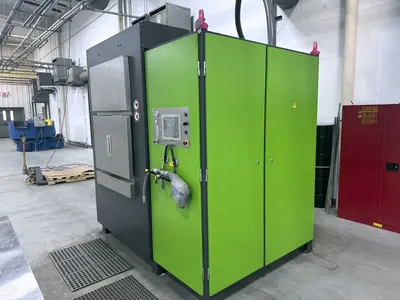

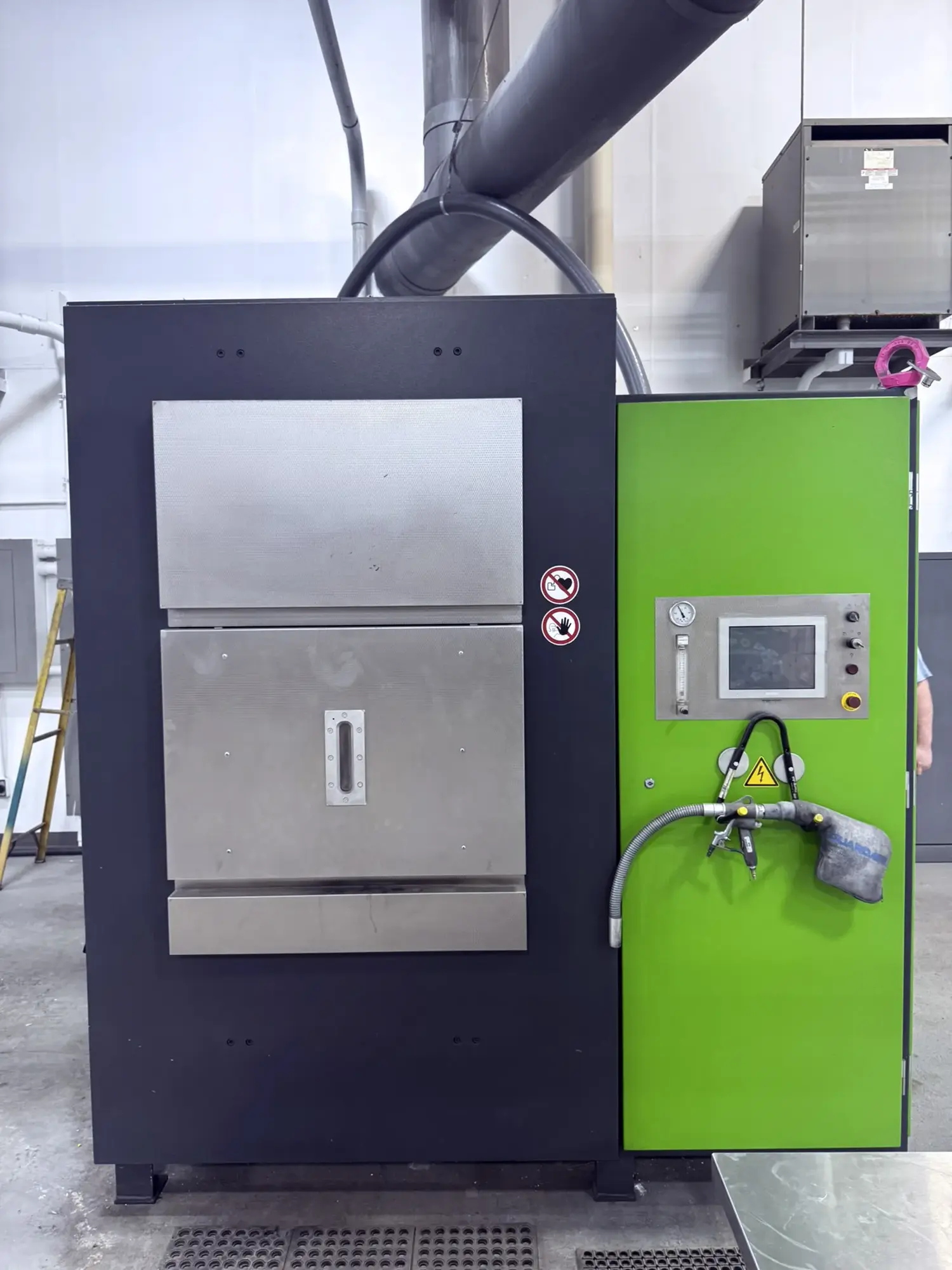

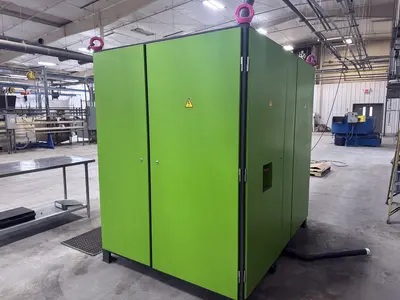

USED 2020 Dr. Fritsch DSP 517

Technology for high-density sintering of diamond tools, such as segments and grinding wheels, as well as advanced ceramics and hard metals. Ideal for industries requiring precision sintering of materials like Boron Carbide, Alumina, and Titanium Diboride. Perfect for diamond tool manufacturing, powder metallurgy, and advanced material research.

Core Sintering Specifications:
Pressing Force: 67.7 Tons nominal (with N/D switching options ranging from 4.38 to 51.82 Tons or 5.73 to 67.7 Tons).
Temperature Range: 0 – 2,192°F (Standard thermocouple range).

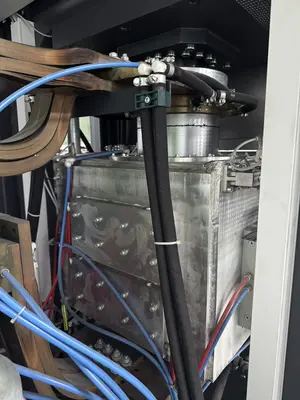

Graphite Electrode Dimensions: 13.78″ x 13.78″ x 3.149″.
Electrode Opening Height: 2.95″ minimum to 8.85″ maximum.
Effective Cylinder Pressing Area: 23.85 sq. in.

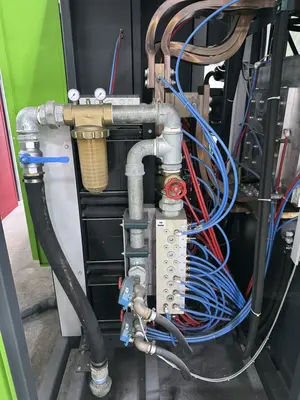

Fluid & Gas Consumption:
Cooling Water Consumption: Approximately 58.12 gal/min.
Cooling Water Supply Temperature: 64.4°F – 71.6°F.
Cooling Water Pressure: 29 – 58 psi (Differential pressure: 14.5 – 29 psi).
Compressed air consumption: Approximately 5.28 gal/min at 58 – 87 psi.
Inert Gas Consumption: 79.25 – 264.17 gal/min at 14.5 – 72.52 psi.
Electrical Requirements:
Total Electric Power: Approximately 250 kVA.
Maximum Heating Power: 205 kVA (standard) or up to 240 kVA (optional).
Supply voltage: 3 x 400V, 50/60Hz

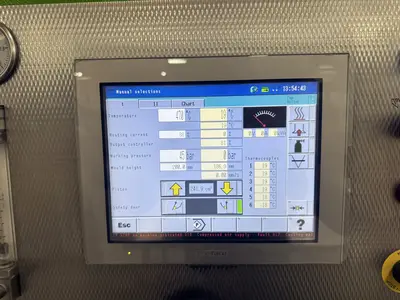

12" Operator Touch Screen Panel
Programmable Control (Precise control of sintering parameters temperature
pressure
stroke
and time)
Stroke Calibration Fixture
Thermocouple Calibration Device
