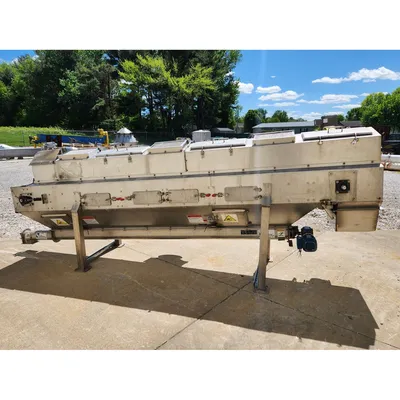

USED BUHLER C1-24-13 XXC
Overview
Description

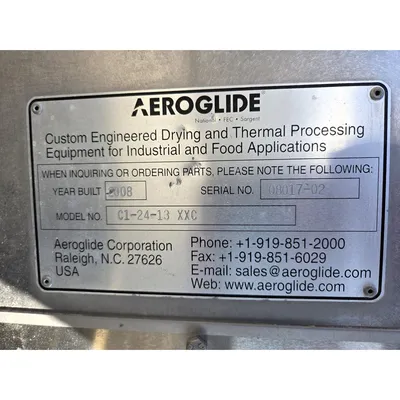

Serial No: 08017-02

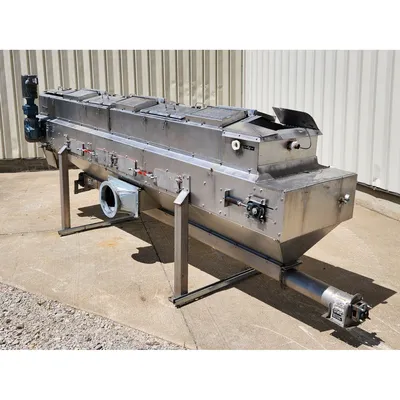

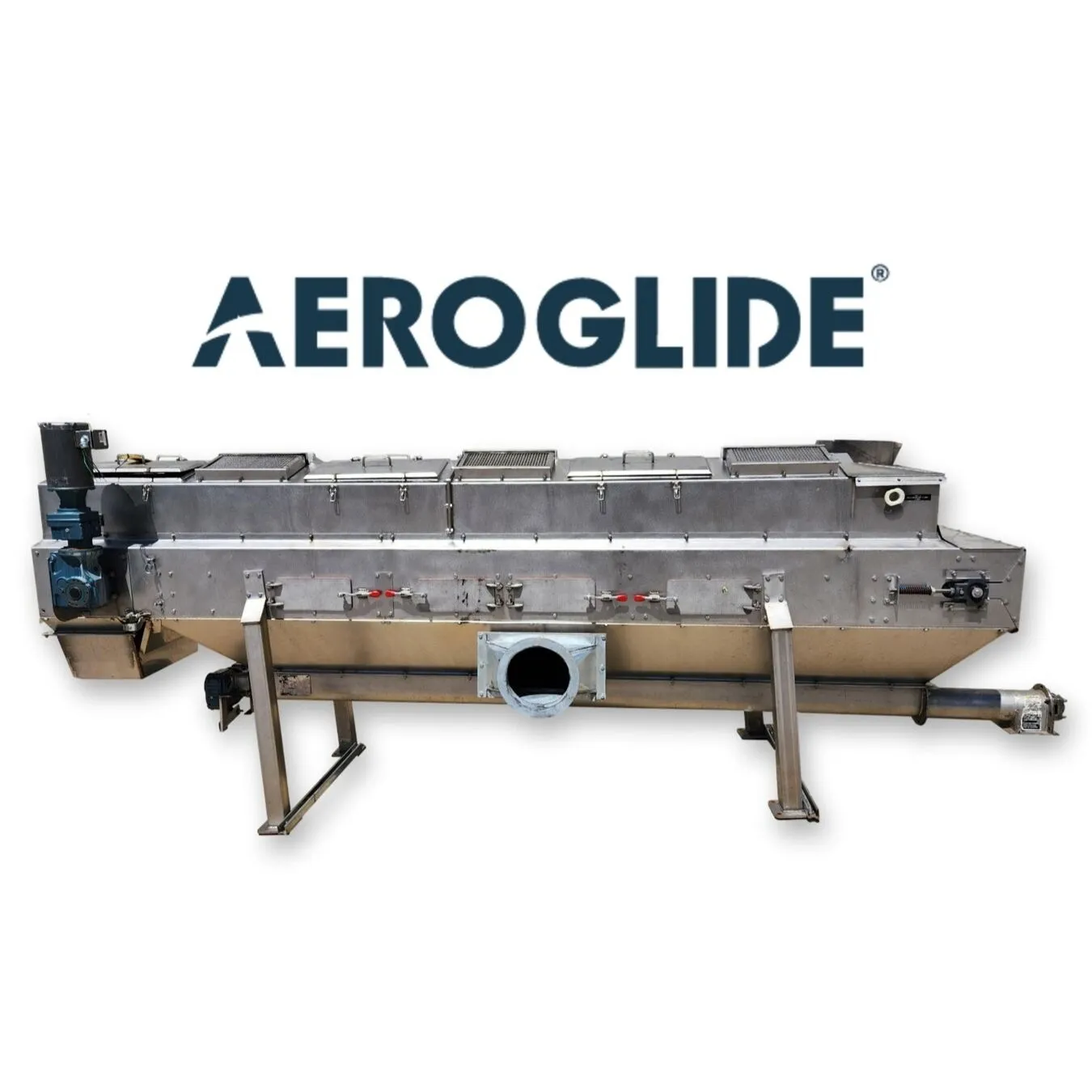

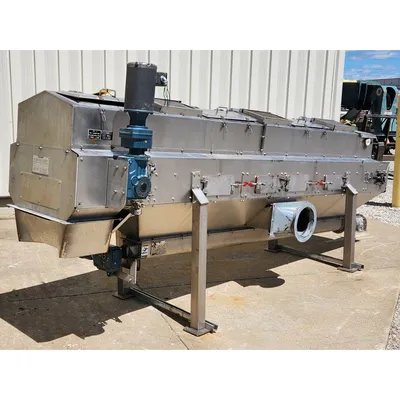

High-capacity continuous cooling system (non-insulated), 5° incline, stainless steel sanitary construction.

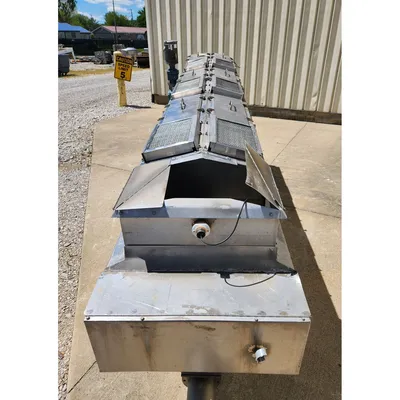

Top cover with inspection & diffuser panels and an inlet capacitive sensor.
Product Inlet: 12" X 10" (51" above base)
Product Discharge: 20" X 13" (26" clearance under)
Process Air Inlet: 17.5"W X 7.5" flange

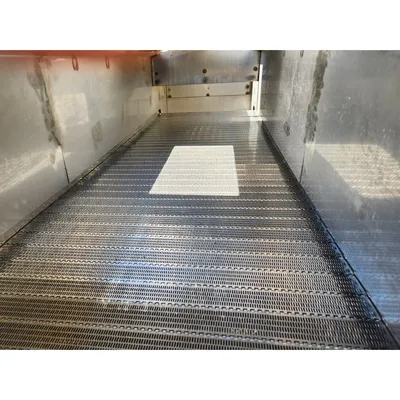

Belt: 24" wide X 12' long stainless steel slotted slats, 2" pitch, roller chain glides
Product spreader blade (adjustable) and bottom belt scraper.
Bottom hopper directs conveyor fines into a 4"Ø X 11'-6" screw conveyor (44.5RPM auger speed).

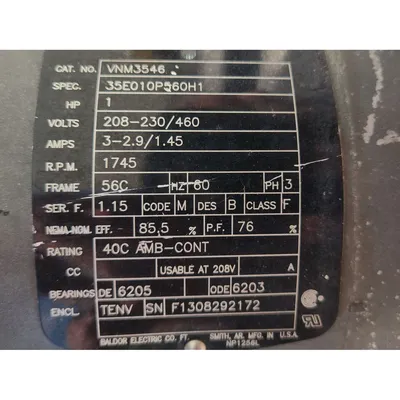

Electrical Service each (belt & auger): 230/460V, 60Hz, 3ph
Speed Controllers sold separately.
FOB: Millwood, WV 25262
Specifications
Item: 21588 Model : C1-24-13 XXC
MFG: Buhler
