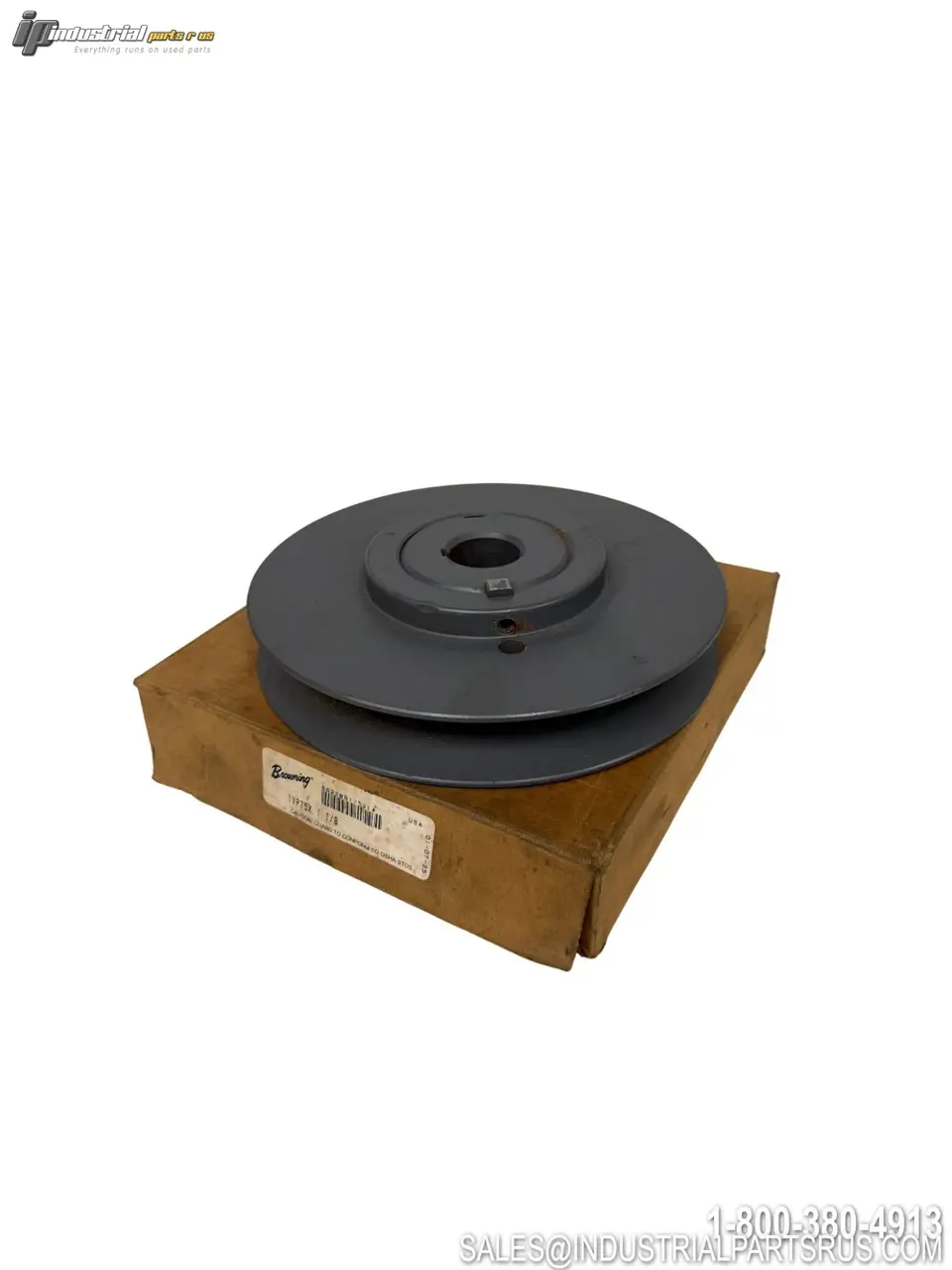

The Browning 1VP75X is a variable pitch sheave from the VP series, designed for adjustable speed control applications. This single groove, cast iron sheave provides flexible belt drive solutions for fans, blowers, and other industrial equipment requiring variable speed operation.
Specification
Value
Brand
Browning
Model/Part Number
1VP75X
Type
Variable Speed Pulley
Series
VP
Number of Grooves
1
Outside Diameter
7.5 inches
Material
Cast Iron
Belt Section Size
4L, A, 5L, B, 5V
Bore Type
Finished with Keyway
Keyway Size
1/4 x 1/8 inches
Setscrew Type
5/16-18 Knurled
Maximum Horsepower
Up to 25 HP
Minimum Pitch Diameter
5.9 inches
Maximum Pitch Diameter (5V)
7.4 inches
Face Width Range
7/8 to 1-1/4 inches
We warranty all items for 30 days from date of purchase.
| Weight | 6.00 LBS | 6.00 LBS |
SKU: AI1293
UPC: 679523686246
Condition: New
Availability: In Stock
Weight: 6.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686246
Manufacturer: Browning
Part Number: 1VP75X
Shelf: A-3
Model: 1VP75X
MPN: 1VP75X
Type: Variable Speed Pulley
