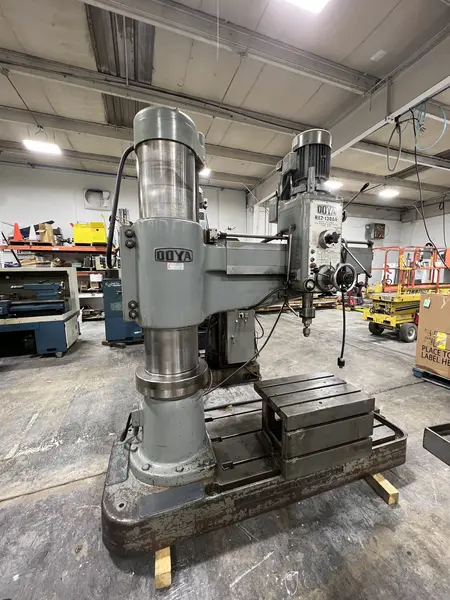

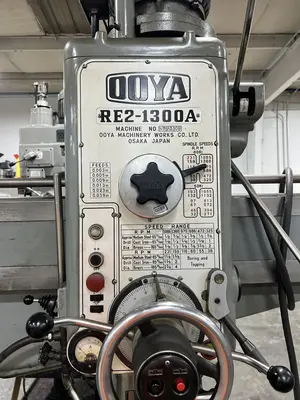

NEW OOYA RE2-1300A

OOYA Radial Arm Drill 4'x13"
The Ooya RE2-1300A is a Japanese-made 4-foot by 13-inch radial arm drill (roughly 1300mm arm) known for heavy-duty metalworking. Key specs often include 12 spindle speeds (38–1985 RPM), a 5MT spindle taper, 10-inch spindle travel, and hydraulic clamping. It typically features a 54" x 29" base and a 13-5/8" column diameter

| OOYA RE2-1300A | Used
Specifications:
Location: Idaho. United States
Description:
This drill is in super good condition. It is currently under power, and ready to be shipped.
Diameter of column 12-5/8"
Column surface to spindle center, max. 49-3/8"
Column surface to spindle center, min. 11-5/8"
Spindle speeds (24) 32 to 1985 RPM
Feeds (6) .003 to .039
Spindle taper MT #5
Diameter of spindle 2-3/8"
Diameter of quill 3-1/16"
Vertical travel of spindle 11-13/16"
Horizontal travel of spindle head 7-3/4"
Vertical travel of arm 25-5/8"
Base to spindle, maximum 51-3/4"
Base to spindle, minimum 13"
Drilling capacity, steel 2-1/4"
Drilling capacity, cast 2-5/8"
Motor 5 HP / (7.5 HP)
RPM 1730 RPM (1935)
Volts 220 / 440 volts
Phase 3
Hz 60
Amps 13.4 / 6.7
Approximate dimensions 75" x 35" x 85" high (131″ L x 34″ W x 96″ H)
Approximate weight 6,100 lbs. (8,000 lbs)

To the best of our knowledge all details listed below are deemed correct. It is the buyers responsibility to confirm ALL details prior to purchase.

| OOYA RE2-1300A | Used
Specifications:
Location: Idaho. United States
Description:
This drill is in super good condition. It is currently under power, and ready to be shipped.
Diameter of column 12-5/8"
Column surface to spindle center, max. 49-3/8"
Column surface to spindle center, min. 11-5/8"
Spindle speeds (24) 32 to 1985 RPM
Feeds (6) .003 to .039
Spindle taper MT #5
Diameter of spindle 2-3/8"
Diameter of quill 3-1/16"
Vertical travel of spindle 11-13/16"
Horizontal travel of spindle head 7-3/4"
Vertical travel of arm 25-5/8"
Base to spindle, maximum 51-3/4"
Base to spindle, minimum 13.625"
Drilling capacity, steel 2-1/4"
Drilling capacity, cast 2-5/8"
Motor 5 HP / 1730 RPM
Volts 220 /440 volts
Phase 3
Hz 60
Amps 13.4 / 6.7
Approximate dimensions 75" x 35" x 85" high
Approximate weight 6,100 lbs.

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

Key Features:
Hydraulic Clamping: Head and column
Power Elevation: Motorized arm raising/lowering

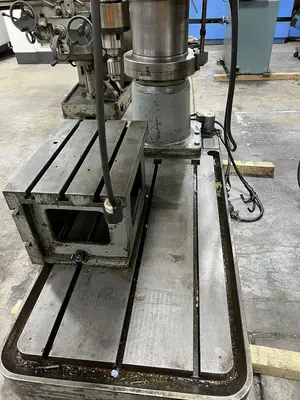

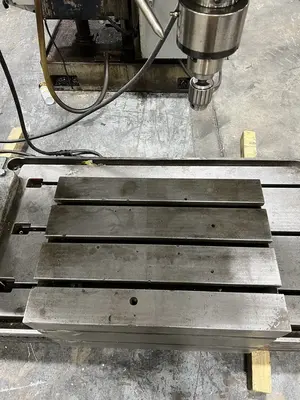

Accessories: Often includes a box table (e.g., 54" x 29" base) and coolant system
