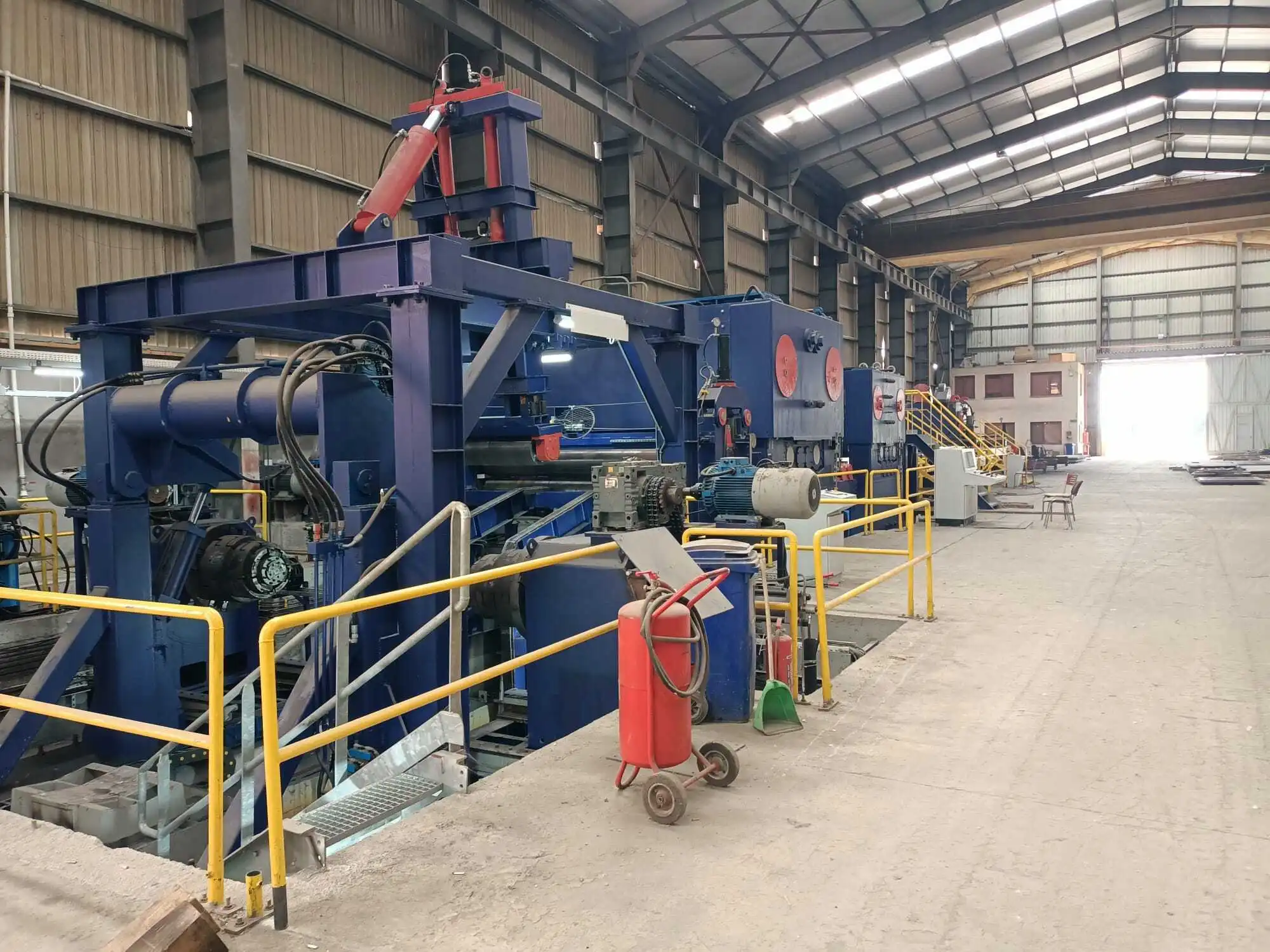

USED PM / Sket 2500mm x 25mm x 72,000lb CTL Line

Make: Production Machinery / Sket
Max Material Width: 2500mm
Material Thickness: 8mm - 25mm
Coil Weight: 36 Ton
Line Speed: 25 meters / min
Direction: L-R
Dimensions: 54m x 13m
Electrics & Drives: 2024
Sheet Max Length: 12 meters
Electrics :380 / 50 / 3 Phase
Drives: ABB, Control Techniques

Uncoiler & Coil Car
Pit Type Lift & Traverse
Cone Type Uncoiler
Sliding Base
Feed Up Motor
Powered Hold Down Roll

Powered Peeling Table
Driven Pinch Rolls
Roll Size: 400 x 3300mm

Heavy Gauge Straightener
Make: UBR
Number of Work Rolls: 7
Roll Size: 340mm x 3150mm
Motor: 132 Kw
Weight: 105 Ton

Light Gauge Straightener
Number of Work Rolls: 7
Roll Size: 270mm x 3150mm
Motor: 90 Kw
Weight: 61 ton

Flying Shear
Capacity: 3000mm x 25mm
Powered Traverse
Weight: 45 ton
Driven Exit Conveyor

Stacking System
Drop Type Stacker
Driven Exit Conveyors

Electrics, Hydraulics, Controls
