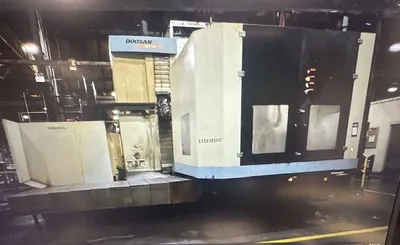

For sale: 2011 DOOSAN DBC 110II CNC 4 Axis Boring Mill. Key features: 70.8 x 55" table, 4.3" spindle, 4,000 RPM, 78.7" X-axis travel. Equipped with FANUC control, spindle chiller, and more. Ideal for complex machining tasks. Contact for details.
| Table Size - L | 70.8" | 1,798.3 mm |
| Table Size - W | 55" | 1,397 mm |
| Table Capacity | 15,432 lb | 6,999.8 kg |
| Table Indexing | .001 | .001 |
| Spindle Nose To Table Center | 2.9" ~ 68.9" | 2.9" ~ 68.9" |
| Spindle Nose To Table Top | 0" ~ 59" | 0" ~ 59" |
| Spindle Diameter | 4.3" | 109.22 mm |
| Spindle Taper | 50 | 50 |
| Spindle Speed | 4,000 RPM | 4,000 RPM |
| Spindle Torque | 2092 | 2092 |
| Number Of Ranges | 2 | 2 |
| Main Motor | 35 hp | 26.1 kW |
| X - Axis Travel | 78.7" | 1,999 mm |
| Y - Axis Travel | 59.1" | 1,501.1 mm |
| Z - Axis Travel | 47.2" | 1,198.9 mm |
| W - Axis Travel | 19.7" | 500.38 mm |
| Automatic Tool Changer Capacity | 60 | 60 |
| Tool Diameter | 5.1", 9.8" | 5.1", 9.8" |
| Max Tool Length | 23.6" | 599.44 mm |
| Max Tool Weight | 55.1 lb | 25 kg |
| Machine Weight | 63,933 lb | 28,999.6 kg |
| Control | CNC (FANUC 31i - A CNC COLOR CONTROL) | CNC (FANUC 31i - A CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
FANUC 31I - A CNC COLOR CONTROL
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
640 METERS PART PROGRAM STORAGE
AICC II 200 BLOCKS
3RD AND 4TH REFERENCE POSITION RETURN
HELICAL INTERPOLATION
SPINDLE THERMAL COMPENSATION
48 PAIRS WORK COORDINATES
200 TOOL OFFSETS
THROUGH SPINDLE COOLANT
FULL HIGH TOP SPLASH GUARDING
BIG PLUS CAT 50 TAPER
R.S. 232 PORT
HELICAL INTERPOLATION
SYNCHRONOUS TAPPING
SPINDLE CHILLER
STEEL WAY COVERS
EMBEDDED ETHERNET FUNCTION
SPINDLE CHILLER
HAND HELD MPG
CHIP CONVEYOR OUTSIDE/UPRIGHT
ALL AVAILABLE MANUALS
