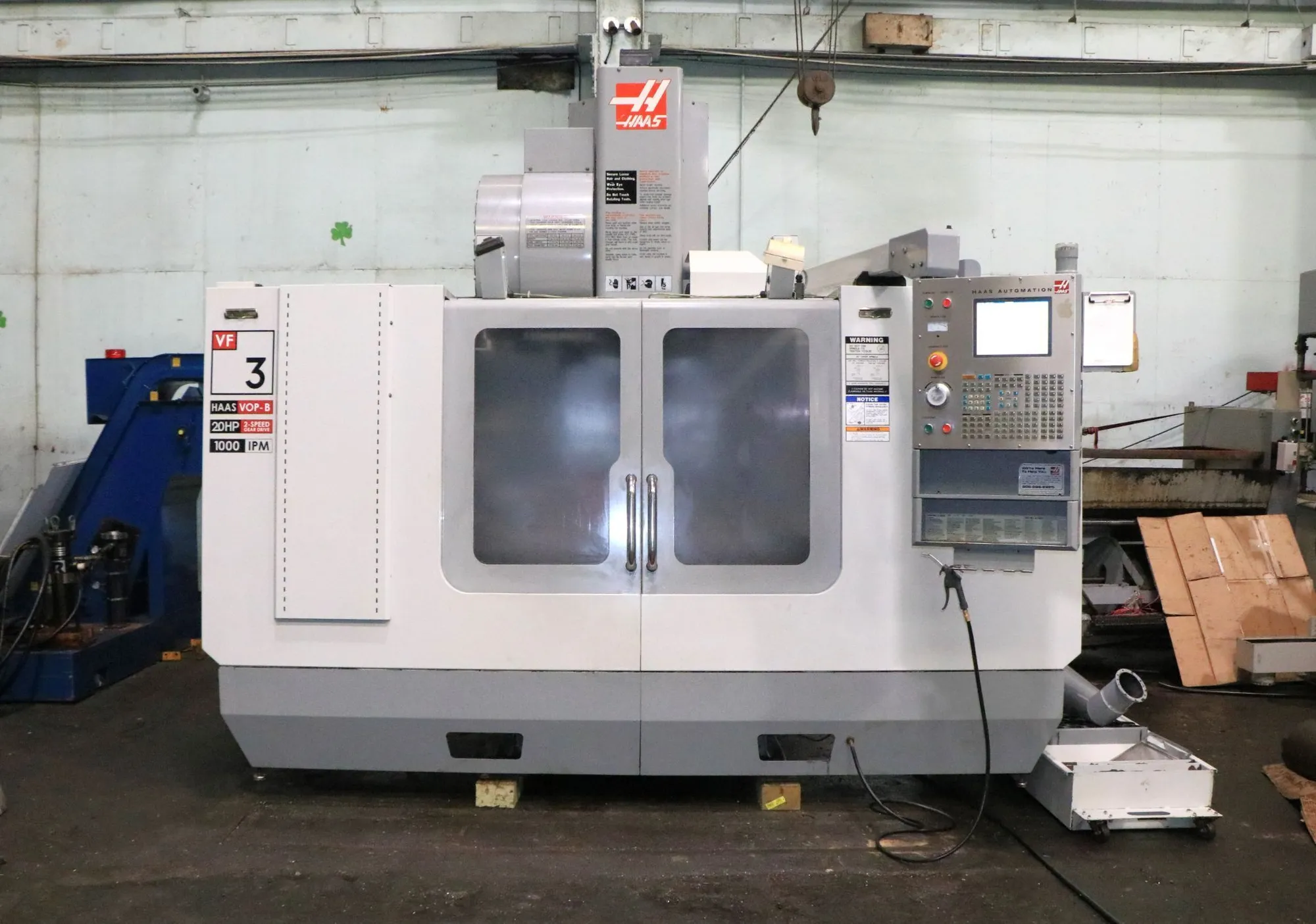

2005 HAAS VF-3B Vertical Machining Center with 48" x 18" table, 40"x20"x25" travel, and 7,500 RPM spindle. Features include gearbox, chip auger, high intensity lighting, and 24 ATC. Servo: 13,432 hrs, Motion: 10,237 hrs, Spindle: 11,297 hrs.
| TABLE LENGTH | 48" | 1,219.2 mm |
| TABLE WIDTH | 18" | 457.2 mm |
| TABLE CAPACITY | 3,500 lb | 1,587.6 kg |
| X-AXIS TRAVEL | 40" | 1,016 mm |
| Y-AXIS TRAVEL | 20" | 508 mm |
| Z-AXIS TRAVEL | 25" | 635 mm |
| SPINDLE SPEED | 7,500 RPM | 7,500 RPM |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 24 | 24 |
| MAX RAPIDS | 1,000 in/min. | 25.4 m/min. |
| APPROX MACHINE WEIGHT | 12,500 lb | 5,669.9 kg |
| APPROX MACHINE DIMENSIONS | 110" X 118" X 117.5" | 110" X 118" X 117.5" |
2-SPEED GEARBOX
CHIP AUGER
HIGH INTENSITY LIGHTING
SIDEMOUNT TOOL CHANGER (24 ATC)
PROGRAMMABLE COOLANT NOZZLE
ADVANCED TOOL MANAGEMENT
4TH AXIS DRIVE AND WIRING
RIGID TAPPING
SPINDLE LOAD MONITOR
ROTATION & SCALING
M19 SPINDLE ORIENTATION
QUICK CODE
HOURS AS OF 2/2025:
- SERVO TIME: 13,435 HOURS
- MOTION TIME: 10,237 HOURS
- SPINDLE TIME: 11,297 HOURS
REPLACEMENT COST FOR ABOVE EQUIPPED MACHINE IF PURCHASE NEW: $109,665
MACHINE IS AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE
