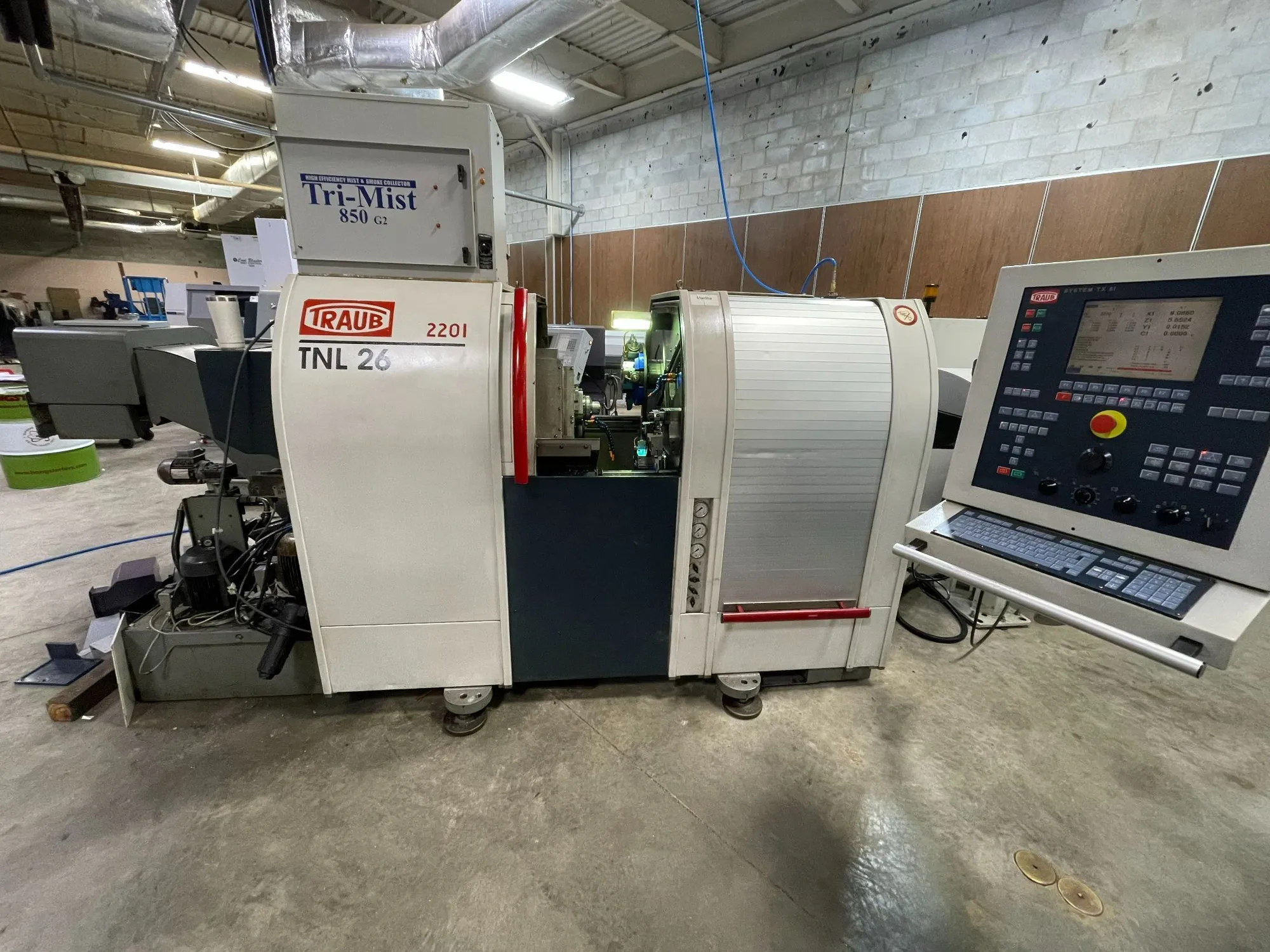

Traub TNL 16/26 CNC Swiss Lathe, New in 2001
Original owner
| Capacity | 1" | 25.4 mm |
| Power | 26 hp | 19.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # Axis | 13 | 13 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | Full C | Full C |
| Sub Spindle Indexing | Full C | Full C |
| Live Back Working Tools? | Yes | Yes |
| Control | CNC (SIEMENS TX8I) | CNC (SIEMENS TX8I) |
| Dimensions | 130" x 80" x 112" | 130" x 80" x 112" |
| Weight | 10,500 lbs | 10,500 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
CNC Control: Traub/Mitsubishi TX 8i
Number of Programmable Axes: 13
Turning Diameter: 1.023"
Turning Length: 9.842" per stroke
Bar Capacity: 26mm
Spindle Speed: 6,000 RPM
Spindle Drive Motor: 26 HP
Sub-Spindle Turning Diameter: 26mm
Sub-Spindle Turning Length: 5.512"
Sub-Spindle Speed: 6,000 rpm
Machine Dimensions w/Conveyor: 130" x 80" x 112
Machine Weight: 10,500 lbs
Traub/Mitsubishi TX 8i CNC Control
LNS Hydrobar Express 326 S2 Magazine Barfeed
Knoll Chip Conveyor
All Toolng, accessories and parts included
