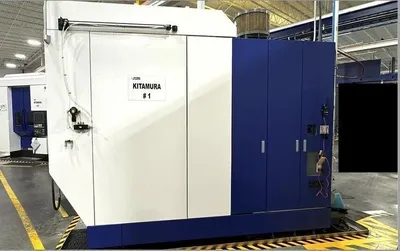

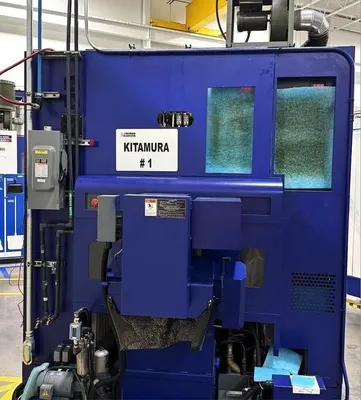

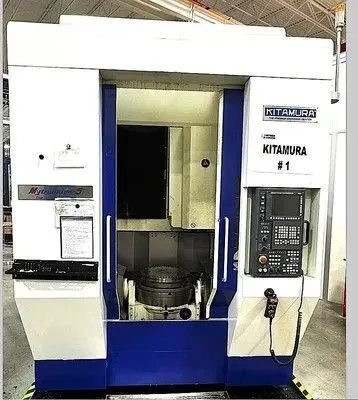

KITAMURA Mytrunion 5-axis Vertical Machining Center, used. 32" x 29.3" x 19.7" travel, 20,000 RPM spindle, 30 hp, CAT 40 taper. Features include FANUC 30i CNC, helix interpolation, rigid tapping, 50-station tool changer, chip conveyor, 5 Axis simultaneous cutting, and more.
| X | 32" | 812.8 mm |
| Y | 29.3" | 744.22 mm |
| Z | 19.7" | 500.38 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 50 | 50 |
| Taper | Cat 40 | Cat 40 |
| Control | CNC (Fanuc 30i) | CNC (Fanuc 30i) |
Table Length: 24.8”
Table Width: 19.7”
Spindle Taper: Cat 40
Spindle Speed Range: 20 ~ 20,000 rpm
Spindle motor power: 30 hp
Max longitudinal cutting feed (X-Axis): 1,968”/min
Max transversal cutting feed (Y-Axis): 1,968”/min
Max vertical ram cutting feed (Z-Axis): 984”/min
X-Axis travel: 32.3"
Y-Axis travel: 29.3"
Z-Axis travel (Ram Stroke): 19.6”
Machine Weight: 30,000 Lbs.
Table to Spindle Nose:: 3.9″ – 23.6″
Max Tool Size: 5.91″ X 11.8″
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second
Electrical: 220/60/3 - 200/50/3

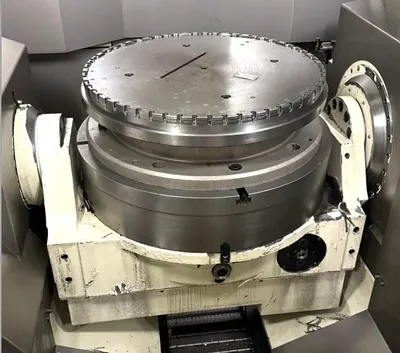

A Axis: 150° (Table Tilt)
C Axis: 360° (Table Rotate)
Rapid A: 2000 Degree Per Minute
Rapid C: 6000 Degree Per Minute
Max Weight on Table: 880 Lbs.
T-Slot: 0.7″ X 3 Slots
Cutting Feed Rate: 984 Inch Per Minute
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
PCMCIA Card Slot
FANUC Series 30i CNC Control
24" 4-Jaw Rotary Chuck
Heavy Duty Taper Milling
All Box Way Construction & Rigidity
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
Fully Installed and under power for inspection
High Speed 50 Station Tool Changer
