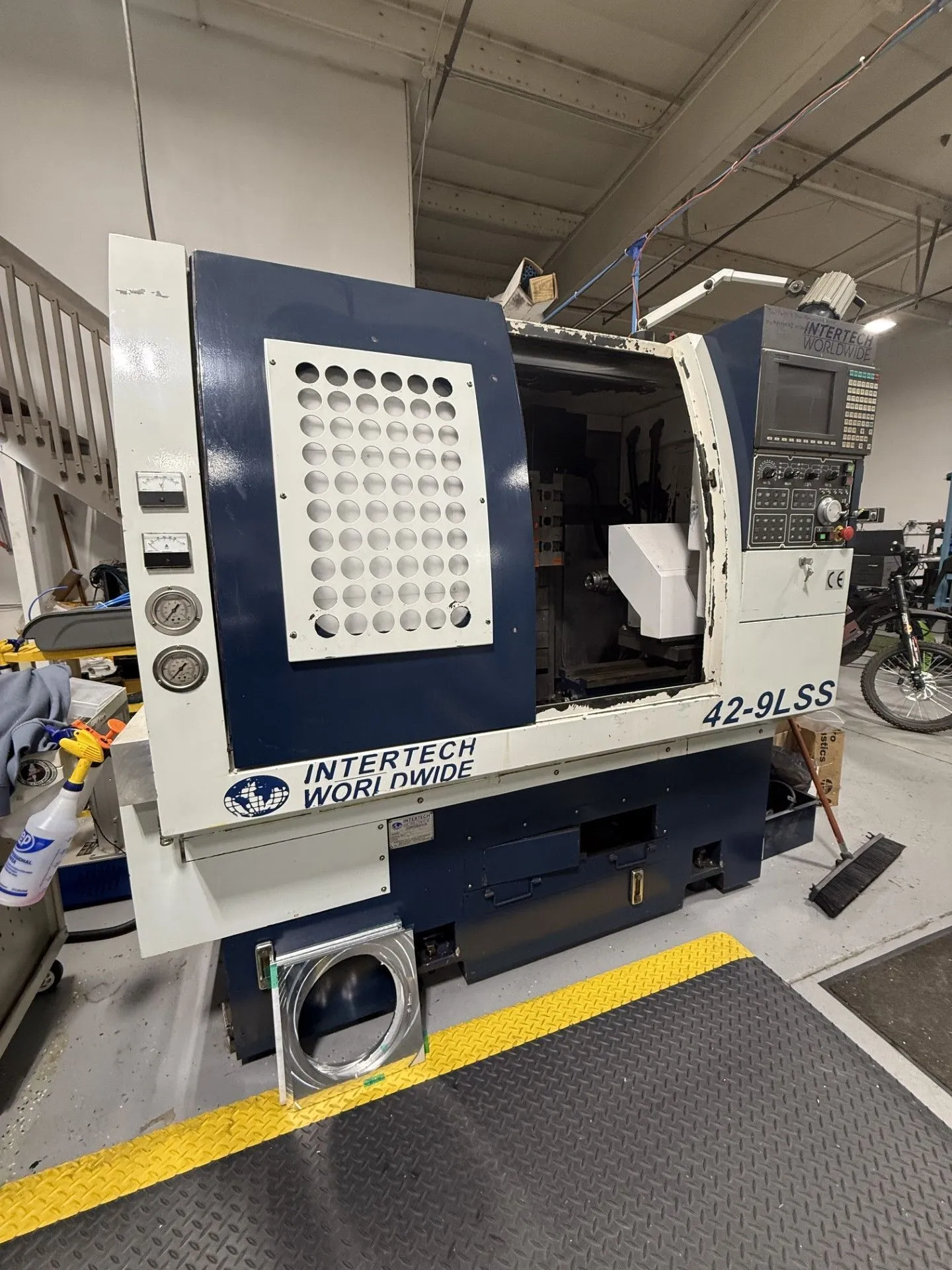

Intertech 42-9LSS CNC Turning Center
New 2004
| Machining Length | 10.23" | 259.84 mm |
| Bar Capacity | 1.65" | 41.91 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 1.6" | 40.64 mm |
| Tailstock | No | No |
| Sub Spindle | Yes | Yes |
Thru Spindle Capacity (Main Spindle): 1.65" (42mm)
Thru Spindle Capacity (Sub Spindle): 1.18" (30mm)
BarFeed Capacity (As Presently Equipped): 48" Long X 2.55" Diam. Bars
Max. Distance Between Collet Noses: 18"
Max. Spindle Speed (Both Spindles): 4,000 RPM
Main Spindle Motor 10 / 15 HP
Sub-Spindle Motor 2.6 / 3.5 HP
Long. Working Tool Position (Main Spindle): 4
Cross Working Tool Position (Main Spindle): 4
Long. Live Tool Positions (Main Spindle): 3
Long. Working Tool Positions (Sub Spindle): 4
Cross Working Tool Postions (Sub Spindle): 4
Long. Live Tool Positions (Sub Spindle): 3
Cross Working Live Tool Positions: 3
Cut-Off Tool Positions: 1
Intertech Xpress Processing CNC Control
Mitubishi Servo Drives and Motors
Collet Chucks Main/Sub
Flood Coolant System
