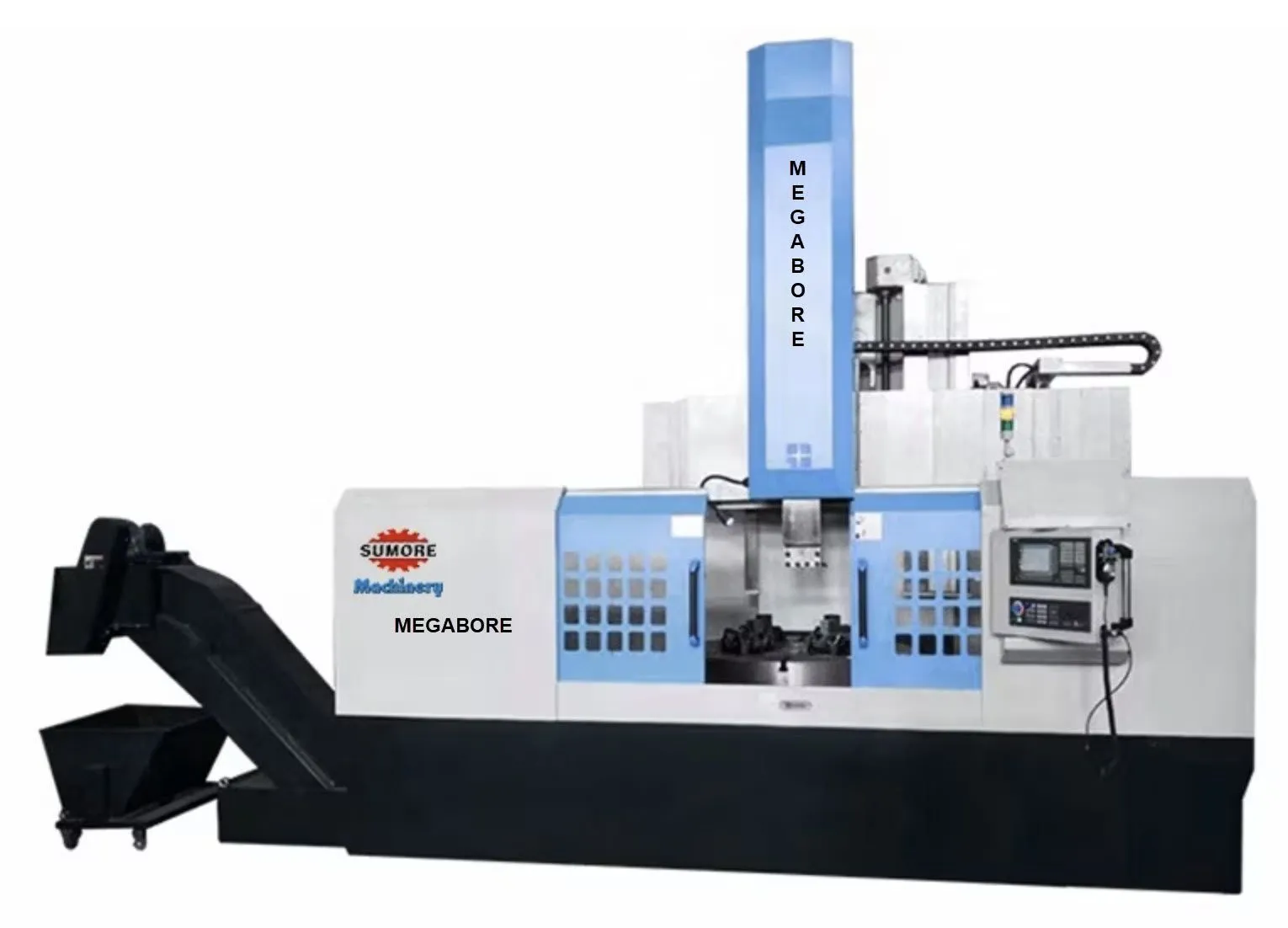

NEW Megabore BV 1600 1600 CNC
Overview
Description
The SP5116 single column vertical cnc lathe is designed for high-performance machining of large and heavy workpieces. Its configuration includes advanced mechanical and electrical components, ensuring strong rigidity and stability during operations. Available in manual and CNC configuration.
Robust Structure: The single column design enhances stability and rigidity, making it capable of withstanding significant cutting forces.
High Load Capacity: The worktable is engineered to support heavy tonnage loads, allowing for the machining of substantial workpieces without compromising safety or effectiveness.
Efficient Machining: The machine is built for high efficiency, enabling precise processing of complex shapes, including cylindrical surfaces, end faces, conical surfaces, and holes.
Versatile Applications: Suitable for a variety of industries, the vertical lathe can handle workpieces with large radial sizes and relatively smaller axial dimensions, making it ideal for specialized machining tasks.
Safety and Reliability: Equipped with advanced safety features and reliable components, the SP5116 ensures consistent performance while minimizing the risk of operational mishaps.
This vertical lathe is particularly useful for industries that require the processing of large and complex components, such as aerospace, automotive, and heavy machinery manufacturing. If you need more specific details about its capabilities or applications, feel free to ask!
Specifications
| Table Dia | 1,400 mm | 55.118" |
|---|---|---|
| Swing | 1,600 mm | 62.992" |
| Swing Options | Call for options | Call for options |
| Work Ht-U/R | 1,000 mm | 39.37" |
| Work Height Options | 1000,1200,1400,1600 | 1000,1200,1400,1600 |
| Power | 40.2 hp | 30 kW |
| RPM | 0 RPM | 0 RPM |
| Control | CNC (Options available) | CNC (Options available) |
| Dimensions | Overall size(LXWXH) 2662x2800x3550mm | Overall size(LXWXH) 2662x2800x3550mm |
| Weight | 12.7 tons | 12.7 tons |
Specification
SP5116
Table dia.
1400mm
Max. turning dia.
1600mm
Max. workpiece height
1000/1200/1400/1600mm
Max. workpiece weight
5t
Table speed range
5-160r/min
Table rotation speed step
16
Vertical toolpost feed range
0.8-86 r/min
Vertical side toolpost feed step
12
Horizontal travel of vertical toolpost
915mm
Vertical travel of vertical toolpost
800/1000mm
Horizontal travel of side toolpost
650mm
Vertical travel of side toolpost
1000mm
Crossam ram travel
850/1050/1250/1450mm
Tool bar section size(Lx W)
30x40mm
Main motor power
30kw
Feeding motor power
1.3/1.8kw
Net Weight
12.7t
Overall size(LXWXH)
2662x2800x3550mm
