12' X 1/4" WYSONG “1225” MECHANICAL POWER SQUARING SHEAR SYSTEM - PC800 SHEARWIZARD Control - Power Front Gauge- Power Back Gauge - Power Squaring Arm - Sheet Support
| Length of Blade | 144" | 3,657.6 mm |
| Hyd/Mech | 'Mech' | 'Mech' |
| Back Gauge | 36" | 914.4 mm |
| Power | 18 hp | 13.4 kW |
| SPM | 55 strokes/min. | 55 strokes/min. |
| Control | CNC (PC Control PC800 SHEARMASTER CNC Shear Control) | CNC (PC Control PC800 SHEARMASTER CNC Shear Control) |
| Dimensions | 220” x 64” | 220” x 64” |
| Weight | 25750 | 25750 |

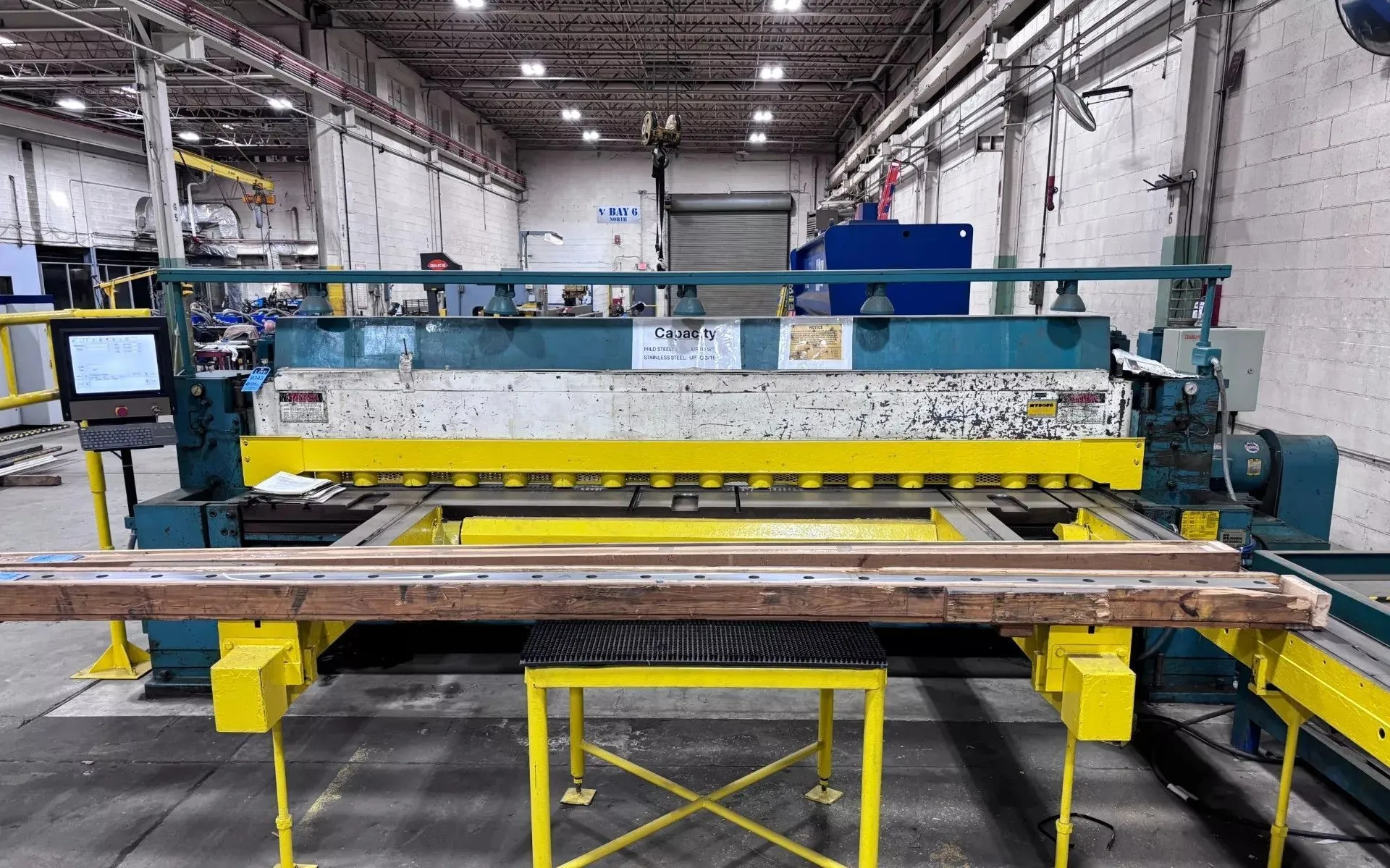

12' x 1/4 WYSONG CNC MECHANICAL POWER SQUARING SHEAR
Retrofit 2025, Serial No P28-472, Model 1225,
EQUIPPED WITH:
PC Control “PC800” SHEARWIZARD CNC Shear Control
36" CNC Controlled Front Operated Power Back Gauge
72" CNC Controlled Power Precision Squaring Arm
144" CNC Controlled Power Precision Front Gauging
(18) Spring-Activated Automatic Holddowns
Adjustable Rake
Wysong “PSS-12” Air Operated Sheet Support System
CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 12' x 1/4”
Shearing Capacity, Stainless Steel 12' x 7 GA
Length Between Housings 10'
Strokes Per Minute 55 SPM
Main Motor, Horsepower 18 HP
Electrical System 220-440/3/60
Floor Space w/o Gauges, L x D 220” x 64"
Overall Height 66"
Weight, Approximately 25700 LBS
NOTE: This Machine Was Retrofit With A PC Control
PC800 SHEARWIZARD CNC Control In 2025.
F.O.B. OUR WAREHOUSE
