14' x 3/8" ATLANTIC “HDS3/8.14” HYDRAULIC POWER SQUARING SHEAR - Front Operated Power Back Gauge - (2) Squaring Arms - (2) Front Supports - Roller Transfers In Table - No Pit Required
| Length of Blade | 171" | 4,343.4 mm |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Back Gauge | 40" | 1,016 mm |
| Power | 25 hp | 18.6 kW |
| SPM | 10 strokes/min. | 10 strokes/min. |
| Dimensions | 216” x 83” x 99.5” | 216” x 83” x 99.5” |
| Weight | 32000 LBS | 32000 LBS |

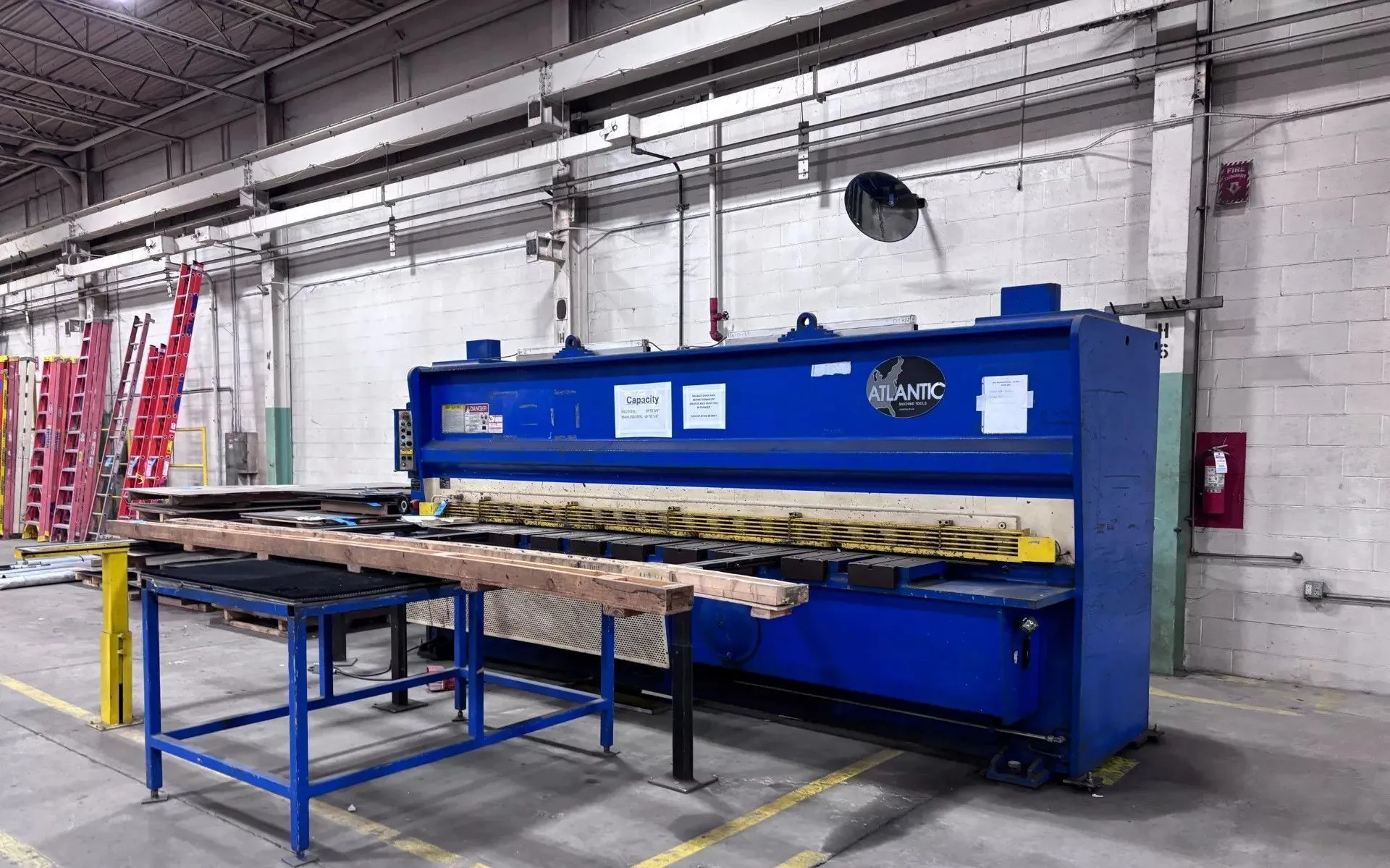

14' x 3/8" ATLANTIC HYDRAULIC POWER SQUARING SHEAR
Serial No 68637, Model HDS3/8.14,
EQUIPPED WITH:
Front Operated Power Back Gauge
(2) Squaring Arms
(2) Front Supports
No Pit Required
CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 14' x 3/6"
Shearing Capacity, Stainless 14' x 1/4"
Shearing Capacity, Aluminum 14’ x 1/2”
Cutting Length, Maximum 171"
Strokes Per Minute, Range 6 to 10 SPM
Motor Horsepower 25 HP
Electrical System 220-440/3/60
Overall Dimensions, L x W 216” x 83”
Overall Height 99.5”
Weight, Approximately 32000 LBS
F.O.B. OUR WAREHOUSE
