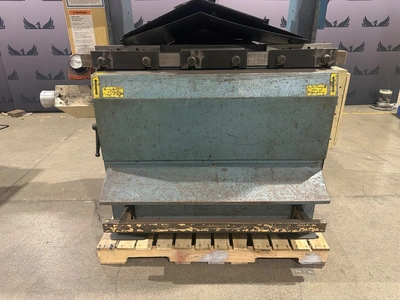

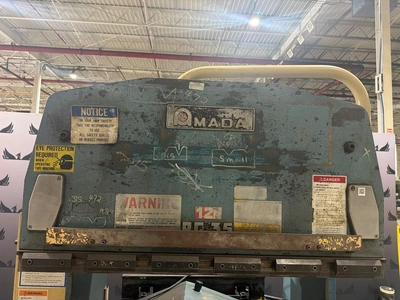

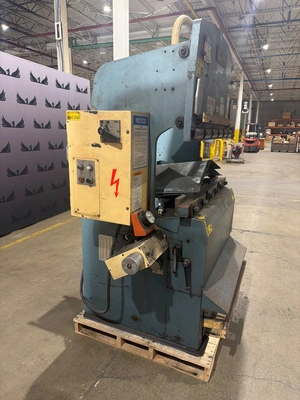

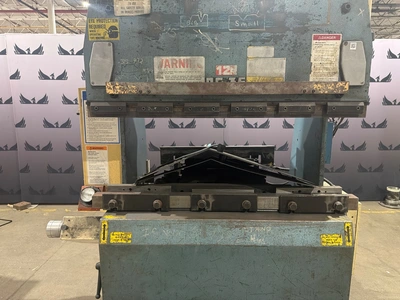

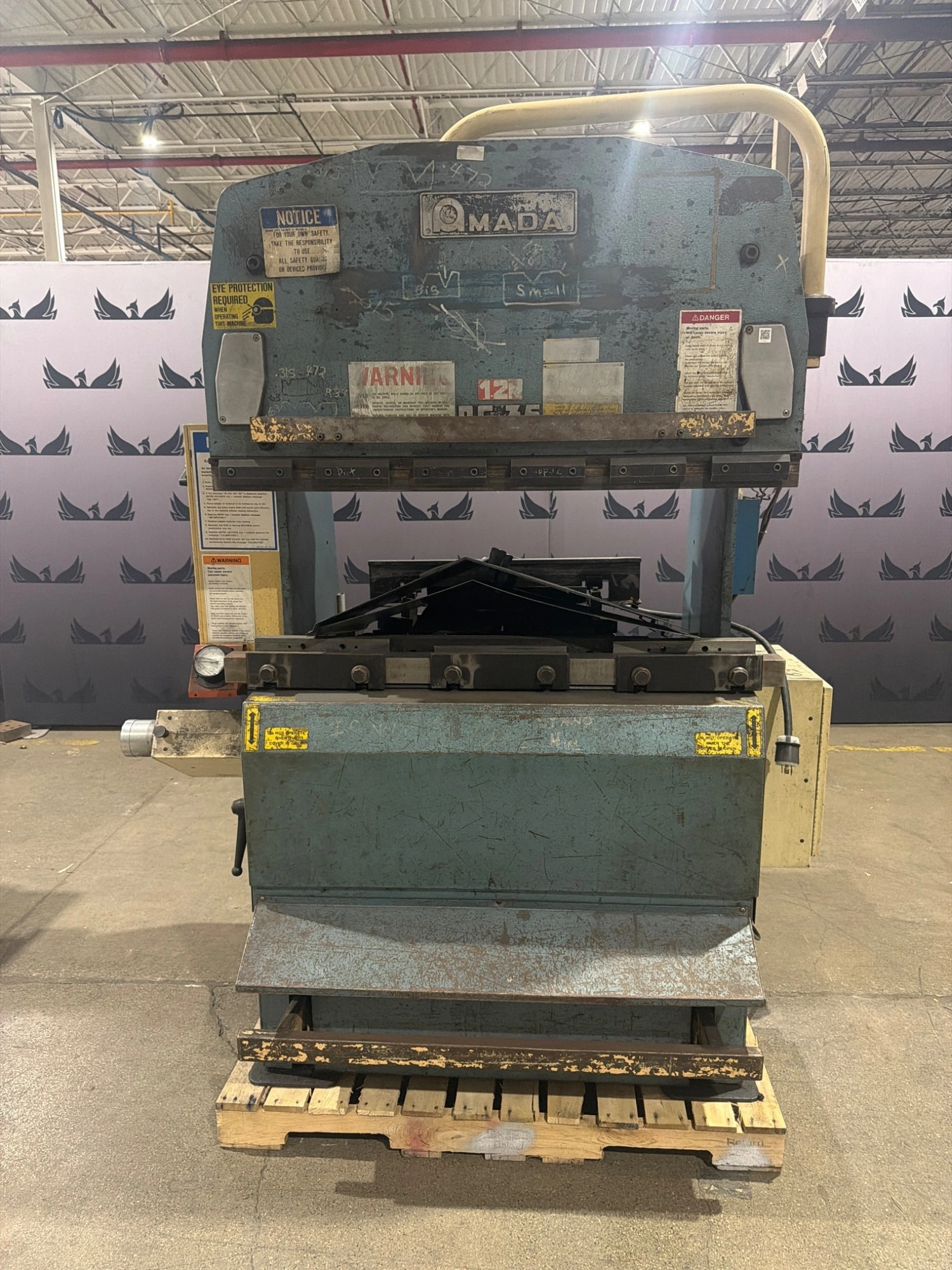

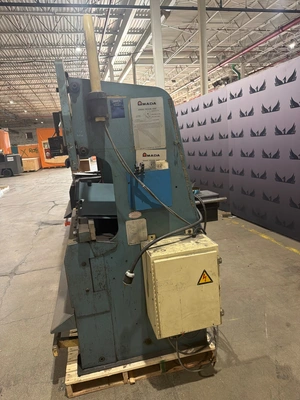

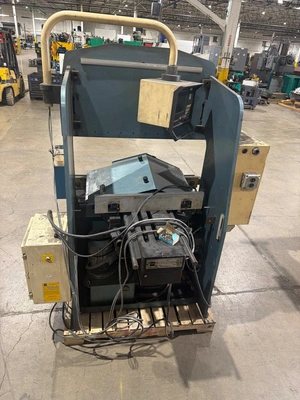

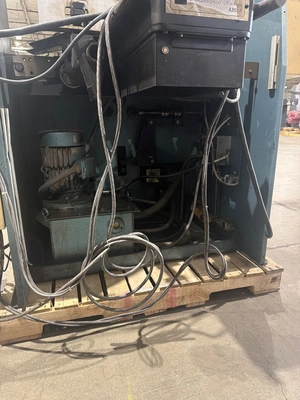

This listing is for a USED AMADA RG‑35S CNC press brake rated at 35 tons. The machine is equipped with a Hurco Autobend 5C CNC control, providing programmable bending and CNC backgauge control for repeatable sheet metal forming. The RG‑series is commonly used in fabrication shops and manufacturing environments for producing brackets, panels, and formed components where accuracy and consistency are required.
| Tonnage | 38.5 T | 34.927 t |
| Type | HYD | HYD |
| Overall Length | 49.3" | 1.3 m |
| Between Housings | 40.2" | 1 m |
| Stroke | 3.94" | 100.08 mm |
| # Axis | 3 | 3 |
| Dimensions | 60x72x88 | 60x72x88 |
| Weight | 3500 LBS | 3500 LBS |

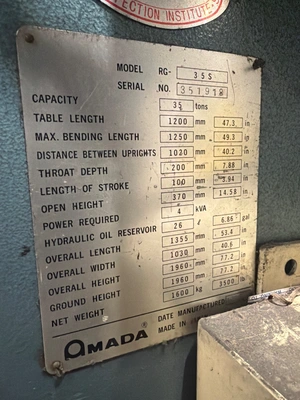

Manufacturer: AMADA
Model: RG-35S
Condition: USED
Machine Type: CNC hydraulic press brake
Rated Capacity: 35 tons

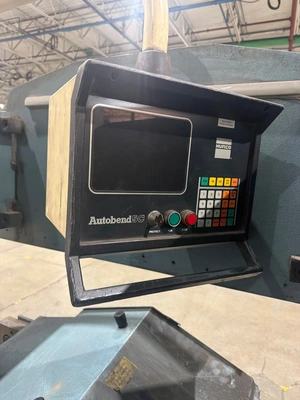

CNC Control: Hurco Autobend 5C
Backgauge: CNC-controlled
Table Length: 1200 mm (47.3 in)
Max Bending Length: 1250 mm (49.3 in)
Distance Between Uprights: 1020 mm (40.2 in)
Throat Depth: 200 mm (7.88 in)
Stroke Length: 100 mm (3.94 in)
Open Height: 370 mm (14.58 in)
Power Required: 4 kVA
Hydraulic Oil Capacity: 26 L (6.86 gal)
Overall Length: 1355 mm (53.4 in)
Overall Width: 1030 mm (40.6 in)
Overall Height: 1960 mm (77.2 in)
Net Weight: 1600 kg (3500 lb)
Mounting: Floor-standing
Country of Manufacture: Japan
YOM: n/a
