USED 2002 Ingersoll Rand TMS 0140
Overview
Description
This listing is for a USED Ingersoll Rand TMS 0140 refrigerated air dryer. This dryer is designed for compressed air systems to remove moisture and reduce dew point, helping protect downstream equipment and processes. It is commonly installed in industrial compressed air applications supporting manufacturing equipment, automation systems, and pneumatic tools.
Specifications
| Dimensions | 48 X 40 X 47 | 48 X 40 X 47 |
|---|---|---|
| Weight | 418 LBS | 418 LBS |

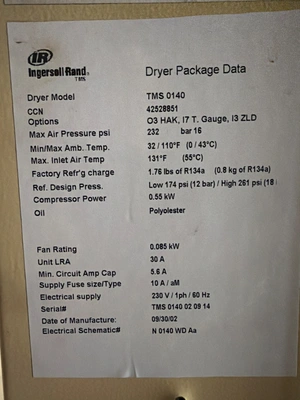

Manufacturer: Ingersoll Rand
Model: TMS 0140
Condition: USED
Function: Refrigerated compressed air dryer
Max Air Pressure: 232 psi (16 bar)
Min / Max Ambient Temperature: 32 °F to 110 °F (0 °C to 43 °C)
Max Inlet Air Temperature: 131 °F (55 °C)
Refrigerant Type: R134a
Refrigerant Charge: 1.76 lb (0.8 kg)
Electrical Supply: 230 V, 1 Phase, 60 Hz
Fan Power: 0.085 kW
Compressor Power: 0.55 kW
Design Pressure: Low 174 psi / High 261 psi
Country of Manufacture: n/a
Date of Manufacture: 09/30/2002
